ASSEMBLY INSTRUCTION
Item#:5107-70465/70467/70451/70452 4pcs Wall Group
Caution: Please read all instructions carefully before starting the assembly process.
This unit is heavy and can best be assembled with the help of at least five persons.
Assembly steps:
Left End Panel
Top Back Rail

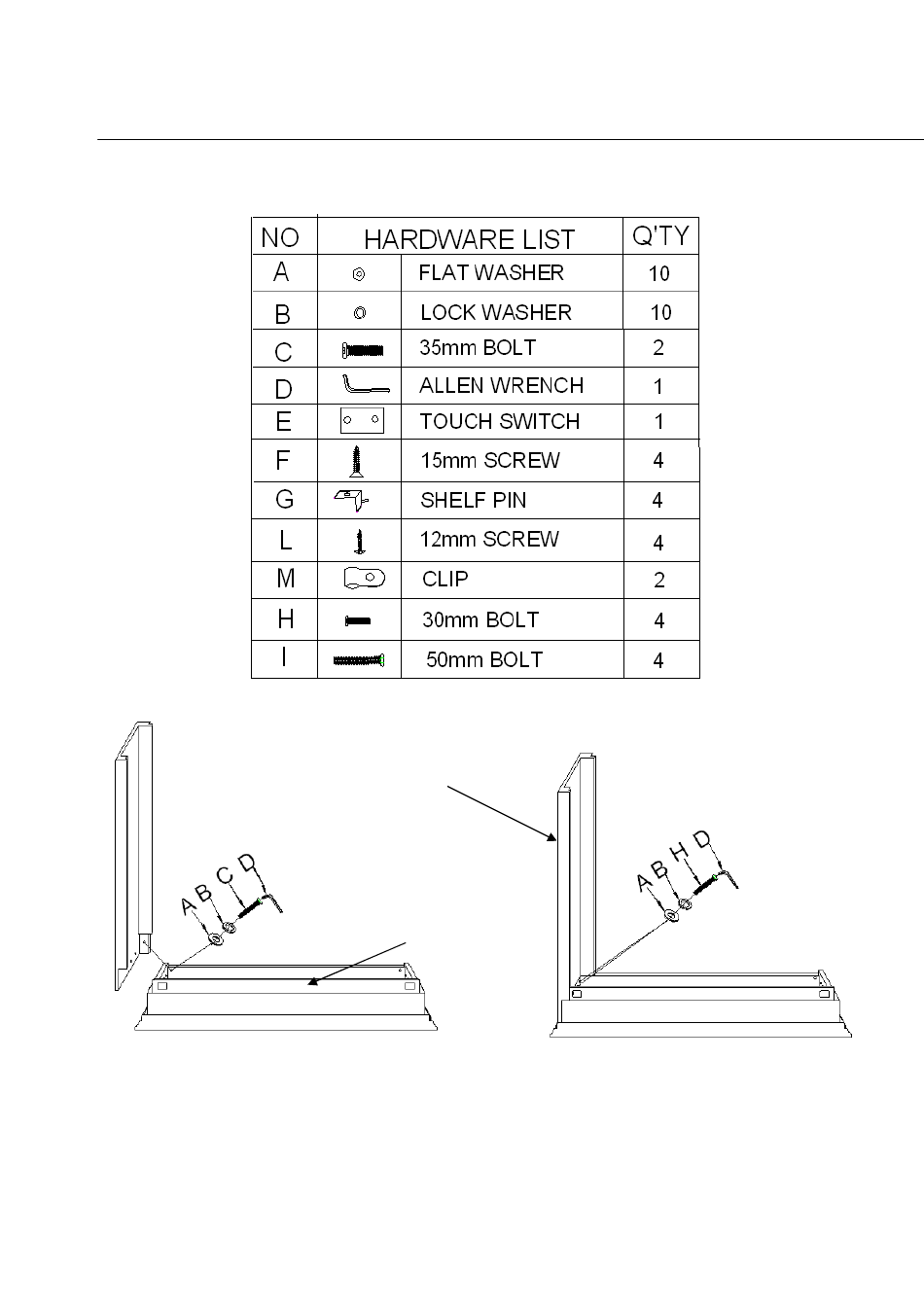

Diagram 1
1. Place the top of Hutch upside down on a soft surface to prevent from scratching. Attach
left end panel to the top of Hutch and screw with 1 flat washer (A), 1 lock washer (B), 1 bolt
(C) in the front and 2 flat washers (A), 2 lock washers (B), 2 bolts (H) in the center. Tighten
all bolts securely with allen wrench (D). (See diagram 1)
1/5
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5107-70465
Summary of Contents for Hooker Furniture 5107-70465
- Page 1 ASSEMBLY INSTRUCTION Item#:5107-70465/70467/70451/70452 4pcs Wall Group Caution: Please read all instructions carefully before starting the assembly process. This unit is heavy and can best be assembled with the help of at least five persons. Assembly steps: Left End Panel Top Back Rail Diagram 1 1.
- Page 2 Bottom Back Rail Left End Panel Top Back Rail Back Panel Center Rail Back Panel Diagram 2 2. Insert one back panel, center rail and the other back panel into the groove line of top back rail as showed in diagram 2, then attach bottom back rail onto the back panels. (Actually these two back panels are the same) Bottom Back Rail Right End Panel...
- Page 3 3. Attach right end panel on the top of Hutch with 2 flat washers (A), 2 lock washers (B), 2 bolts (H) in the center and with 1 flat washer (A), 1 lock washer (B), 1 bolt (C) in the front. Tighten all bolts securely with allen wrench (D).
- Page 4 Diagram 6 6. Insert 2pcs of shelf pins (G) into the desired holes on one side of end panel. Place one side of shelf on them and hold another side of shelf steady and higher than the desired holes on the other side of end panel, Then, insert another 2pcs of shelf pins (G) into the other side of end panel, Now rest whole shelf on shelf pins with care and secure the shelf by using 4pcs of screws (F).
- Page 5 Diagram 8 8. Put left pier, hutch & console, and right pier together in desired location. (See Diagram 8) Steps to exchange wood panel and glass panel. Remove rubber gasket around center two glass doors on the Entertainment Console. Replace glass panels with wood panels. Insert rubber gasket to support the panels. Instructions for Lighting Assembly Make sure you turn off the plug on back of hutch, then connect the wire before you put the wall units against the wall.
