Hooker Furniture 5960-10563-MULTI Disassembly Instruction

Hedwig executive desk

DISASSEMBLY INSTRUCTION

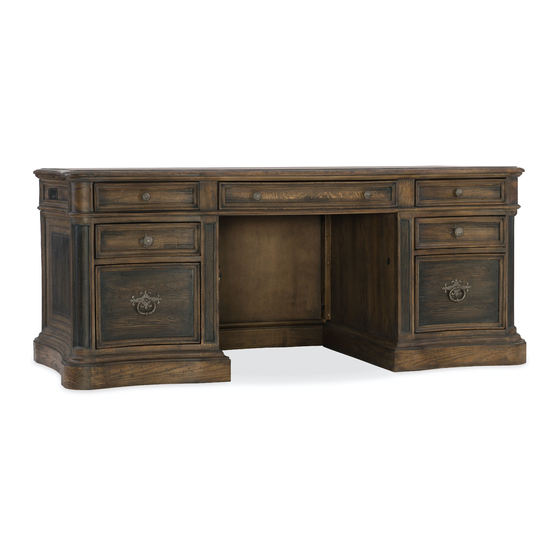

Item#: 5960-10563-MULTI St. Hedwig Executive Desk

Caution: Please read all instructions carefully before starting the

This unit is heavy and can best be with the help of two or more people.

For easier delivery, the desk can be taken apart as shown below.

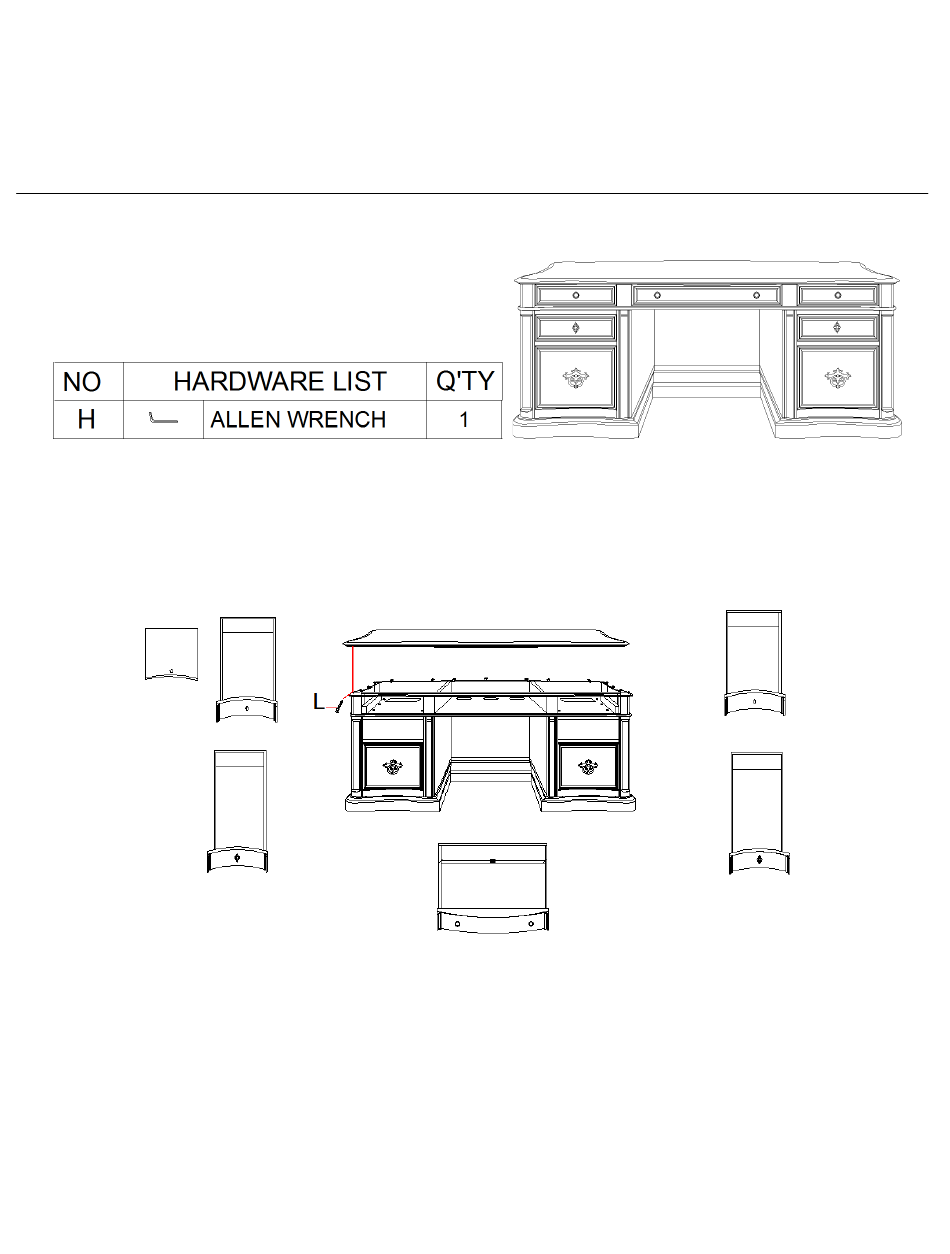

Step 1: Take out all three top drawers and second drawers on both sides, loosen all screws (L) on

L-shaped metal plates, and remove top panel from desk(see Diagram 1).

Step 2. Loosen 2 bolts (I), 2 lock washers (J), 2 flat washers (K) at wood cleats under left bottom panel

through the holes by using allen wrench (H), and then repeat the steps at right side(See

Diagram 2, arrow indicated).

Diagram 1

1/2

disassembled

process.

Table of Contents

Need help?

Do you have a question about the 5960-10563-MULTI and is the answer not in the manual?

Page 1 DISASSEMBLY INSTRUCTION Item#: 5960-10563-MULTI St. Hedwig Executive Desk disassembled Caution: Please read all instructions carefully before starting the process. This unit is heavy and can best be with the help of two or more people. For easier delivery, the desk can be taken apart as shown below.
Page 2 Diagram 2 Step 3: Loosen the remaining 4 bolts (I), 4 lock washers (J), 4 flat washers (K) attached at wood cleats under left base by using allen wrench (H) from the bottom, repeat the steps at right base, and loosen all screws (L) under back edged of top section, then take off the top section(C) (see Diagram 3).
