ASSEMBLY INSTRUCTION

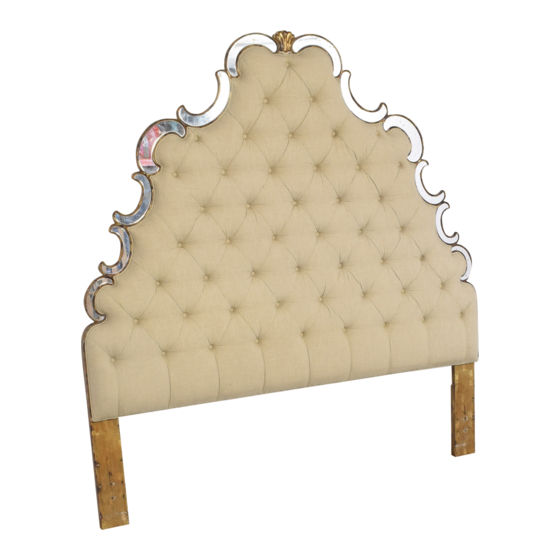

ITEM# 3016-90851 5/0 Tufted Headboard-Bling
Caution: Please make sure you have all the parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.

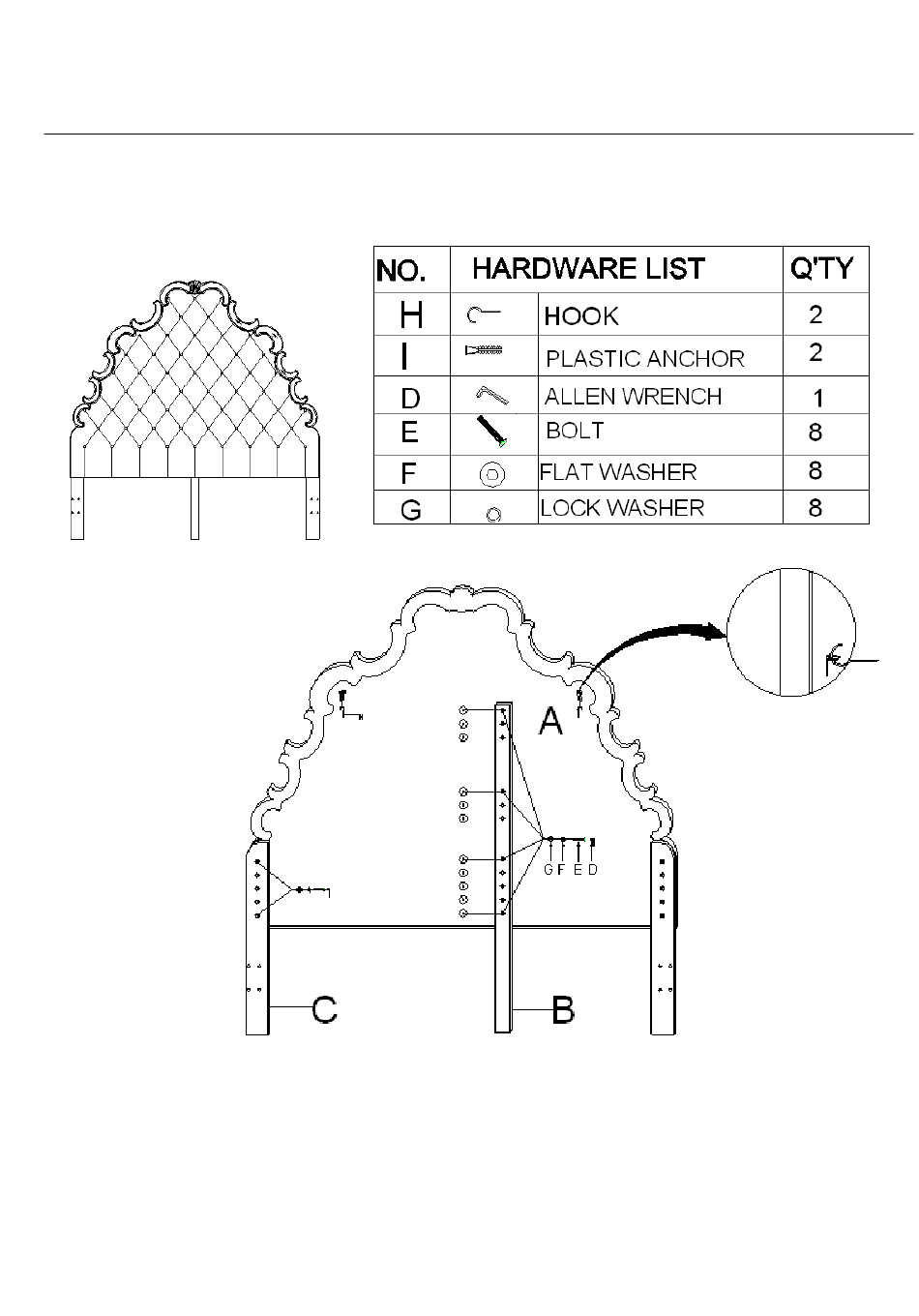

Diagram 1
Assembly steps:
1. Choose the designed height you want on headboard.
2. Attach side posts (C) to each side of headboard(A) back using bolts (E), lock washers (G) and flat
washers (F). Secure bolt (E) by Allen wrench (D) as shown in diagram 1.
1/2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 3016-90851
Summary of Contents for Hooker Furniture 3016-90851
- Page 1 ASSEMBLY INSTRUCTION ITEM# 3016-90851 5/0 Tufted Headboard-Bling Caution: Please make sure you have all the parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more people. Diagram 1 Assembly steps: 1.
- Page 2 3. Attach middle post (B) to center of headboard(A) back using bolts (E), lock washers (G) and flat washers (F). Secure bolt (E) by Allen wrench (D) as shown in diagram 1. 4. Adjust the headboard height by the reversed way as above loosing posts, adjust them and then secure them by the same way as above.
Need help?
Do you have a question about the 3016-90851 and is the answer not in the manual?
Questions and answers

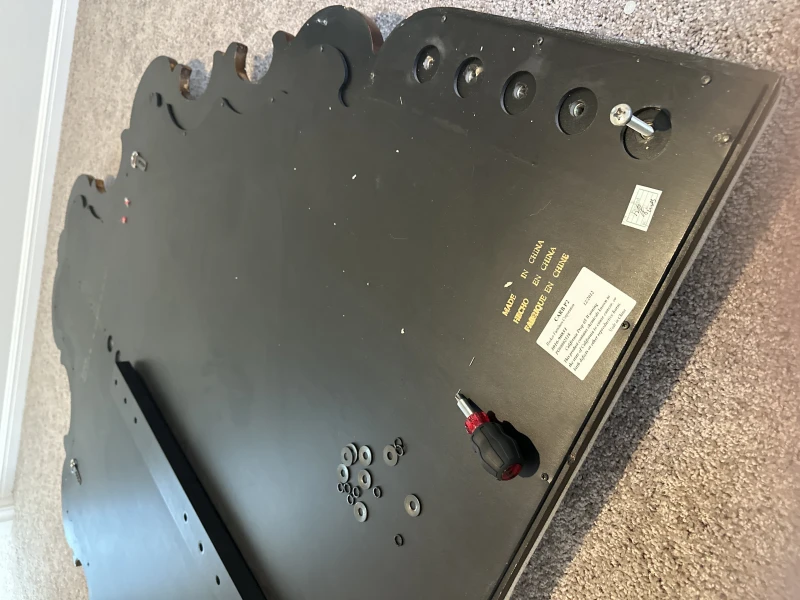

What diameter and thread pitch and length are the screws that are used to assemble this product?
