Hooker Furniture KINSEY 5066-8016 Assembly Instruction

Hooker Furniture KINSEY 5066-8016 Assembly Instruction

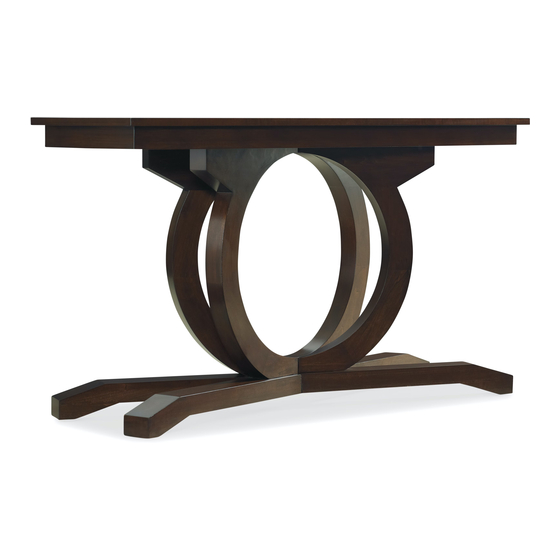

Sofa table

Advertisement

Quick Links

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts
which may have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.
HARDWARE PACK
NO DRAWING DESCRIPTION
a
b
c
d
e
PARTS INCLUDE
ASSEMBLY INSTRUCTION
5066-80161 KINSEY SOFA TABLE
Q'ty
SHORT BOLT
LONG BOLT
LOCK WASHER
FLAT WASHER
WRENCH
14
4
18
18
1
Before assembly:
Please discharge all parts from the carton,
make sure all parts and hardware listed
being ready.
Please place all parts and hardware on
soft clean surface to prevent parts
damaged during assembly.
STEP1:
Use [e] to secure the KD legs [B+C+D]
with [a]+[c]+[d] at the point place
PAGE 1 OF 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the KINSEY 5066-8016 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hooker Furniture KINSEY 5066-8016

  • Page 1 ASSEMBLY INSTRUCTION 5066-80161 KINSEY SOFA TABLE Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loose during shipment. Read all instruction and study the drawing carefully before starting the assembly process. HARDWARE PACK NO DRAWING DESCRIPTION Q'ty...
  • Page 2 ASSEMBLY INSTRUCTION 5066-80161 KINSEY SOFA TABLE Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loose during shipment. Read all instruction and study the drawing carefully before starting the assembly process. STEP2: Use [e] to secure the KD legs [B+C+D] with [E+F], screw [b]+[c]+[d] at point...
