ITEM# 1620-90351-LTBR 5/0 Panel Headboard
1620-90352-LTBR 5/0 Panel Footboard
1620-90353-LTBR 5/0-6/6 Panel Rails
Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Assembly instruction for Headboard（A） :
Please note the height of the HB is adjustable. It can be adjusted to either 59" or 67" high.
1. Place the headboard panel face down on a soft surface to prevent it from scratching.
2. If you desire the overall height to be 59"H, stick the bottom headboard post (Y) into the headboard
panel(X) to the very end and measure the open space from bottom of post to bottom of headboard
panel to be 17" high. Then, align holes at back between each other and secure by using bolts(S),
lock washers (O), flat washers (J) and tighten them securely with Allen Wrench (M).

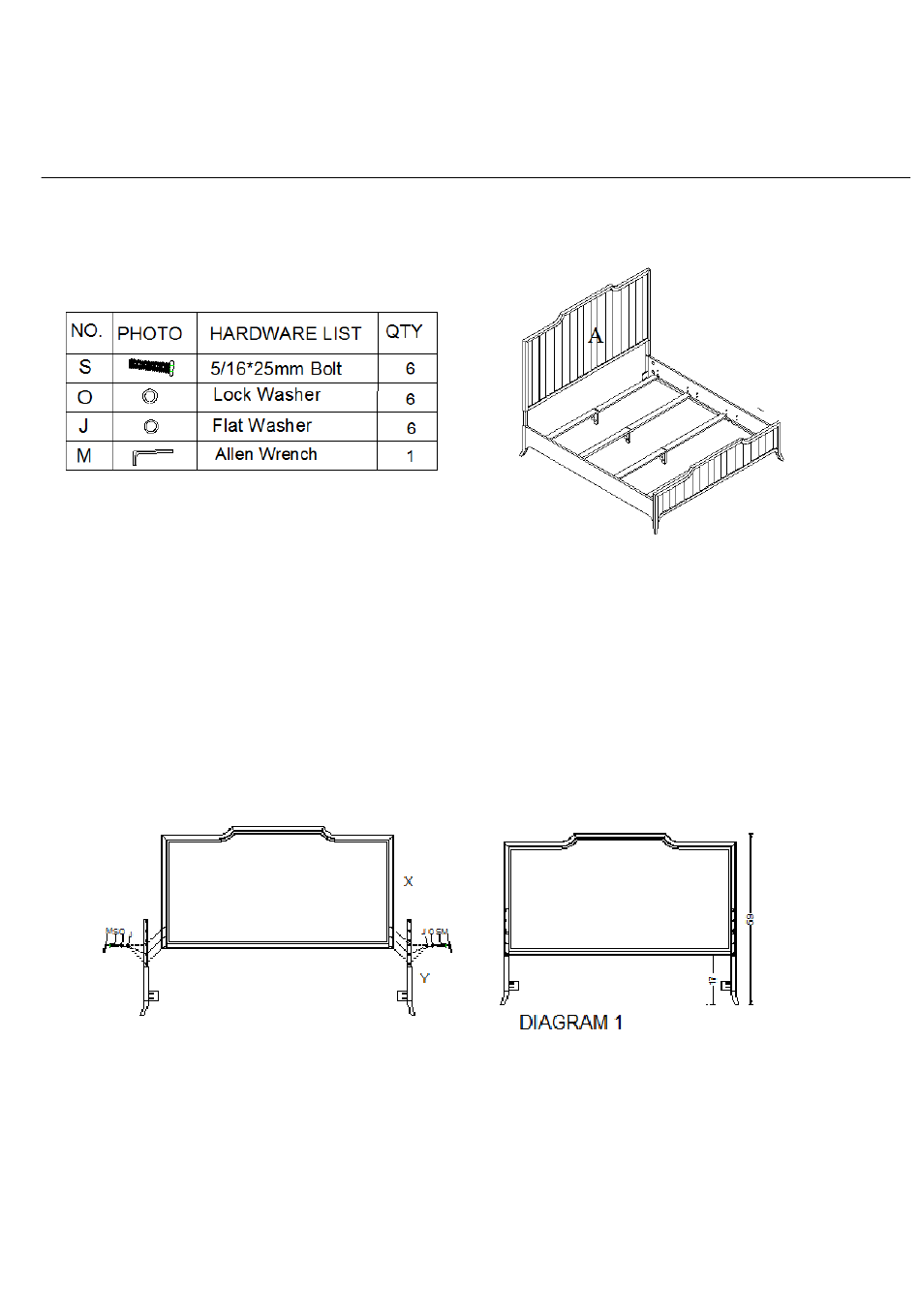

see DIAGRAM 1
3. If you want 67"H, please adjust the bottom post (Y) and make sure the open space to be 25"high.
Repeat the steps of securing bolts as above . see DIAGRAM 2.
ASSEMBLY INSTRUCTION
1/4
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5/0 Panel Headboard 1620-90351-LTBR
Summary of Contents for Hooker Furniture 5/0 Panel Headboard 1620-90351-LTBR
- Page 1 ASSEMBLY INSTRUCTION ITEM# 1620-90351-LTBR 5/0 Panel Headboard 1620-90352-LTBR 5/0 Panel Footboard 1620-90353-LTBR 5/0-6/6 Panel Rails Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people. Assembly instruction for Headboard（A）...
- Page 2 Assembly instruction for whole bed : Diagram 6 Diagram 4 Diagram 5 Diagram 3...
- Page 3 1. Please note the hardware bag to assemble side rail to HB&FB is in the box of side rails. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 4 You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the following steps. 1. Unscrew bolts on center supports (L) with allen wrench (R). 2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with 2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise direction.
