Hooker Furniture 5072-55462 Assembly Instruction

Entertainment console base 78 inch; entertainment console hutch

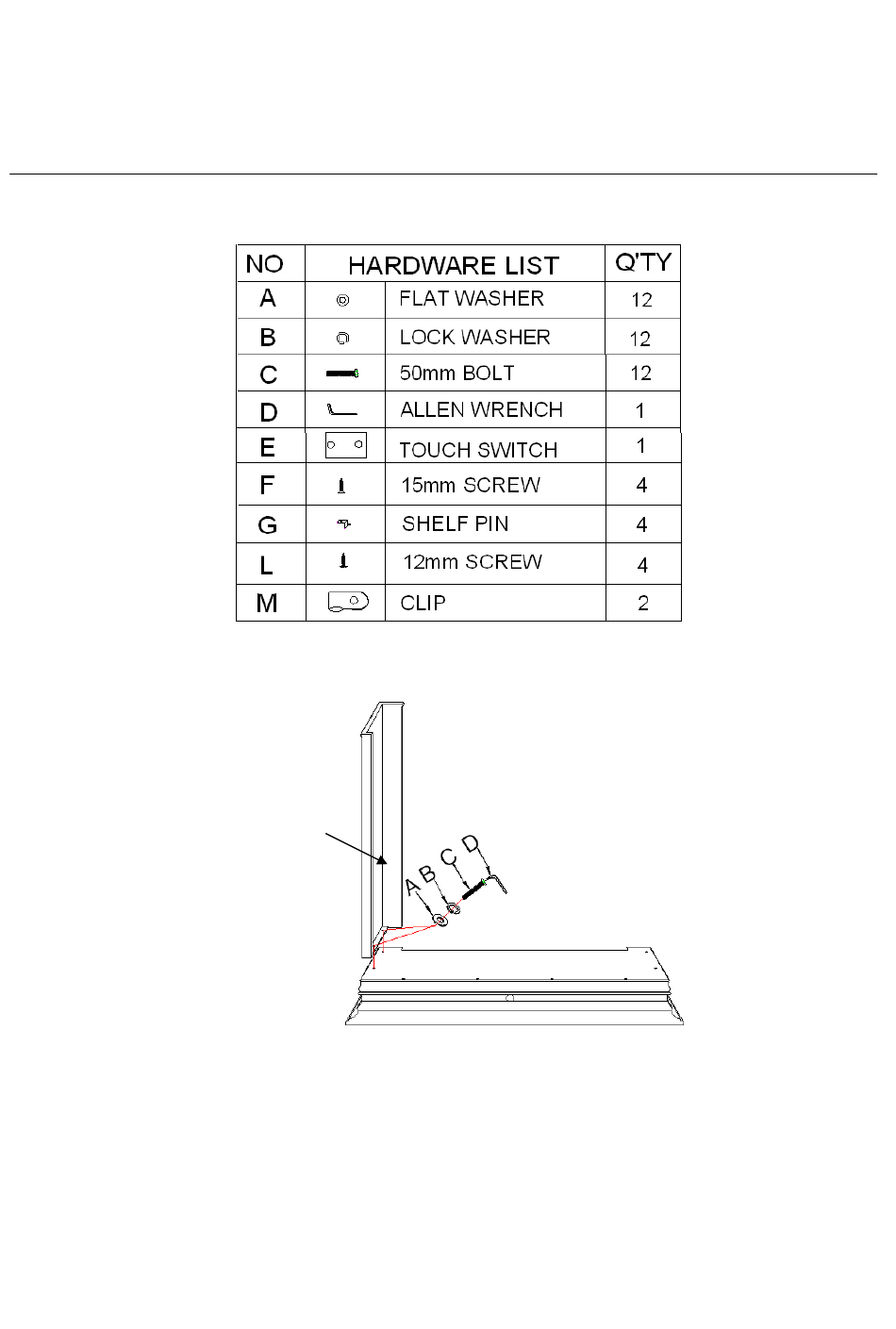

** Please make sure you have all parts indicated below prior to assembly.

This unit is heavy and can best be assembled with the help of two or more persons

Assembly Steps:

1. Place the top of Hutch upside down on a soft surface to prevent from scratching. Attach left

end panel on top of Hutch with 2 flat washers (A), 2 lock washers (B), 2 bolts (C), tighten all

bolts securely with allen wrench (D). (See diagram 1)

ASSEMBLY INSTRUCTION

Item#: 5072-55462 Entertainment Console Base 78 inch

5072-55562 Entertainment Console Hutch

Diagram 1

1/3

Table of Contents

Do you have a question about the 5072-55462 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 5072-55462 Entertainment Console Base 78 inch 5072-55562 Entertainment Console Hutch ** Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons...
Page 2 Top Back Rail Back Panel Center Rail Back Panel Diagram 2 2. Attach top back rail on top of Hutch with 4 flat washers (A), 4 lock washers (B), 4 bolts (C) in the center tighten all bolts securely with allen wrench (D). Insert one back panel, center rail and the other back panel into the groove line of top back rail as showed in diagram 2, the two back panels are exact same.
Page 3 Diagram 4 Diagram 5 4. Place the Hutch upright and face front. Insert 2pcs of shelf pins (G) into the desired holes on one side of end panel. Place one side of shelf on them and hold another side of shelf steady and higher than the desired holes on the other side of end panel, then insert another 2pcs of shelf pins (G) into the other side of end panel, now rest whole shelf on shelf pins with care and secure the shelf by using 4pcs of screws (F).

5072-55562
