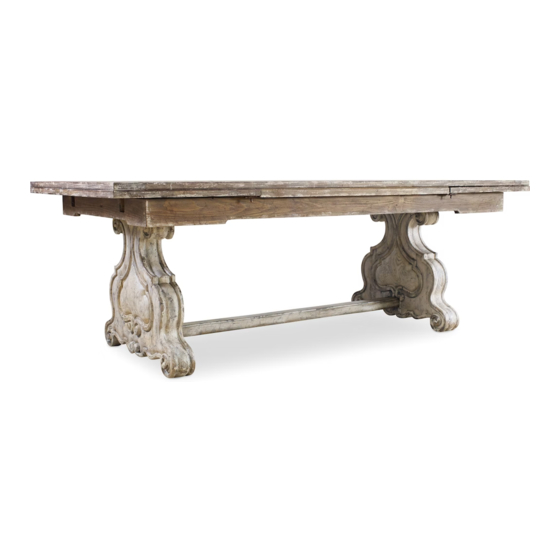

Item#: 5350-75007 Rectangle Trestle Dining Table Base
** Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.

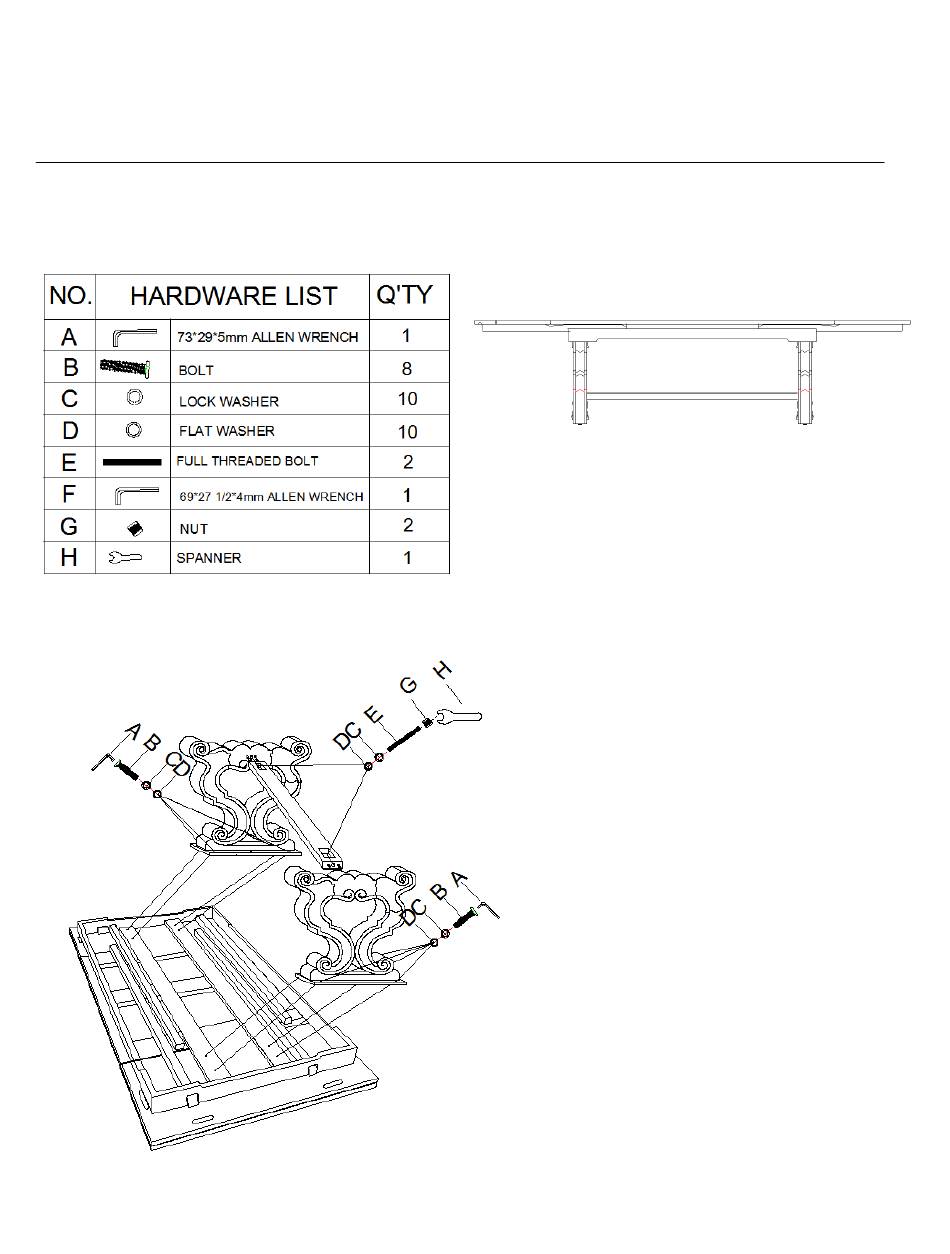

Diagram 1
ASSEMBLY INSTRUCTION
5350-75008 Rectangle Trestle Dining Table Top w/2-22in Leaves
Assembly Steps:
1. Place the dining table top upside
down on a soft surface to prevent it
from scratching.
2. Assemble bases to the top, using flat
washers(D), lock washers(C) and
bolts(B), secure by turning with allen
wrench(A) in a clockwise direction.
Please do not tighten up bolts in this
step. (See diagram 1).
Diagram 2
3. Well insert stretcher into the holes of
bases, then using flat washers(D),
lock washers(C) and full threaded
bolts(E), secure by turning nuts(G)
with spanner(H) in a clockwise
direction. Please do not tighten up full
threaded bolts in this step. (See
diagram 2).
4. Adjust the bases and stretcher to be
at right place and then secure all bolts
(B) and nuts(G) tightly now.
5. Turn the dining table upright.
1/2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5350-75007
Summary of Contents for Hooker Furniture 5350-75007
- Page 1 ASSEMBLY INSTRUCTION Item#: 5350-75007 Rectangle Trestle Dining Table Base 5350-75008 Rectangle Trestle Dining Table Top w/2-22in Leaves ** Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more people.
- Page 2 Instruction for the leaves: 1. Pull out the leaves as the arrow direction shown in diagram 3. 2. Lift the leaves up and make them 1/2” Diagram 3 higher than the center top.(See diagram 4) 3. Push and lay down the leaves as shown in diagram 5.
