Hooker Furniture 5070-10563 Disassembly Instruction

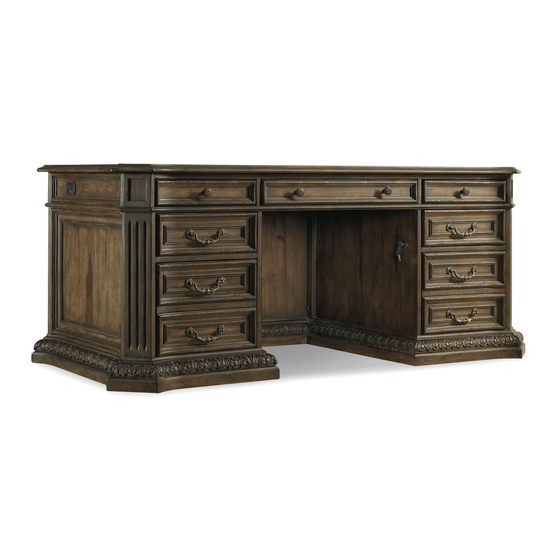

Executive desk

Caution: Please read all instructions carefully before starting the removal process.

This unit is heavy and can best be assembled with the help of two or more persons.

For easier delivery, the desk can be taken apart as shown below.

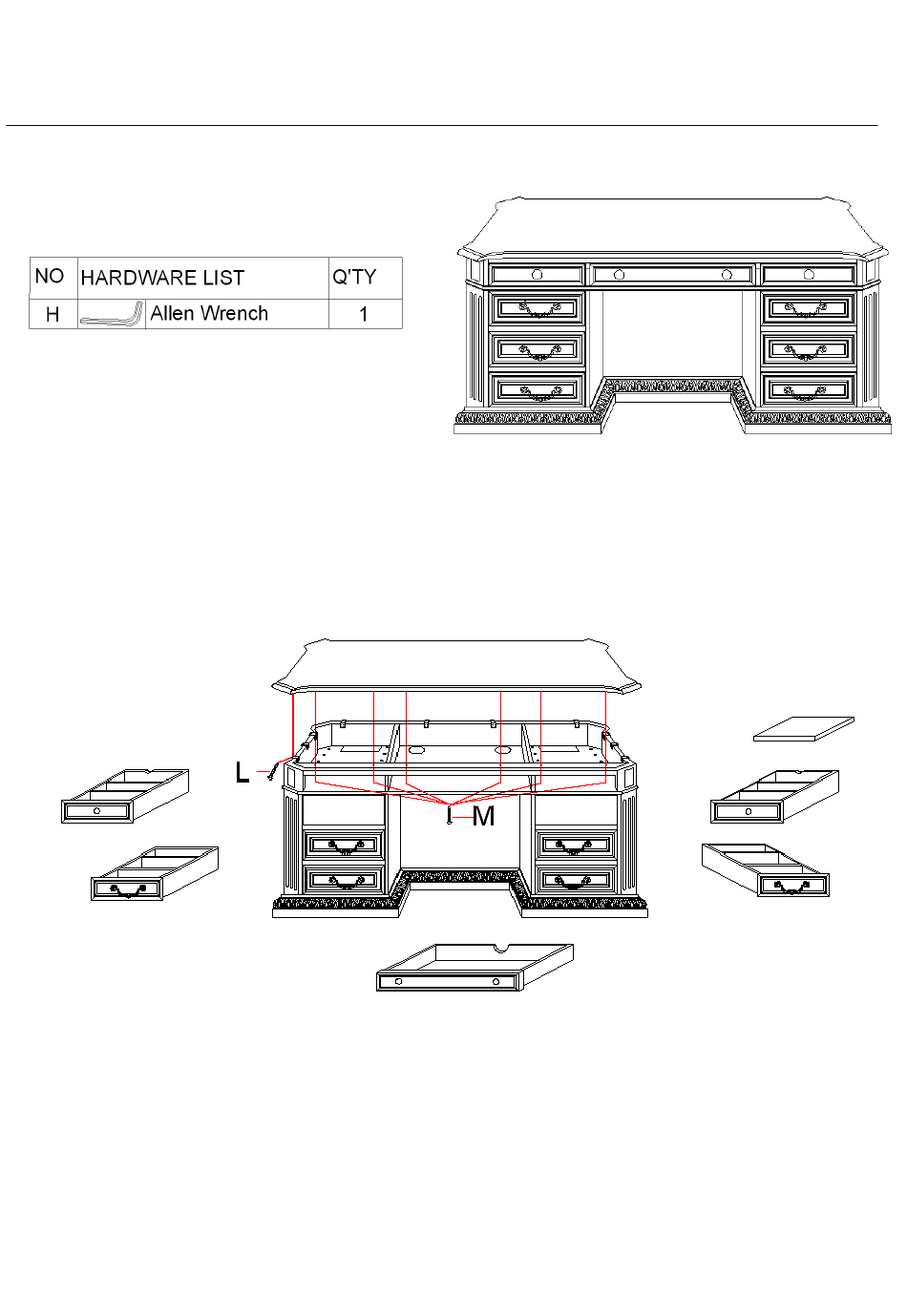

Step 1: Take out all three top drawers and second drawers on both sides, loosen all screws (L) on

L-shaped metal plates and screws (M) under the front edge of top panel, and remove top

panel from desk. (see Diagram 1)

Step 2. Loosen two bolts (I), lock washers (J), flat washers (K) at wood cleats under left bottom panel

through the holes by using allen wrench (H), and then repeat the steps at right side. (See

diagram 2, arrow indicated)

DISASSEMBLY INSTRUCTION

Item#: 5070-10563 EXECUTIVE DESK

Diagram 1

1/2

Table of Contents

Need help?

Do you have a question about the 5070-10563 and is the answer not in the manual?

Page 1 DISASSEMBLY INSTRUCTION Item#: 5070-10563 EXECUTIVE DESK Caution: Please read all instructions carefully before starting the removal process. This unit is heavy and can best be assembled with the help of two or more persons. For easier delivery, the desk can be taken apart as shown below.
Page 2 Diagram 2 Step 3: Loosen the remaining 4 bolts (I), lock washers (J), flat washers (K) attached at wood cleats under left bottom panel by using allen wrench (H) from the bottom, and then repeat the steps at right base, then take off the top section(C).(see Diagram 3). Diagram 3 Step 4: loosen four bolts (I), lock washers (J), flat washers (K) attached the back panel (D) to the desk with allen wrench (H) and separate back panel (D) by pulling it upright.
