ASSEMBLY INSTRUCTION

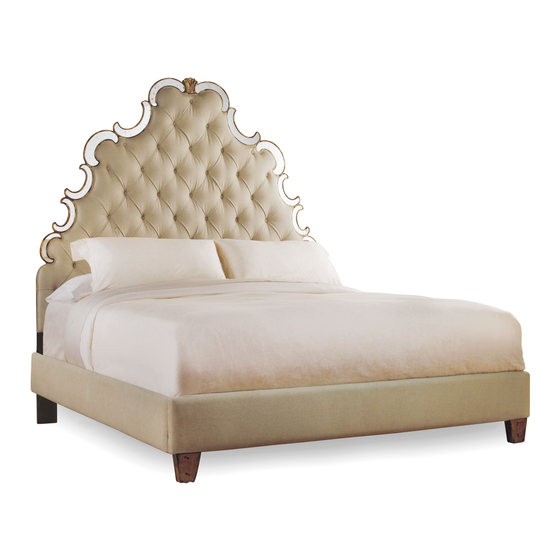

ITEM# 3016-90866 6/0-6/6 | 3016-90851Tufted Headboard-Bling (A)
3016-90862 6/0 | 3016-90952 Bling Footboard (B) & Rails(C)
Caution: Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.
SEE DIAGRAM 1
SEE DIAGRAM 2
SEE DIAGRAM 3

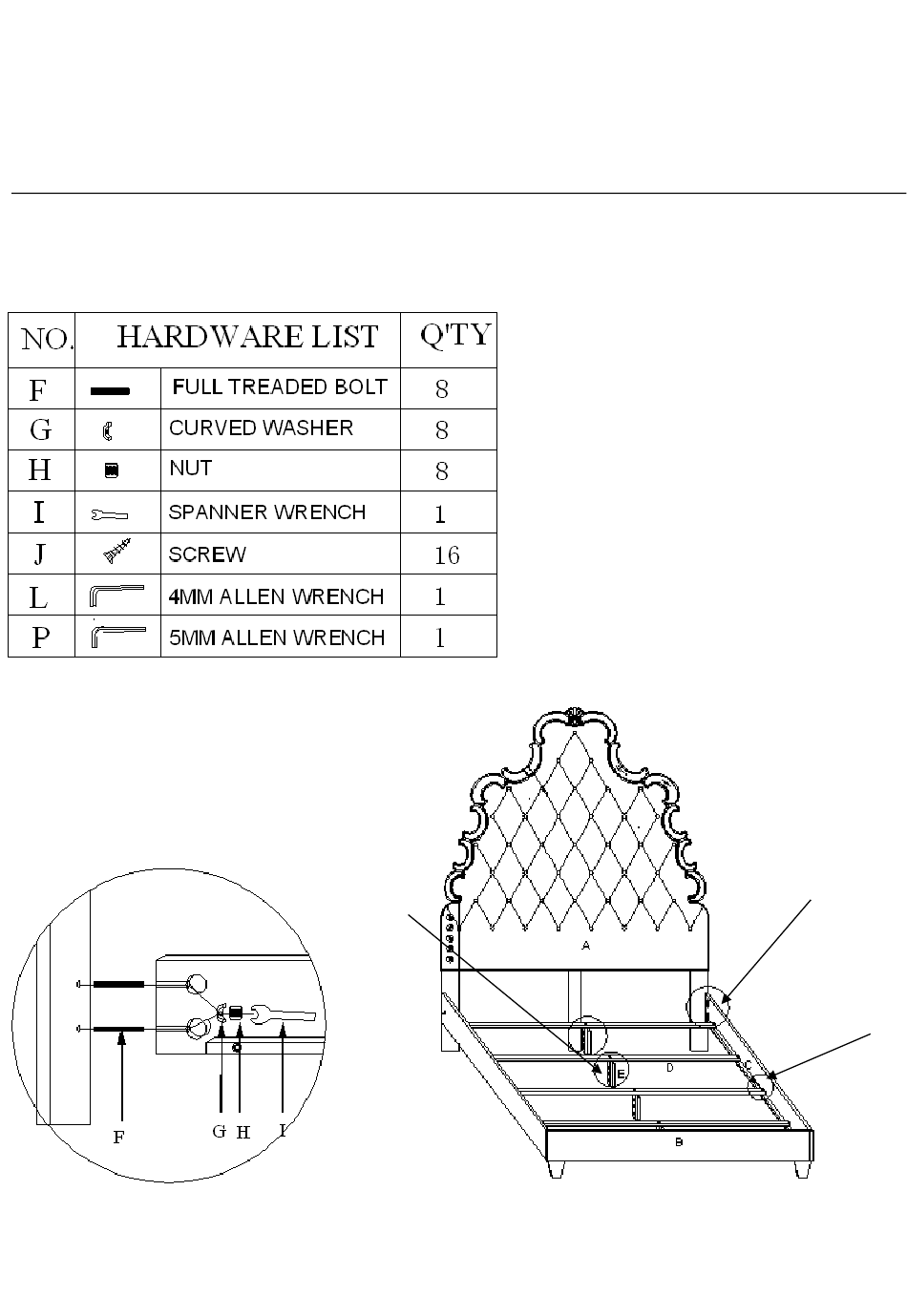

Diagram 1
1/3
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 3016-90866 6/0
Summary of Contents for Hooker Furniture 3016-90866 6/0
- Page 1 ASSEMBLY INSTRUCTION ITEM# 3016-90866 6/0-6/6 | 3016-90851Tufted Headboard-Bling (A) 3016-90862 6/0 | 3016-90952 Bling Footboard (B) & Rails(C) Caution: Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons.
- Page 2 Assembly steps: 1. Insert 2 bolts (F) into holes of each post on Headboard (A) and Footboard (B), attach the end of side rails (C) to the bolts (F) on posts using 2 curved washers (G) and 2 nuts (H), tighten nuts (H) securely with spanner wrench (I).
- Page 3 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4 1. remove the bolt (Q), lock washer (R) and flat washer (S) from the cleat by turning the bolt (Q) with allen wrench (P) in anti-clockwise direction, adjust the cleat to a desired position, and then secure the lock washer, flat washer, bolt in a clockwise direction by turning with allen wrench(P).
