INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS
SINGLE SEAT VALVE
INNOVA M / L
Original manual
10.241.30.01EN
(A) 2021/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INNOVA M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INOXPA INNOVA M

Summary of Contents for INOXPA INNOVA M

  • Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS SINGLE SEAT VALVE INNOVA M / L Original manual 10.241.30.01EN (A) 2021/12...

  • Page 4: Table Of Contents

    9.8. Dimensions of the INNOVA L single seat valve ......................28 9.9. Exploded drawing and parts list of the INNOVA M single seat valve ................29 9.10.Exploded drawing and parts list of the INNOVA L single seat valve ................30 INOXPA S.A.U.

  • Page 5: Generalities

    • risk to the environment due to the type of substances released. 2.3. WARRANTY Any warranty will be void immediately and lawfully and, additionally, INOXPA will be compensated for any civil liability claims submitted by third parties, in the following cases: •...

  • Page 6: Safety

    Electric hazard ATTENTION Important instruction to prevent damage to the equipment and its function 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and starting the valve. Contact INOXPA in case of doubt. 3.2.1. During installation Technical specifications chapter 9 should always be observed.

  • Page 7: General Information

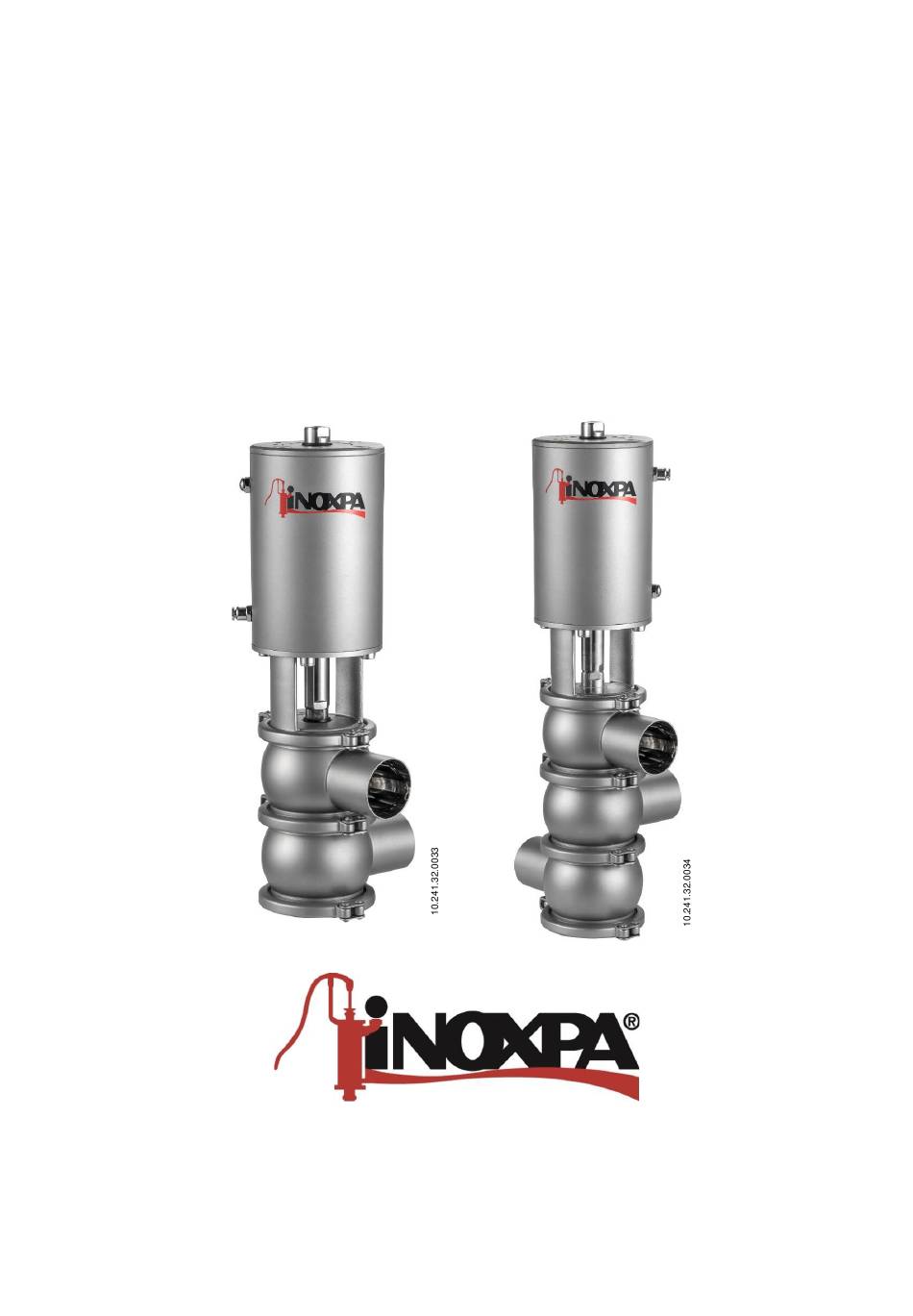

    4.1. DESCRIPTION The INNOVA M single seat valve is a shut-off valve that is used to open or close sections of a pipe. The INNOVA L single seat valve is a divert valve to divert the product with a diverging flow.

  • Page 8: Installation

    5. Installation 5.1. RECEPTION OF THE VALVE INOXPA is not liable for any deterioration of the material caused by its transport or unpacking. Visually check that the packaging has not been damaged. When receipt the valve, check to see whether all the parts listed on the delivery slip are present: •...
  • Page 9 Connection Welded Standard pipe Bodies configuration A, B, C, D 2 body J, P, R, S, V, W, X, Z 3 bodies Types Shut-off valve (reverse acting) Routing (diverging flow) Product family INNOVA Valve INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 10: Location

    ATTENTION For INNOVA M and INNOVA L valve is recommended that the union for one of the bodies be made using a fitting to facilitate valve disassembly. Before starting to weld the valve bodies to the pipe, disassemble the valve to prevent damage to the joints, following the instructions in section 8.4.

  • Page 11: Checking And Review

    Never disassemble the valve clamps directly without Reading the instructions carefully, since the actuator contain a spring inside it with and applied load. Valve and/or actuator assembly and disassembly should only be done by qualified persons. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 12: Actuator Air Connection

    • Connect and check the compressed air connections. • INOXPA valves are supplied with connections for Ø6 pipe, and with a silencer on S/E actuators. • Consider the quality of the compressed air, according to the specifications described in chapter Technical specifications.

  • Page 13: Start-Up

    ATTENTION Do not modify the operating parameters for which the valve has been designed without prior written authorisation from INOXPA. Do not touch the moving parts of the coupling between the actuator and the valve when the actuator is connected to the compressed air supply.

  • Page 14: Operating Problems

    • The direction of flow should go against the The direction of flow is the same as the direction • direction of closing of closing • Choke the air discharge to reduce the pressure INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 15: Maintenance

    PARALIQ GTE 703 The period between each preventive maintenance service will vary depending on the working conditions to which the valve is subject: temperature, pressure, number of operations per day, type of cleaning solutions used, etc. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 16: Cleaning

    To remove any traces of cleaning products, ALWAYS perform a final rinse with clean water at the end of the cleaning process. Before starting disassembly and assembly tasks, clean the entire interior and exterior of the valve. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 17: Assembly And Disassembly Of The Valve

    Valve and/or actuator assembly and disassembly should only be done by qualified persons. 8.5. DISASSEMBLY AND ASSEMBLY OF THE INNOVA M SINGLE SEAT VALVE 8.5.1. Disassembly 1. Loosen and separate the lower clamp (34B) and separate the lower bushing (12B) from the valve lower body (01A) and remove the seal (20B).
  • Page 18 16. Mount the lower bushing (12) with the seal (20B) mounted on it and clamp it on the lower valve body (01A). 17. Fix the lower clamp (34B). 18. Operate the valve 3 or 4 times to verify its correct assembly. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 19: Disassembly And Assembly Of The Innova L Single Seat Valve

    The body is steerable 360º, place it as the needs of the user. 12. Mount the actuator (10), valve top body (01) and valve top shaft (08) on the valve intermediate body (01A). INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...
  • Page 20 19. Mount the lower bushing (12B) with the joint (20B) mounted on it and clamp it on the valve lower body (01B). 20. Mount the lower clamp (34C). 21. Operate the valve 3 or 4 times to verify its correct assembly. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...
  • Page 21 Maintenance See section 9.9. Exploded drawing and parts list of the INNOVA M single seat valve 9.10. Exploded drawing and parts list of the INNOVA L single seat valve for a reference to the parts described. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 22: Replacing The Seat Seal

    Zone DN 25/40 DN 50/65/80 DN 100 4 mm 5 mm 8 mm • crescent spanner as per the table: Zone DN 25/40 DN 50/65/80 DN 100 Lantern 10 mm 13 mm 19 mm INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 23: Disassembly And Assembly Of The Actuator

    7. Reduce the force applied slowly until the tool no longer touches the cover. 8. Install the counter cover (39) and screw in the 4 bolts (32). 9. Install air fitting (18A). 10. Apply compressed air to check the proper functioning of the actuator. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...
  • Page 24 • an allen spanner 5 mm for size DN 25 to DN 40, an allen spanner 6 mm for size DN 50 to DN 80 and an allen spanner 10 mm for size DN 100, • fine point screw driver to remove the snap ring, • vice or lathe to compress the spring and enable the actuator to be opened. INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 25: Technical Specifications

    Outer surface finish Matt 9.4. SIZES AVAILABLE DN 25 – DN 100 DIN EN 10357 series A (formerly DIN 11850 series 2) OD 1’’ – OD 4’’ ASTM A269/270 (correspond to OD tube) Connections Welded INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 26: Weights Of The Innova M Single Seat Valve

    Technical Specifications 9.5. WEIGHTS OF THE INNOVA M SINGLE SEAT VALVE Weight (kg) 1’’ 1 ½’’ 2’’ 2 ½’’ 3’’ 4’’ 9.6. WEIGHTS OF THE INNOVA L SINGLE SEAT VALVE Weight (kg) 1’’ 1 ½’’ 2’’ 2 ½’’ 3’’ 4’’...

  • Page 27: Dimensions Of The Innova M Single Seat Valve

    Technical Specifications 9.7. DIMENSIONS OF THE INNOVA M SINGLE SEAT VALVE Dimensions (mm) ØF 1’’ 1 ½’’ 2’’ 2 ½’’ 3’’ 4’’ INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 28: Dimensions Of The Innova L Single Seat Valve

    Technical Specifications 9.8. DIMENSIONS OF THE INNOVA L SINGLE SEAT VALVE Dimensions (mm) ØF 1’’ 1 ½’’ 2’’ 2 ½’’ 3’’ 4’’ INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...

  • Page 29: Exploded Drawing And Parts List Of The Innova M Single Seat Valve

    Technical Specifications 9.9. EXPLODED DRAWING AND PARTS LIST OF THE INNOVA M SINGLE SEAT VALVE Position Description Quantity Material 01, 01A Body AISI 316L  Shaft seal EPDM/FPM/HNBR  Seat seal EPDM/FPM/HNBR Valve shaft AISI 316L Actuator AISI 304 Housing cap (top bushing)

  • Page 30: Exploded Drawing And Parts List Of The Innova L Single Seat Valve

    AISI 316L Lower bushing AISI 316L 12A, 12C Intermediate bushing (separator bushing) AISI 316L Guide bushing PTFE O-ring EPDM/FPM/HNBR Lantern AISI 304 Hexagonal screw Clamp AISI 304 34, 34A, 34B, 34C  Recommended spare parts INOXPA S.A.U. 10.241.30.01EN · (A) 2021/12...
  • Page 31 NOTES ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________...
  • Page 32 How to contact INOXPA S.A.U.: Contact details for all countries are Continually updated on our website. Please visit www.inoxpa.com to access the information. INOXPA S.A.U. Telers, 60 – 17820 – Banyoles – Spain Tel.: +34 972 575 200 – Fax: +34 972 575 502...
