ANNEX FOR CE MARKED EQUIPMENT ACCORDING TO THE

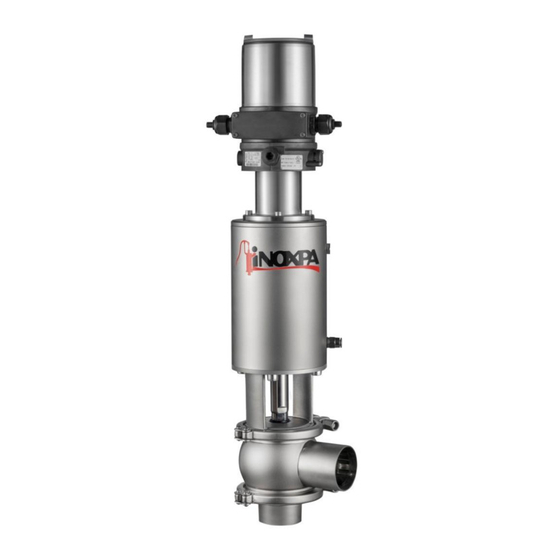

INNOVA G Ex CONTROL VALVE
The content of this Annex supplements the information in the instruction
manual. The instructions in this Annex must be taken into account in
conjunction with the equipment marked according to Directive
2014/34/EU.
This Annex is complemented, if applicable, by the manuals of the
ATEX-certified components comprising the assembly.
INSTALLATION, SERVICE AND
MAINTENANCE INSTRUCTIONS
ATEX DIRECTIVE 2014/34/EU:
1
Original Manual
10.247.30.07EN
(0) 2022/11
