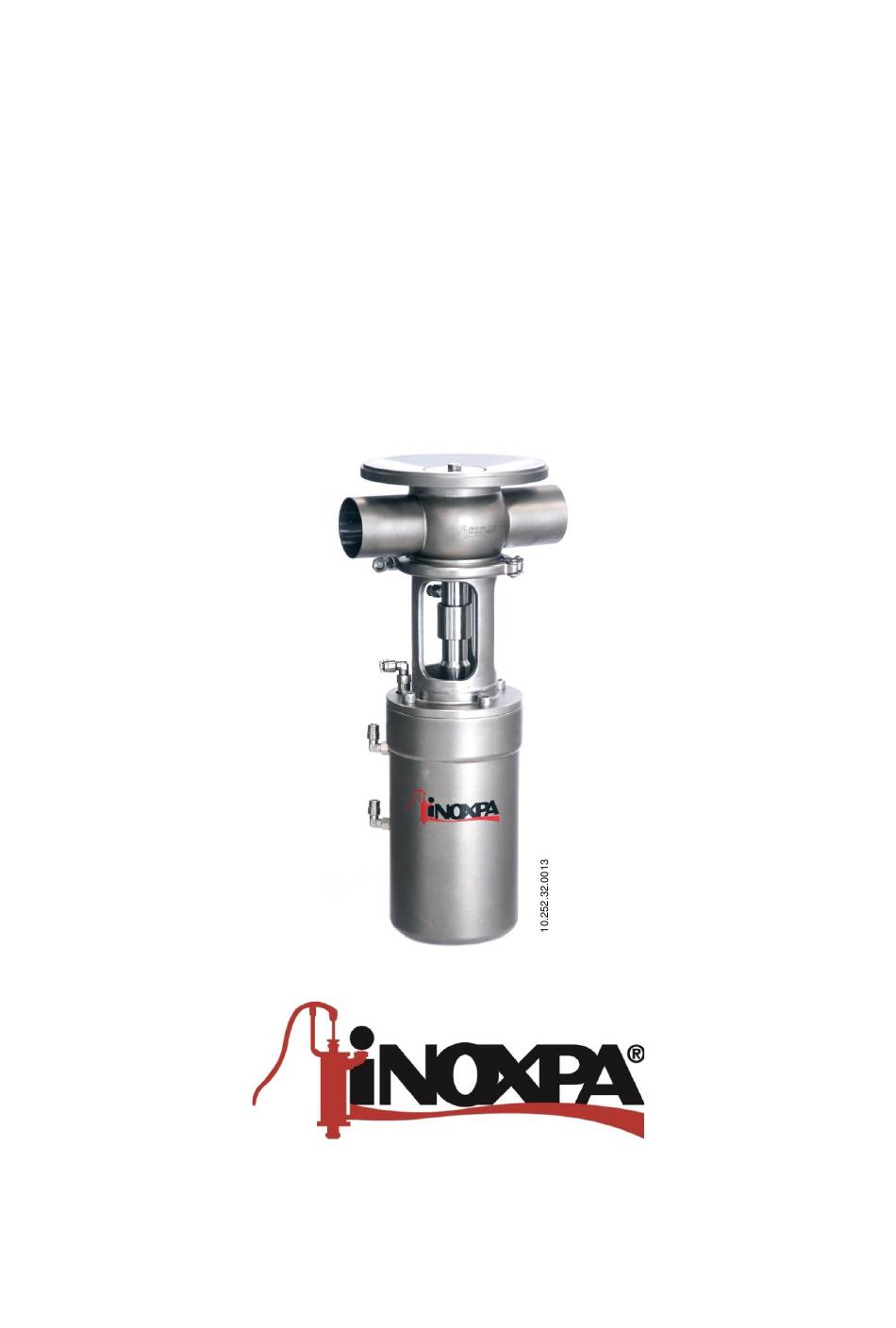

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS TANK BOTTOM MIXPROOF VALVE INNOVA T Manual Original 10.252.30.00EN (A) 2021/12...
-
Page 4: Table Of Contents
9.4. Sizes available ............................22 9.5. Weights of the INNOVA T valve ........................23 9.6. Dimensions of the INNOVA T valve ......................23 9.7. Exploded drawing and parts list of the INNOVA T valve ................24 INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 5: Generalities
• risk to the environment due to the type of substances released. 2.3. WARRANTY Any warranty will be void immediately and lawfully and, additionally, INOXPA will be compensated for any civil liability claims submitted by third parties, in the following cases: •... -
Page 6: Safety
Electric hazard ATTENTION Important instruction to prevent damage to the equipment and its function 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and starting the valve. Contact INOXPA in case of doubt. 3.2.1. During installation Technical specifications chapter 9 should always be observed. -
Page 7: General Information
4.2. APPLICATION The tank bottom mixproof valve INNOVA T has two independent plug seals which forming with each other a leakage chamber at atmospheric pressure in every working condition. In case of leaking of product, it will entry to the leakage chamber and be discharge for the leakage outlet. -
Page 8: Installation
5. Installation 5.1. RECEPTION OF THE VALVE INOXPA is not liable for any deterioration of the material caused by its transport or unpacking. Visually check that the packaging has not been damaged. When receipt the valve, check to see whether all the parts listed on the delivery slip are present: •... - Page 9 OD 3" DN 80 DN 100, OD 4" Seals HNBR EPDM Material AISI 316L Connection Welded Male Clamp Standard pipe Body configuration L, T 1 body Types Tank bottom mixproof valve Product family INNOVA valve INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12...
-
Page 10: Location
• vibrations that may be produced on the facility, • thermal dilation that the pipe may undergo when hot fluids are circulating, • the weight that the pipe can support, • excessive welding current. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 11: Checking And Review
Never disassemble the valve clamps directly without Reading the instructions carefully, since the actuator contain a spring inside it with and applied load. Valve and/or actuator assembly and disassembly should only be done by qualified persons. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 12: Actuator Air Connection
• Connect and check the compressed air connections. • INOXPA valves are supplied with connections for Ø6 pipe, and with a silencer on S/E actuators. • Consider the quality of the compressed air, according to the specifications described in chapter Technical specifications. -
Page 13: Start-Up
ATTENTION Do not modify the operating parameters for which the valve has been designed without prior written authorisation from INOXPA. Do not touch the moving parts of the coupling between the actuator and the valve when the actuator is connected to the compressed air supply. -
Page 14: Operating Problems
Excessive product pressure in upper body • Tighten loose parts • Loss of seal (vibrations) • Adjust cleaning time in control system • • Insufficient time for impulses • • Increase the compressed air pressure Insufficient air pressure INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 15: Maintenance
PARALIQ GTE 703 The period between each preventive maintenance service will vary depending on the working conditions to which the valve is subject: temperature, pressure, number of operations per day, type of cleaning solutions used, etc. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 16: Cleaning
To remove any traces of cleaning products, ALWAYS perform a final rinse with clean water at the end of the cleaning process. Before starting disassembly and assembly tasks, clean the entire interior and exterior of the valve. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 17: Assembly And Disassembly Of The Innova T Valve
Sterile air or inter gas d) Materials: EPDM (HNBR and FPM are not recommended) 8.4. ASSEMBLY AND DISASSEMBLY OF THE INNOVA T VALVE Proceed with caution. Personal injury can occur. Always disconnect the compressed air before starting to disassemble the valve. - Page 18 13. Install the clamp (34) that joins the valve body (01) and the lantern (21). 14. Release compressed air from A1 connection on the actuator (10). See section 9.7. Exploded drawing and parts list of the INNOVA T valve for a reference to the parts described. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12...
-
Page 19: Replacing The Seat Seal
• a crescent spanner 13 mm for remove the clams, • appropriate tool (not piercing) to mount the seat seals, • a crescent spanner as per the table: Zone DN 40/50/65/80 DN 100 Lantern 13 mm 19 mm INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... - Page 20 Maintenance Proceed with caution. Personal injury can occur. Never directly disassembly the clamps from the valve reading the instructions carefully. ATTENTION Valve/actuator assembly and disassembly should only be done by qualified persons. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12...
-
Page 21: Disassembly And Assembly Of The Actuator
10. Reduce the force applied slowly until the tool no longer touches the cover. 11. Install the air fitting (18 and 18A). 12. Apply compressed air to check the proper operation of the actuator. INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 22: Technical Specifications
Outer surface finish Matt 9.4. SIZES AVAILABLE DN 40 – DN 100 DIN EN 10357 series A (formerly DIN 11850 series 2) OD 1 ½’’ – OD 4’’ ASTM A269/270 (correspond to OD tube) Connections Welded INOXPA S.A.U. 10.252.30.00EN · (A) 2021/12... -
Page 23: Weights Of The Innova T Valve
Technical Specifications 9.5. WEIGHTS OF THE INNOVA T VALVE Weight (kg) 1 ½’’ 2’’ 2 ½’’ 3’’ 4’’ 9.6. DIMENSIONS OF THE INNOVA T VALVE Dimensions (mm) ØF 463,0 119,5 479,0 119,5 573,0 156,0 587,5 156,0 680,5 185,0 1 ½’’... -
Page 24: Exploded Drawing And Parts List Of The Innova T Valve
Technical Specifications 9.7. EXPLODED DRAWING AND PARTS LIST OF THE INNOVA T VALVE Position Description Quantity Material Valve body AISI 316L Shaft seal EPDM / FPM / HNBR Seat seal EPDM / FPM / HNBR Seat seal EPDM / FPM / HNBR... - Page 28 How to contact INOXPA S.A.U.: Contact details for all countries are Continually updated on our website. Please visit www.inoxpa.com to access the information. INOXPA S.A.U. Telers, 60 – 17820 – Banyoles – Spain Tel.: +34 972 575 200 – Fax: +34 972 575 502...
