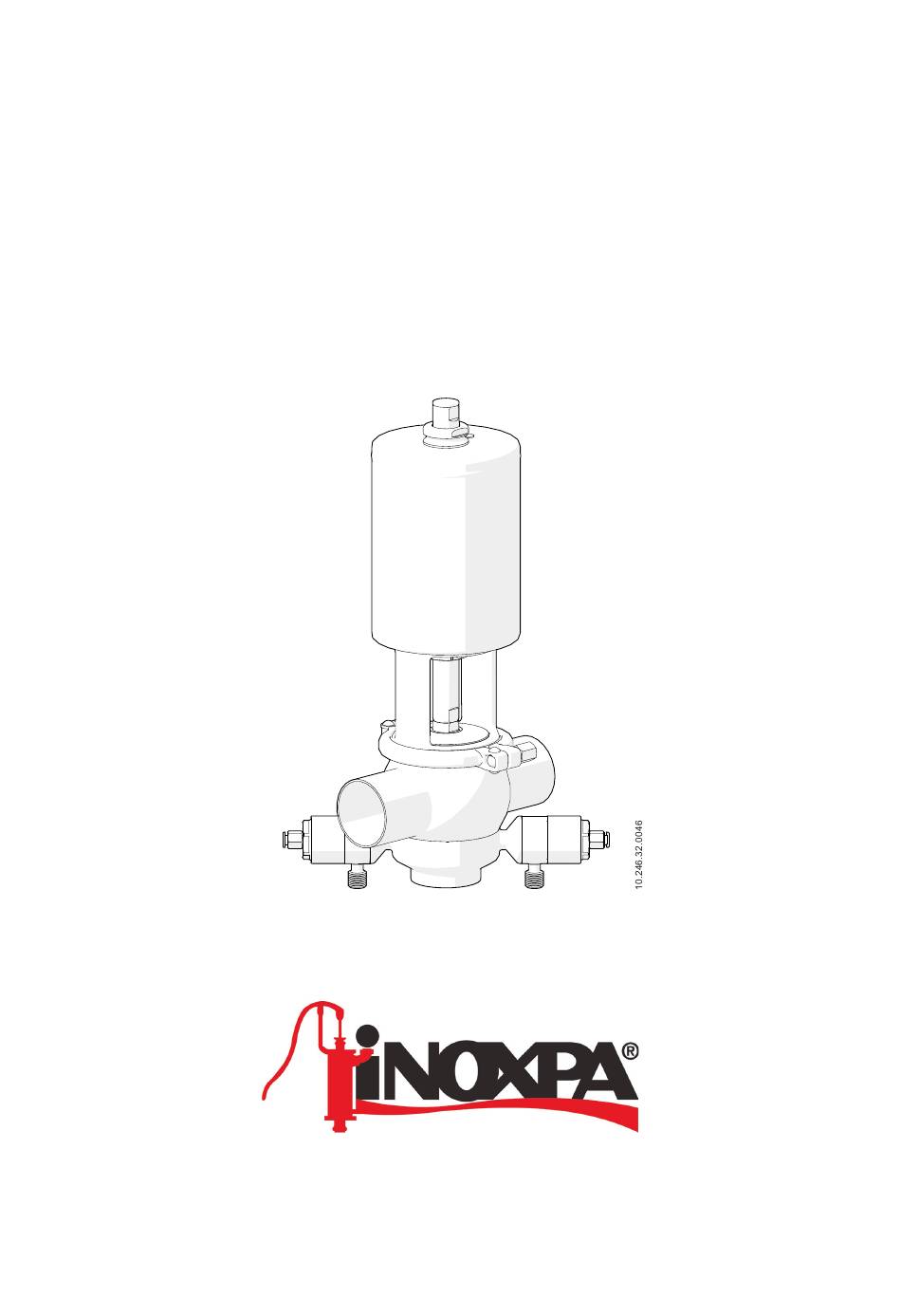

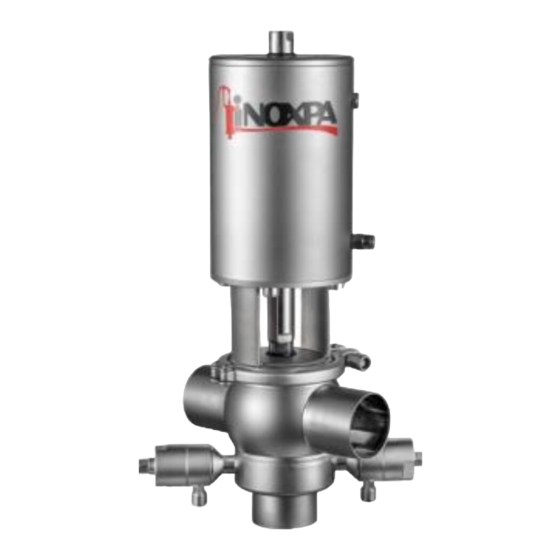

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS DOUBLE SEAL MIXPROOF VALVE INNOVA D Original Instructions 10.246.30.12EN (0) 2024/01...
- Page 2 INOXPA S.A.U. Telers, 60 17820 - Banyoles (Spain) hereby declare under our sole responsibility that the DOUBLE SEAL MIXPROOF VALVE Machine: INNOVA Model: Type: DN 25 - DN 100 / OD 1’’ - OD 4’’ Size: IXXXXXXXXX IXXXXXXXXX Serial number:...
- Page 3 INOXPA S.A.U. Telers, 60 17820 - Banyoles (Spain) hereby declare under our sole responsibility that the DOUBLE SEAL MIXPROOF VALVE Machine: INNOVA Model: Type: DN 25 - DN 100 / OD 1’’ - OD 4’’ Size: IXXXXXXXXX IXXXXXXXXX Serial number:...
-
Page 4: Table Of Contents
9.5. Sizes availables ..............................25 9.6. Weights ................................26 9.7. Dimensions ................................ 26 9.8. Exploded drawing and parts list of the valve ..................27 9.9. Exploded drawing and parts list of the leak detector ................28 INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 5: Generalities
INOXPA. The non-compliance of the prescribed indications in this manual means misuse of this gear on the technical side and the personal safety and this exempts INOXPA of all responsibility in case of ac- cidents and personal injuries and/or property damage. Also, excluded from the warranty all break- downs caused by improper use of the gear. -
Page 6: Safety
Important instruction to prevent damage to the equipment and/or its function 3.2. GENERAL SAFETY INSTRUCTIONS Read the instruction manual carefully before installing and starting the valve. Contact INOXPA in case of doubt. 3.2.1. During installation Always take into account the Technical Specifications of chapter 9. -
Page 7: General Information
The leakage chamber is cleaned through one of the available leak detectors. 4.2. APPLICATION The INNOVA D valve are suitable for a wide range of applications in the food, beverage, pharmaceu- tical and chemical industries. INOXPA S.A.U. -
Page 8: Installation
5. Installation 5.1. RECEPTION OF THE VALVE INOXPA is not liable for any deterioration of the material caused by its transport or unpac- king. When receipt the valve, check to see whether all the parts listed on the delivery slip are present:... - Page 9 DN 50, OD 2’’ DN 80 OD 2½’’ DN 100, OD 4’’ Seals HNBR EPDM Material 1.4404 (AISI 316L) Connection weld male clamp Standard pipe Body configuration A,B,C,D 1 body Type double seal mixproof valve Product family INNOVA valve INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01...
-
Page 10: Location
- vibrations that may be produced on the facility, - hermal dilation that the pipe may undergo when hot fluids are circulating, - the weight that the pipe can support, - excessive welding current. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 11: Checking And Review
Always disconnect the compressed air before starting to disassemble the valve. Never disassemble the valve clamps directly without reading the instructions carefully, since the actuator contains a spring inside it with an applie load. Valve and actuator assembly and disassembly should only be done by qualified persons. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 12: Actuator Air Connection
Connect anc check the air connections. When the valve is activated, the leak detectors can lose a few quantitites of product. To minimize the losses, you can install an airflow regulator to synchronize the opening and closing times of the actuator and the leak detectors. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 13: Start-Up
Verify that there are no covers on the leak detectors before activating the valve. The ring is steerable. It is recommended that it is oriented downward to facilitate the drainage. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... - Page 14 ATTENTION Do not modify the operating parameters for which the valve has been designed without prior written authorisation from INOXPA. Do not touch the moving parts of the coupling between the actuator and the valve when the actuator is connected to the compressed air supply.
-
Page 15: Operating Problems
Actuator spring is in poor condition and/or suck • Replace the spring or clean. (dirty) The direction of flow should go against the direc- The direction of flow is the same as the direction tion of closing. • Choke the air discharge to reduce the pressure. of closing INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 16: Maintenance
See the following table. NLGI DIN SEAL COMPONENT LUBRICANT 51818 Class HNBR / FPM klübersynth UH 1 64-2403 EPDM / HNBR / FPM PARALIQ GTE 703 INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 17: Cleaning
Clean the entire interior and exterior of the valve before starting disassembly and assem- bly tasks. 8.3.2. Automatic SIP (sterilization-in-place) Sterilization with steam is applied to all equipment including the pipping. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... - Page 18 EPDM (the materials HNBR and FPM are not recommended) 8.3.3. Clean of intermediate chamber The double seal mixproof valve INNOVA D allows the CIP or SIP clean the intermediate chamber to avoid any type of pollution. The clean the intermediate chamber with the valve closed, you should one leak detector for cleaning product entry or steam and should use the second one for drainage.
-
Page 19: Disassembly And Assembly Of The Valve
The body is steerable 360º. Place the body according to the needs of the user. 11. Fix the valve body (01) with the clamp (34). 12. Release de compressed air to the actuator (10). 13. Open and close the valve several times, applying compressed air to ensure the valve’s assembly is correct and check that the shaft seal fits smoothly with the valve body. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... - Page 20 Maintenance INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01...
- Page 21 Maintenance INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01...
-
Page 22: Replacing The Seat Seal
7. Press the seal with your fingers to make sure it is will seated. Make sure there are no parts projecting due to poor positioning of the seal. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 23: Disassembly And Assembly Of Leak Detector
A 27 mm socket wrench is needed to disassemble and assemble the leak detector. 8.6.1. Disassembly of leak detector 1. Unscrew the cover (39) from the body (01). 2. Remove the adjustable ring (35) and the O-rings (20C,20D) from the body (01). 3. Remove the shaft piston (30). 4. Remove the O-rings (20A,20B) and the spring (06) from the piston shaft (30). 8.6.2. Assembly of leak detector 1. Place the spring (06) and the O-rings (20A,20B) on the piston shaft (30). 2. Place the O-rings (20C,20D) on the body (01). 3. Place the adjustable ring (35) on the body (01). 4. Screw the cover (20) on the body (01). INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 24: Disassembly And Assembly Of Adapter Kit Of The Control Head
8. Unscrew the adapter shaft (08) from the actuator shaft. 8.7.2. Assembly 1. Place the O-rings (20A,20B) on the adapter base (13). 2. Remove the plugs from the actuator. 3. Screw the adapter shaft (08) on the actuator shaft. 4. Screw the plug on the adapter shaft (08). 5. Place the adaptaer base (13) on the actuator and fix it with the screws (24). 6. Remove the cover of the control head. 7. Place the control head and fix it to the adapter base (13). 8. Place the control head. INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 25: Technical Specifications
Seals in contact with the product EPDM (standard) - FPM - HNBR Internal surface finish bright polish Ra ≤ 0,8 µm External surface finish matt 9.5. SIZES AVAILABLES DIN EN 10357 serie A DN 25 - DN 100 (formerly DIN 11850 series 2) ASTM A269/270 OD 1’’ - OD 4’’ (corresponds to OD tube) Connections weld, male, clamp INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 26: Weights
Technical Specifications 9.6. WEIGHTS Weight [kg] 14,2 15,8 23,3 1½’’ 2’’ 2½’’ 14,3 3’’ 15,7 4’’ 23,3 9.7. DIMENSIONS Dimensions [mm] ØF 1’’ 1½’’ 2’’ 2½’’ 3’’ 4’’ INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 27: Exploded Drawing And Parts List Of The Valve
EPDM / FPM / HNBR radial seat seal EPDM / FPM / HNBR shaft 1.4404 (AISI 316L) actuator 1.4307 (AISI 304L) top body cap 1.4404 (AISI 316L) guide bushing PTFE O-ring EPDM / FPM / HNBR lantern 1.4301 (AISI 304) clamp 1.4301 (AISI 304) 1) recommended spare parts INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... -
Page 28: Exploded Drawing And Parts List Of The Leak Detector
Technical Specifications 9.9. EXPLODED DRAWING AND PARTS LIST OF THE LEAK DETECTOR Position Description Quantity Material spring 1.4310 (AISI 302) O-ring HNBR O-ring EPDM O-ring HNBR O-ring EPDM shaft PTFE adjustable ring 1.4404 (AISI 316L) cover 1.4404 (AISI 316L) 1) recommended spare parts INOXPA S.A.U. 10.246.30.12EN · (0) 2024/01... - Page 29 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 30 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 31 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
- Page 32 How to contact INOXPA S.A.U.: Contact details for all countries are continaually updated on our website. Please visit www.inoxpa.com to access the information. INOXPA S.A.U. Telers, 60 - 17820 - Banyoles - Spain...
