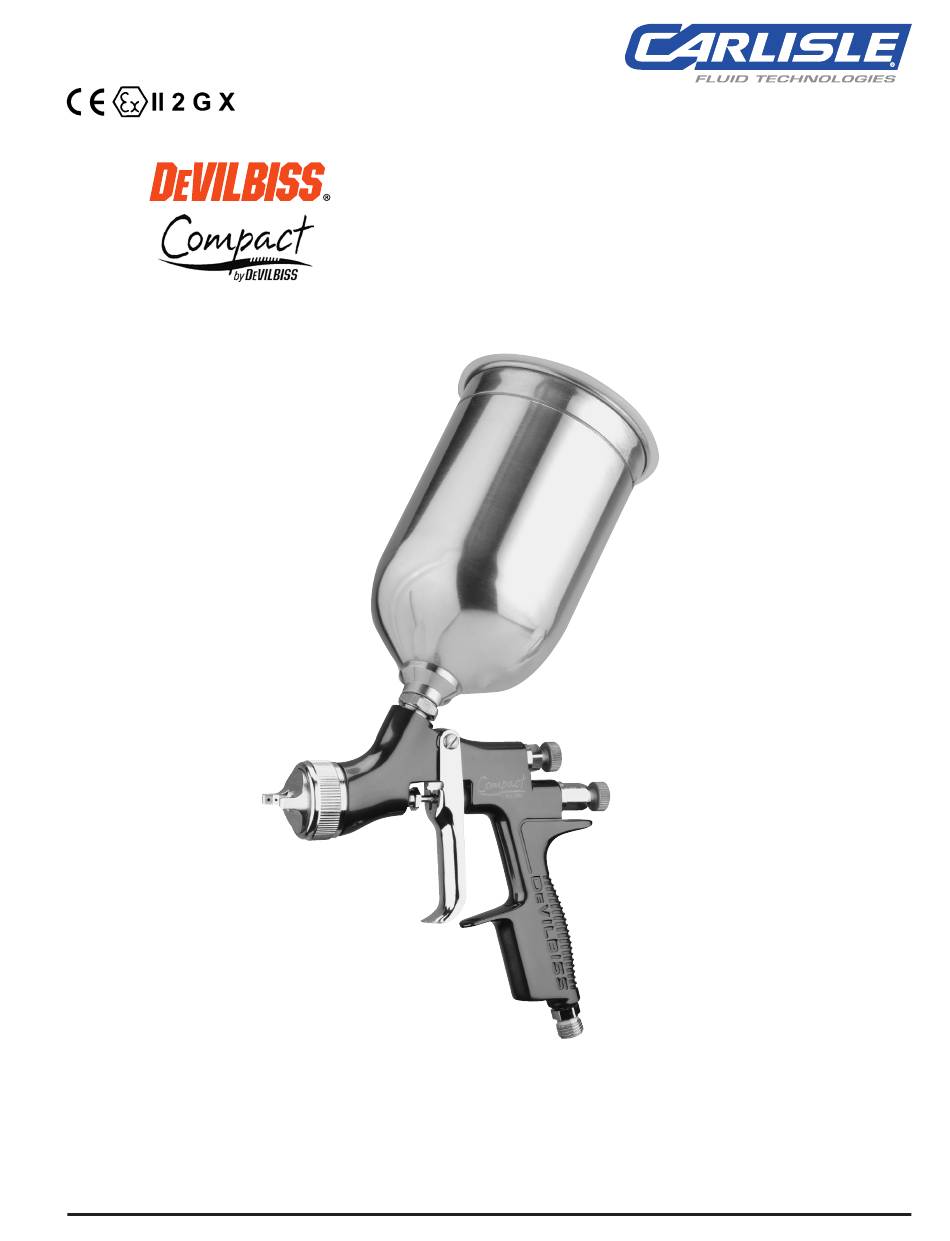

- Page 1 SERVICE MANUAL HVLP GRAVITY FEED SPRAYGUN SB-2-543-R1 (3/2018) 1 / 12 www.carlisleft.com...
-
Page 2: Eu Declaration Of Conformity
Product Description/Object of Declaration: Compact This Product is designed for use with: Solvent and Water based Materials Suitable for use in hazardous area: Zone 1 / Zone 2 Protection Level: II 2 G X Notified body details and role: TRAC Global Ltd (0891) Lodging of Technical file This Declaration of Conformity Finishing Brands UK Ltd,... -
Page 3: Safety Warnings
SAFETY WARNINGS FIRE AND EXPLOSION Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material suppliers instruc- tions and COSHH and/or SDS sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precau- tions, operation and house-keeping of working areas. -
Page 4: Parts List
Patent No. 2372465 (GB) GFC-502 GFC-501 1 Liter 20 oz. (SB-4-043) (SB-4-261) MODEL PART NUMBER PARTS LIST Example: COM-G506B-14-02 Ref. Description Part Number Qty. Options Aircap Air Cap/Retaining ring SP-100-***-K 506, 507, 508 e.g *** = 506 COM-506, COM-507 or COM-508 Blue anodized Nozzle SP-200S-**-K... -
Page 5: Specification
OPERATION PREVENTATIVE MAINTENANCE SPECIFICATION Mix coating material to manufac- Turn off air and relieve pressure in Air supply connection: turers instructions. the supply lines, or if using QD Universal 1/4" BSP and NPS system, disconnect from airline. Fill the cup with the required amount of material. - Page 6 Remove Adjusting Knob (7), Loosen Housing (10). Remove Housing (10) and Spring (8), and Needle (9). Airvalve Spring. Remove Valve (11). Using Service Tool SPN-7, Remove Valve Seat. engage groove behind the Valve Seat. Push out the Front Airvalve Turn the Gun upside down Fit New Front Seal to Service Seal with a finger.
- Page 7 12. Fit Valve Seat to Gunbody. 13. Remove Rear Airvalve Seal 14. Fit new Seal to Service Tool. from housing (10) with a hooked instrument. 15. Fit Seal to Housing (10). 16. Replace Valve (11). 17. Replace Valve Spring and screw in Housing (10).
- Page 8 TROUBLESHOOTING CONDITION CAUSE CORRECTION Horn holes plugged. Clean. Ream with non-metallic point. Heavy top or Clean. bottom pattern Obstruction on top or bottom of fluid tip. Cap and/or tip seat dirty. Clean. Left or right side horn holes plugged. Clean. Ream with non-metallic point. Heavy right or left Dirt on left or right side of fluid tip.
- Page 9 TROUBLESHOOTING (continued) CONDITION CAUSE CORRECTION Fluid dripping or leaking from Cup gasket worn or missing below cup. Tighten. bottom of cup Replace cup gasket. Cup threads dirty. Clean. Runs and sags Too much material flow. Adjust gun or reduce fluid flow. Material too thin.
- Page 10 ACCESSORIES HAV-500 OR Cleaning Brushes HAF-507-K12 29-3100-K6 Scrubs GFC-501 (Acetal) 20 Oz. Cup ® 42884-214-K5 (3/8") Hand Cleaner Towels HAV-501 Whirlwind™ GFC-502 (Aluminum) 1-Liter Cup 42884-215-K10 (5/8") Gravity Feed Cups Adjusting Valve In-Line Air Filter (HAV-501 SHOWN) These gravity feed cups are designed to be used with EXL, FLG, GFG, GFHV, GTI or Compact...
- Page 11 NOTES SB-2-543-R1 (3/2018) 11 / 12 www.carlisleft.com...
-
Page 12: Warranty Policy
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
