Summary of Contents for Rice Lake DIGI DSX-1000

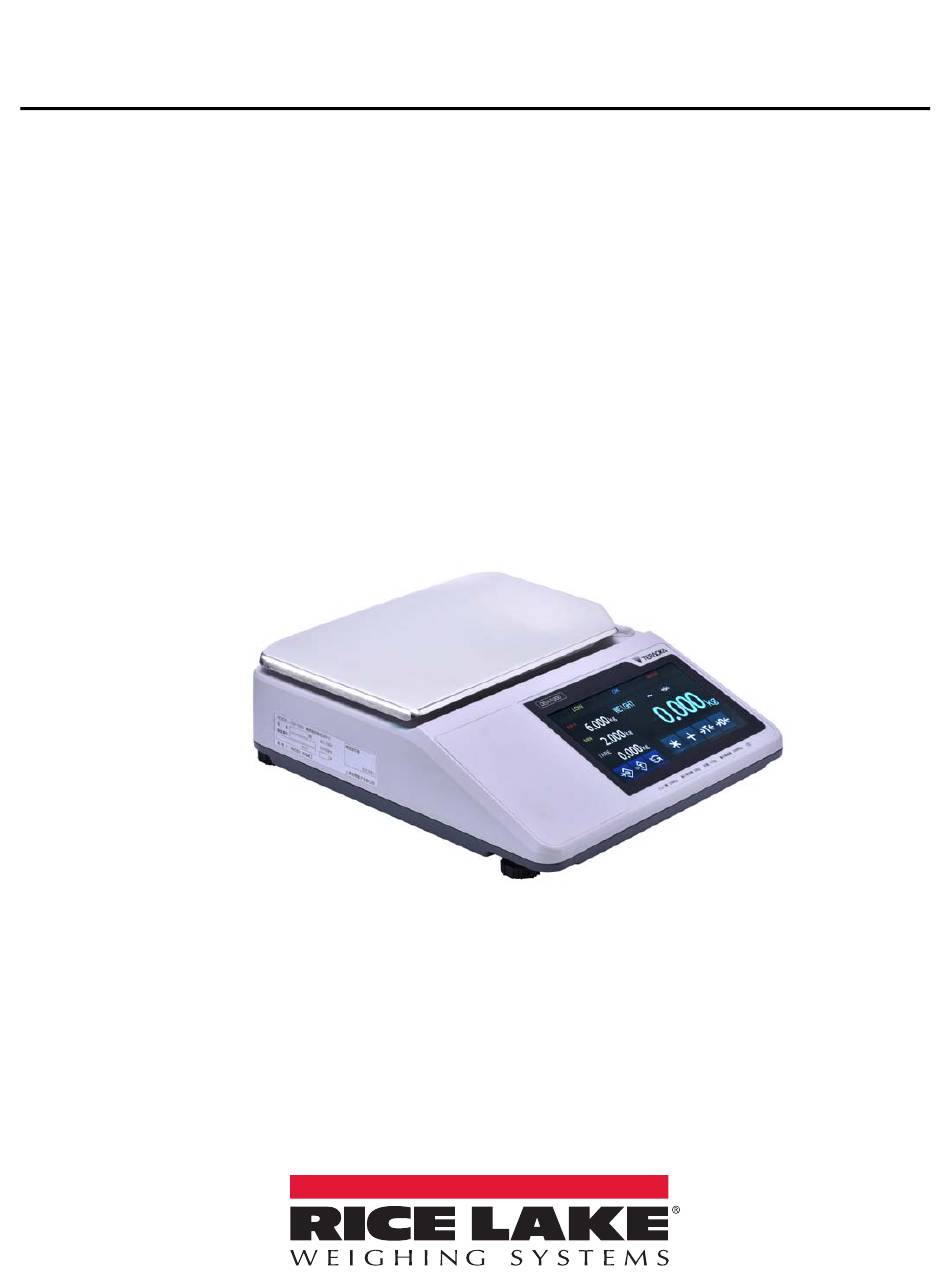

- Page 1 DIGI DSX-1000 Checkweigher Version 1 Operation Manual PN 174290...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 5.3 Software Upgrade ............. 24 Specifications ..........................28 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars...
-
Page 5: Introduction

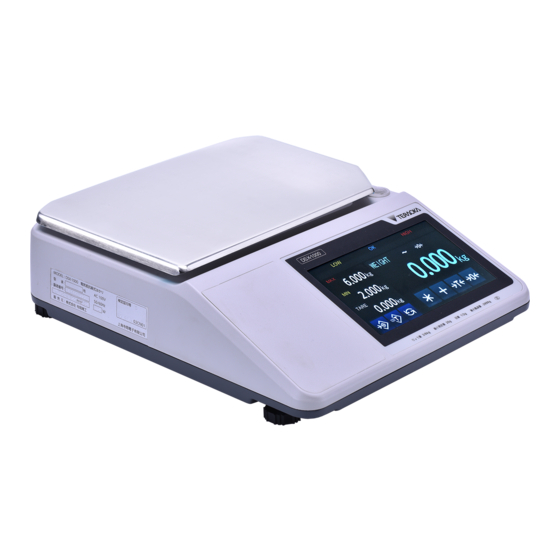

Introduction The DIGI DSX-1000 is an economical, high resolution checkweigher that quickly responds to changes in applied weight and utilizes a splash-proof housing. Manuals can be viewed and downloaded from the Rice Lake Weighing Systems website at www.ricelake.com Warranty information can be found on the website at www.ricelake.com/warranties... -
Page 6: Dimensions
Dimensions 13.9'' (351.9 mm) 10.7'' (270.9 mm) 7.8'' (198.4 mm) Figure 1-1. Dimensions DIGI DSX-1000 DIGI DSX-1000 Operation Manual... -
Page 7: Electrical Connections
Electrical Connections Switch Power Power Selector Micro Controller R5F100G Set Point RS-232 Interface Interface Load Cell Convertor Figure 1-2. Electrical Connections RS-232 Set Point AC DC Power BOARD Load Cell Convertor Printer Figure 1-3. Electrical Connections Layout Introduction... -
Page 8: Capacity/Minimum Graduation/Tare Range
6 kg (15 lb) (0-3 kg)-1 g (1e=50IR) (3-6 kg)-2 g (1e=100IR) 0 - 2999 g (0-7.5 lb) 15 kg (30 lb) (0-6 kg)-2 g (1e=40IR) (6-15 kg)-5 g (1e=100IR) 0 - 5.998 kg (0-15 lb) Table 1-2. Multi-Interval DIGI DSX-1000 Operation Manual... -
Page 9: Keys And Symbols
1.3.2 Keys and Symbols HIGH Figure 1-4. DIGI DSX-1000 Weigh Mode Display Symbol Description Six-digit weight display Six-digit tare weight display Six-digit maximum weight display — See Section 4.4 on page 19 Six-digit minimum weight display — See Section 4.4 on page 19 Center of zero —... - Page 10 Enter mode selection Set a digital tare weight — See Section 4.2.2 on page 17 Set upper and lower weight limit data — See Section Table 2-2. on page 10 Go back one level Table 1-4. Keys DIGI DSX-1000 Operation Manual...
-
Page 11: Setup
If is displayed, repeat the SUCCESS FAILED procedure. Contact Rice Lake Weighing Systems Technical Support if unable to obtain a successful zero calibration. 7. Place test weight equal to full capacity on the scale. 8. Press . If the full scale calibration is good, is displayed. -
Page 12: Date And Time Setting
Date and Time Setting Use the following steps to set the date and time on the DIGI DSX-1000. 1. Power on the scale. 2. Press to enter mode selection. 3. Press 4. Press to display the digital keypad. 5. Enter date and time in order of YY-MM-DD HH:MM:SS. -
Page 13: Communication Settings
Communication Settings Use the following steps to configure communication settings on the DIGI DSX-1000. 1. Press to enter mode selection. 2. Press to enter specification settings. 3. Press to access each specification. 4. Press the option desired for each specification. See Table 2-1. -
Page 14: Weight And Measurement Settings
Weight and Measurement Settings Use the following steps to configure weight and measure settings on the DIGI DSX-1000. 1. Insert a non-conductive tool into the access hole on the bottom of the scale and press the configuration switch to access the weight and measure settings. -
Page 15: Communication
Communication RS-232C Interface 3.1.1 Specification Baud Rate: 4800, 9600, 19200, 38400 bps Start Bit: 1 Bit Stop Bit: 1,2 Bit Data Bit: 7,8 Bit Parity Bit: Even, Odd, None 3.1.2 Pin Assignment Inside DSX-1000 DSX-1000 SIDE CNI (5 pins) PC Side Table 3-1. -
Page 16: Data Format (Type A, Type W, Type B)
1 when weight overflow, 0 when not Weight Overflow Bit 1 1 when tare subtraction is used, 0 when not Bit 0 1 when additional parity code is added in text, 0 when not Additional Parity Table 3-3. Status Flags DIGI DSX-1000... - Page 17 Weight Condition Flag Data Description Bit 7 Not Used, always 0 Not Used Bit 6 Fixed to 1 Fixed to 1 Bit 5 Not Used Not Used Bit 4 1 when weight underflow, 0 when not Weight UF Bit 3 1 when weight overflow, 0 when not Weight OF Bit 2...
-
Page 18: Communication Method
The data is sent by pressing . Data can be transmitted immediately or held until the weight becomes stable, depending on the Specification 3 setting. See Section 2.3 on page 9. DSX-1000 Figure 3-2. Type W (Standard Manual) Communication DIGI DSX-1000... -
Page 19: Type B (Standard Command)
External Power (VEXT) — (6-15 VDC) 12 VDC Recommended. Max current draw from external power supply (VEXT) - VDC 100 mA (2 x 50 mA) 3.5.2 Pin Assignment CN3 (6 pins) Table 3-5. Internal Pin Assignments of DIGI DSX-1000 Communication... -
Page 20: Setpoint Signal On Timing
By using additional external circuitry the outputs can be triggered by changes in weight. Figure 3-5 is a sample circuit diagram, showing how the outputs would be wired to relays to drive additional loads with other voltage or current requirements, and is for reference only. Figure 3-5. Setpoint Sample Circuitry DIGI DSX-1000... -
Page 21: Operation
Operation Zero Setting 1. Power the scale on and wait for it to stabilize. are displayed. 2. Place a weight on the scale. The weight and are displayed. 1. Press . The scale briefly displays then returns to zero. are displayed. 888888 2. -
Page 22: Clearing A Digital Tare
1. Place a weight on the scale. The weight and display. If a tare was previously set, also displays. 2. Press The numeric weight data is sent to the serial port. Figure 4-2. Example of Weight Data Sent Through Serial Port DIGI DSX-1000... -
Page 23: Setting Weight Limits
Setting Weight Limits It is recommended that after setting weight limits, the scale is tested with known weights at under the Note minimum limit, between the minimum and maximum limits, and above the maximum limit to ensure the scale is performing as expected. Minimum and maximum weight settings are held in the instrument memory upon instrument power off. -
Page 24: Setting Minimum And Maximum Limits Within A Percentage
Example: For a maximum weight limit set at 2.000 lb and CURRENT MAXIMUM the percent set at 10, the displays for a maximum weight equal to 2.200 lbs. CURRENT MAXIMUM 2.200 17. Press twice return to the weigh mode. DIGI DSX-1000... -
Page 25: Setting Minimum And Maximum Limits With Weights
4.4.3 Setting Minimum and Maximum Limits with Weights 1. Place a weight on the scale equal to the desired minimum weight. 2. Press . A current weight briefly displays and then the minimum and maximum weight setting menu. 3. Press to set the minimum weight. -
Page 26: Weight Accumulation
2. Press . The internal count and AD count display. 3. Put a weight on the scale. 4. Press . The internal count displays as zero. 5. Press twice to return to weigh mode. DIGI DSX-1000... -
Page 27: Maintenance And Troubleshooting
3. Do not immerse the scale into cleaning or other liquid solutions. 4. Do not use isopropyl alcohol or other solvents to clean the display surface. Troubleshooting Refer to the following to check and correct any errors. Contact Rice Lake Weighing Systems Technical Support if the issue persists. Symptom... -
Page 28: Software Upgrade
Software Upgrade The DIGI DSX-1000 must be connected to a PC via an RS-232 interface to perform a software upgrade. A cable with two nine Pin D-Sub Female connectors is necessary for connecting the scale to a PC. DSX-1000 RS-232C... - Page 29 Figure 5-3. DIGI DSX-1000 in Upgrade Mode Note The DIGI DSX-1000 remains at this display until the unit is power cycled at the end of the upgrade process. At the PC, the Mini R16 status light changes from red to green.
- Page 30 Figure 5-5. Locate Firmware Upgrade File 13. Press . A file opened message displays briefly and then the display line is blank. Status: Open Figure 5-6. File Open Menus 14. Press . The following menu displays. Figure 5-7. Program Menu DIGI DSX-1000...
- Page 31 15. Press . The send file menu displays and the firmware upgrade is sent to the DIGI DSX-1000. Once the file transmission is finished, a transmission complete notification displays. Figure 5-8. Files Transmission Menu and Transmission Complete Display 16. Press 17.
-
Page 32: Specifications
10 times per second Humidity 15 to 85% (Non Condensing) Conversion Internal Resolution 300,000 Enclosure Parts Dimensions 13.85 in x 9.88 in x 3.82 in Case DSX-1000 (351.9 mm x 251mm x 97.1 mm) Load Cell DSX-1000 DIGI DSX-1000 Operation Manual... - Page 34 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com...
