SERVICE MANUAL
EN
The following instructions provide the necessary information
for the proper maintenance of the Binks SV100 gravity
feed spray gun. Please read and understand all the
information in this document in order to get the maximum
performance from your new SV100 gravity spray gun.
The SV100 spray gun is the result of quality engineering
and development activity. The result is an ergonomic
product with reduced triggering effort and fine atomization.
The HVLP air cap has been specifically designed to
comply with local regulatory air quality restrictions.
The specification table details the operating parameters
of the gun to achieve those compliant conditions.
In addition, the relatively low air flow rate of the SV100
spray gun will help in containing overspray.
The SV100 spray gun should be operated under the safety
directions outlined in this literature. Your safety and the
safety of others depend on your thorough understanding
of the material contained on the Part Sheet.
If you have any questions or do not understand the
content in this literature, call your nearest service
representative.
SPECIFICATIONS
Max. Air Pressure:
175psi/12bar
For HVLP Compliance: 26 psi inlet pressure delivers
(with SV-401-693-K cap) 10 psi air cap pressures at
12 cfm air volume
Gun Body:
Cast Aluminum
Fluid Path:
Aluminum
Fluid Nozzle:
Stainless Steel
Fluid Needle:
Stainless Steel
Fluid Inlet Size:
3/8"-19 BSP(F)
Air Inlet Size;
1/4" NPS(M)
Gun Weight:
1.02 lbs. (461 g)
77-2875-R8 (5/2018)

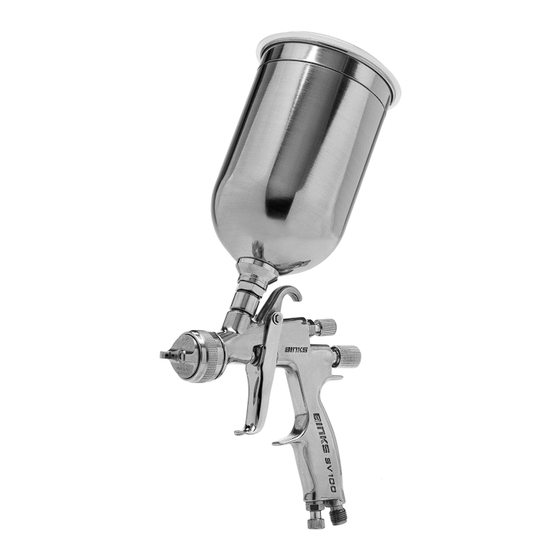

BINKS SV100 HVLP
GRAVITY FEED SPRAY GUN
7042-6931-4
1 / 8
www.carlisleft.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carlisle BINKS SV100
Summary of Contents for Carlisle BINKS SV100
- Page 1 GRAVITY FEED SPRAY GUN 7042-6931-4 The following instructions provide the necessary information for the proper maintenance of the Binks SV100 gravity feed spray gun. Please read and understand all the information in this document in order to get the maximum performance from your new SV100 gravity spray gun.
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
- Page 3 OPERATION AND MAINTENANCE INSTRUCTIONS Your new SV100 Gravity Feed Spray Gun is exceptionally rug- Separator Filter ged in construction and is built to stand up under hard, contin- with Air Regulator uous use. However, like any other fine precision instrument, Gravity its most efficient operation depends on a knowledge of its Feed...
-
Page 4: Spray Technique
GENERAL SPRAY INSTRUCTIONS To reduce overspray and obtain maximum efficiency, Generally use up to 20 psi air at gun inlet. Unusually always spray with the lowest possible fluid/air pressure heavy, difficult to atomize materials may require up to that produces an acceptable spray pattern. 26 psi at gun inlet. -
Page 5: Parts List
BINKS SV100 HVLP GRAVITY FEED SPRAY GUN PARTS LIST (When ordering, please specify Part No.) ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. SV-401-693-K AIR CAP ..........1 — FLUID NEEDLE 1.4 mm ...... 1 ★ ★ — FLUID TIP 1.4 mm w/ GASKET ... 1 —... - Page 6 AIR NOZZLE, FLUID NOZZLE, FLUID NEEDLE NOTE To reduce overspray and obtain maximum efficiency always spray with the lowest possible atomizing air pressure. 1. All nozzles and needles are precision made. They 3. To clean nozzles, soak them in solvent to dissolve should be handled with care.
- Page 7 ACCESSORIES Cleaning Brushes 29-3100-K6 Scrubs ® GFC-501 (Acetal) 20 Oz. Cup Hand Cleaner Towels 42884-214-K5 (3/8") 54-4720 (Aluminum) 1-Liter Cup 42884-215-K10 (5/8") Gravity Feed Cups These gravity feed cups are designed to be used with EXL, FLG, Compact, SV100, 95G and M1-G gravity feed spray guns.
-
Page 8: Warranty Policy
This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
