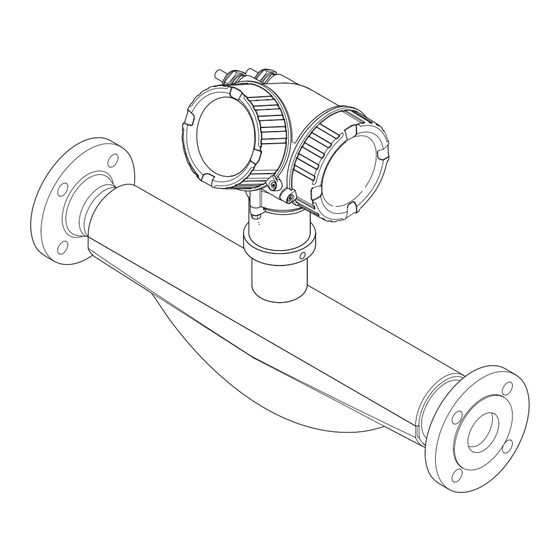

Page 1 Products Solutions Services BA01315D/06/EN/02.14 71272489 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promass F 200 FOUNDATION Fieldbus Coriolis flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these Instructions. Endress+Hauser...
Page 3 Proline Promass F 200 FOUNDATION Fieldbus Table of contents Table of contents 6.2.2 Preparing the measuring device ..24 Document information ....6 6.2.3...
Page 4 ..... 80 13.3 Endress+Hauser services ....111 10.7 Simulation .
Page 5 Proline Promass F 200 FOUNDATION Fieldbus Table of contents Technical data ....117 16.1 Application ......117 16.2 Function and system design .
Page 6 Document information Proline Promass F 200 FOUNDATION Fieldbus Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7 • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. For a detailed list of the individual documents along with the documentation code...
Page 8 Registration-pending trademark of the Fieldbus Foundation, Austin, Texas, USA ® TRI-CLAMP Registered trademark of Ladish & Co., Inc., Kenosha, USA Applicator ® , FieldCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
Page 9 ‣ Observe the specified pressure and temperature range. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any Endress+Hauser...
Page 10 It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.
Page 11 Proline Promass F 200 FOUNDATION Fieldbus Basic safety instructions IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings.
Page 12 Product description Proline Promass F 200 FOUNDATION Fieldbus Product description The device consists of a transmitter and a sensor. One device version is available: compact version - transmitter and sensor form a mechanical unit. Product design A0014056  1 Important components of a measuring device...
Page 13 • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...
Page 14 "Supplementary device-dependent documentation" (→  8) • The W@M Device Viewer: Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1...
Page 15 Proline Promass F 200 FOUNDATION Fieldbus Incoming acceptance and product identification 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Ptest: Size: Material: Patents Date: A0017923  3 Example of a sensor nameplate Name of the sensor Manufacturing location Order code Serial number (ser.
Page 16 Incoming acceptance and product identification Proline Promass F 200 FOUNDATION Fieldbus 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.
Page 17 Proline Promass F 200 FOUNDATION Fieldbus Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections.
Page 18 Storage and transport Proline Promass F 200 FOUNDATION Fieldbus 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device.
Page 19 Proline Promass F 200 FOUNDATION Fieldbus Installation Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...
Page 20 Installation Proline Promass F 200 FOUNDATION Fieldbus Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 0.55 1½ 0.87 1.10 1.97 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
Page 21 Proline Promass F 200 FOUNDATION Fieldbus Installation Inlet and outlet runs No special precautions need to be taken for fittings which create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs (→  21). A0015597 A0015598 Installation dimensions For the dimensions and installation lengths of the device, see the "Technical...
Page 22 Installation Proline Promass F 200 FOUNDATION Fieldbus NOTICE Electronics overheating on account of thermal insulation! ‣ Observe maximum permitted insulation height of the transmitter neck so that the transmitter head is completely free. mm (in) A0016749 Insulation thickness Medium temperature Maximum recommended insulation thickness at an ambient temperature of T = 40 °C (104 °F)
Page 23 Proline Promass F 200 FOUNDATION Fieldbus Installation The sheet must have the following properties: • Relative magnetic permeability µr ≥ 300 • Plate thickness d ≥ 0.35 mm (d ≥ 0.014 in) Vibrations The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by plant vibrations.
Page 24 Installation Proline Promass F 200 FOUNDATION Fieldbus WARNING Limited functional reliability of the rupture disk. Danger to persons from escaping fluids! ‣ Do not remove the rupture disk. ‣ When using a rupture disk, do not use a heating jacket.
Page 25 Proline Promass F 200 FOUNDATION Fieldbus Installation  A0013964 6.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned. max. 350° 8 mm 8 mm A0013713 1. Release the fixing screw.
Page 26 Installation Proline Promass F 200 FOUNDATION Fieldbus Feed the cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. 7. Reverse the removal procedure to reassemble the transmitter.
Page 27 Proline Promass F 200 FOUNDATION Fieldbus Electrical connection Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
Page 28 Electrical connection Proline Promass F 200 FOUNDATION Fieldbus 7.1.3 Terminal assignment Transmitter Connection version for FOUNDATION Fieldbus, pulse/frequency/switch output A0013570 A0018161 Maximum number of terminals Maximum number of terminals for order code for "Accessory mounted", option NA "Overvoltage protection" Output 1: FOUNDATION Fieldbus...
Page 29 Proline Promass F 200 FOUNDATION Fieldbus Electrical connection To comply with both requirements, the fieldbus system allows three different types of shielding: • Shielding at both ends. • Shielding at one end on the feed side with capacitance termination at the field device.
Page 30 Electrical connection Proline Promass F 200 FOUNDATION Fieldbus 7.1.6 Requirements for the supply unit Supply voltage Transmitter An external power supply is required for each output. The following supply voltage values apply for FOUNDATION Fieldbus and the pulse/frequency/switch output: Minimum terminal Maximum terminal Order code for "Output"...
Page 31 Proline Promass F 200 FOUNDATION Fieldbus Electrical connection Connection via terminals 3 mm 20 mm 10 (0.4) mm (in) A0013836 1. Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
Page 32 Electrical connection Proline Promass F 200 FOUNDATION Fieldbus Special connection instructions 7.3.1 Connection examples FOUNDATION Fieldbus A0019004  6 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield T-box Measuring device Local grounding Bus terminator...
Page 33 Proline Promass F 200 FOUNDATION Fieldbus Electrical connection  A0013960 5. Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables comply with the requirements (→  27)? ...
Page 34 Operation options Proline Promass F 200 FOUNDATION Fieldbus Operation options Overview of operation options A0015607 Local operation via display module Computer with operating tool (e.g. FieldCare, AMS Device Manager) Field Xpert SFX350 or SFX370 Field Communicator 475 Control system (e.g. PLC)
Page 35 Proline Promass F 200 FOUNDATION Fieldbus Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu with menus and parameters (→  141) Operating menu for operators and maintenances...
Page 36 Operation options Proline Promass F 200 FOUNDATION Fieldbus 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles. Each user role corresponds to typical tasks within the device lifecycle. Access to the operating menu via the local display 8.3.1...
Page 37 Proline Promass F 200 FOUNDATION Fieldbus Operation options • Density • Reference density Temperature Totalizer  The measurement channel number indicates which of the three totalizers is displayed. Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g.
Page 38 Operation options Proline Promass F 200 FOUNDATION Fieldbus / ../ Display For more information about the menu icons, refer to the "Display area" section (→  38) Status area The following appears in the status area of the navigation view in the top right corner: •...
Page 39 Proline Promass F 200 FOUNDATION Fieldbus Operation options Wizard operation Symbol Meaning Switches to the previous parameter. Confirms the parameter value and switches to the next parameter. Opens the editing view of the parameter. 8.3.3 Editing view Numeric editor Text editor...
Page 40 Operation options Proline Promass F 200 FOUNDATION Fieldbus Text editor Symbol Meaning Toggle • Between upper-case and lower-case letters • For entering numbers • For entering special characters Selection of letters from A to Z. ABC _ … Selection of letters from a to z.
Page 41 Proline Promass F 200 FOUNDATION Fieldbus Operation options 8.3.4 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a choose list. With a Wizard Confirms the parameter value and goes to the previous parameter.
Page 42 Operation options Proline Promass F 200 FOUNDATION Fieldbus • Setup • Conf. backup disp. • Simulation Calling up and closing the context menu The user is in the operational display. 1. Press  for 2 s.  The context menu opens.
Page 43 Proline Promass F 200 FOUNDATION Fieldbus Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 44 Operation options Proline Promass F 200 FOUNDATION Fieldbus Navigation path "Expert" menu → Direct access The direct access code consists of a 4-digit number and the channel number, which identifies the channel of a process variable: e.g. 0914-1. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 45 Proline Promass F 200 FOUNDATION Fieldbus Operation options 8.3.9 Changing the parameters For a description of the editing display - consisting of text editor and numeric editor - with symbols (→  39), for a description of the operating elements (→  41) Example: Changing the tag name in the "Tag description"...
Page 46 Operation options Proline Promass F 200 FOUNDATION Fieldbus 8.3.10 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code. This protects the device configuration via the local display from unauthorized access (→...
Page 47 Proline Promass F 200 FOUNDATION Fieldbus Operation options Switching off the keypad lock ‣ The keypad lock is switched on. Press the  +  +  keys simultaneously.  The message Keylock off appears on the display: The keypad lock is switched off.
Page 48 FOUNDATION Fieldbus FF-H1 network Power supply FF-H1 network T-box Measuring device Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" Endress+Hauser...
Page 49 FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 50 Operation options Proline Promass F 200 FOUNDATION Fieldbus User interface Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status: Good Xxxxxx Mass flow unit: kg/h Access status tooling Maintenance Volume flow unit: m /h ³...
Page 51 Proline Promass F 200 FOUNDATION Fieldbus System integration System integration Overview of device description files 9.1.1 Current version data for the device Manufacturer ID 452B48 hex Manufacturer ID parameter Diagnostics → Device info→ Manufacturer ID Device type ID 0x1054 Device type parameter Diagnostics →...
Page 52 System integration Proline Promass F 200 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network 9.2.1 Block model • Resource Block • Transducer Blocks – Setup Transducer Block – Advanced Setup Transducer Block – Display Transducer Block – HistoROM Transducer Block –...
Page 53 Proline Promass F 200 FOUNDATION Fieldbus System integration Digital Input (DI) Channel Signal Status switch output Low flow cut off Empty pipe detection Status verification Multiple Analog Output Block (MAO) Structure Channel_0 Value 1 Value 2 Value 3 Value 4...
Page 54 System integration Proline Promass F 200 FOUNDATION Fieldbus 9.2.3 Index tables of Endress+Hauser parameters (→  141) 9.2.4 Methods Method Block / accessibility via menu Description Set to "AUTO" Block: – This method sets the Resource Block and all the mode Accessibility via menu: Configure/Setup →...
Page 55 Proline Promass F 200 FOUNDATION Fieldbus System integration Method Block / accessibility via menu Description Diagnostics 3 – Block: Diagnostic Transducer Block This method is used to display remedial Remedy Accessibility via menu: Configure/Setup → measures for an additional active diagnostic information Diagnostics →...
Page 56 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Commissioning 10.1 Function check Before commissioning the device, make sure that the post-installation and post- connection checks have been performed. • "Post-installation check" checklist (→  26) • "Post-connection check" checklist (→  33) 10.2...
Page 57 Proline Promass F 200 FOUNDATION Fieldbus Commissioning X X X X X X X 20.50 0104-1 Main menu Language English Operation Setup Main menu Operation Setup Diagnostic / ../Setup Medium selection XXXXXXXXX XXXXXXXXX A0014007-EN  10 Using the example of the local display ...
Page 58 Commissioning Proline Promass F 200 FOUNDATION Fieldbus XXXXXXXXX A0013375  11 Header of the operational display with tag name Device tag Navigation "Setup" menu → Device tag Parameter overview with brief description Parameter Description User entry Factory setting Device tag Enter the name for the measuring point.
Page 59 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Result • lb/min The selected unit applies for: • Output •...
Page 60 Commissioning Proline Promass F 200 FOUNDATION Fieldbus 10.4.3 Selecting and setting the medium The Medium selection wizard guides you systematically through all the parameters that have to be configured for selecting and setting the medium. Navigation "Setup" menu → Select medium...
Page 61 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Parameter Description Selection / User entry Factory setting Pressure compensation Select pressure compensation type. • Off • Fixed value • External value Pressure value Enter process pressure to be used for Positive floating-point number 101 325 bar pressure correction.
Page 62 Commissioning Proline Promass F 200 FOUNDATION Fieldbus 10.4.4 Configuring the analog inputs The Analog inputs submenu guides you systematically to the individual Analog input 1 to 6 submenu. From here you get to the parameters of the individual analog input.
Page 63 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Structure of the wizard Format display Value 1 display 0% bargraph value 1 100% bargraph value 1 Value 2 display Value 3 display 0% bargraph value 3 100% bargraph value 3 Value 4 display...
Page 64 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter Prerequsite Description Selection / User Factory setting entry 0% bargraph value 1 – Enter 0% value for bar graph Signed floating-point 0 kg/h display. number 100% bargraph value 1 – Enter 100% value for bar Signed floating-point 2.5 kg/h...
Page 65 Proline Promass F 200 FOUNDATION Fieldbus Commissioning 10.4.6 Configuring the low flow cut off The Low flow cut off wizard guides you systematically through all the parameters that have to be set for configuring the low flow cut off. Navigation "Setup"...
Page 66 Commissioning Proline Promass F 200 FOUNDATION Fieldbus 10.4.7 Configuring the partial filled pipe detection The Partial filled pipe detection wizard guides you systematically through all parameters that have to be set for configuring the monitoring of the pipe filling. Navigation "Setup"...
Page 67 Proline Promass F 200 FOUNDATION Fieldbus Commissioning 10.5 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu Language...
Page 68 Commissioning Proline Promass F 200 FOUNDATION Fieldbus ‣ Configuration backup display (→  79) ‣ Administration 10.5.1 Carrying out a sensor adjustment The Sensor adjustment submenu contains parameters that pertain to the functionality of the sensor. Navigation "Setup" menu → Advanced setup → Sensor adjustment ‣...
Page 69 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Structure of the wizard for the pulse output Operating mode Pulse Assign pulse Volume flow Correct.vol.flow Mass flow Mass unit Volume unit Corr. vol. unit Corr. vol.flow. Calc ref density Fix ref.density Linear exp coeff Ref.
Page 70 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter Prerequsite Description Selection / User Factory setting entry Mass unit – Select mass unit. Unit choose list Country-specific: • kg Result • lb The selected unit is taken from: Mass flow unit parameter Volume unit –...
Page 71 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Configuring the frequency output Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output Structure of the wizard for the frequency output Operating mode Frequency Assign freq. Volume flow Density Temperature Ref.density Mass flow Correct.vol.flow...
Page 72 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter overview with brief description Parameter Description Selection / User entry Factory setting Operating mode Define the output as a pulse, frequency or • Pulse Pulse switch output. • Frequency • Switch Assign frequency output Select process variable for frequency output.
Page 73 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Parameter Description Selection / User entry Factory setting Failure mode Define output behavior in alarm condition. • Actual value 0 Hz • Defined value • 0 Hz Failure frequency Enter frequency output value in alarm 0.0 to 1 250.0 Hz...
Page 74 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Operating mode Switch Switch out funct Fl. direct. Limit Status check Assign Assign Assign limit dir.check status Ref. Partial Mass Correct. Totalizer Mass Volume Correct. Low flow density pipe det. flow vol.flow 1/2/3...
Page 75 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Parameter Description Selection / User entry Factory setting Assign limit Select process variable for limit function. • Mass flow Mass flow • Volume flow • Corrected volume flow • Density • Reference density • Temperature •...
Page 76 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter Description Selection / User entry Factory setting Failure mode Define output behavior in alarm condition. • Actual status Open • Open • Closed Invert output signal Invert the output signal. • No • Yes 10.5.3...
Page 77 Proline Promass F 200 FOUNDATION Fieldbus Commissioning 10.5.4 Carrying out additional display configurations In the "Display" submenu you can set all the parameters involved in the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣...
Page 78 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter overview with brief description Parameter Description Selection / User entry Factory setting Format display Select how measured values are shown on • 1 value, max. size 1 value, max. size the display. • 1 bargraph + 1 value •...
Page 79 Proline Promass F 200 FOUNDATION Fieldbus Commissioning Parameter Description Selection / User entry Factory setting Language Set display language. • English English (alternatively, the • Deutsch ordered language is preset in • Français the device) • Español • Italiano • Nederlands • Portuguesa •...
Page 80 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter overview with brief description Parameter Description User interface / Selection Factory setting Operating time Indicates how long the device has been in Days (d), hours (h), minutes – operation. (m), seconds (s) Last backup...
Page 81 Proline Promass F 200 FOUNDATION Fieldbus Commissioning ‣ Simulation Assign simulation process variable Value process variable Frequency simulation Frequency value Pulse simulation Pulse value Switch output simulation Switch status Simulation device alarm Simulation diagnostic event Diagnostic event category Simulation diagnostic event...
Page 82 Commissioning Proline Promass F 200 FOUNDATION Fieldbus Parameter Prerequsite Description Selection / User Factory setting entry Pulse value The Down-count. val. option Enter the number of pulses for 0 to 65 535 is selected in the Simulation simulation. pulse output parameter. Switch output simulation –...
Page 83 Proline Promass F 200 FOUNDATION Fieldbus Commissioning The device automatically locks the write-protected parameters again if a key is not pressed for 10 minutes in the navigation and editing view. The device locks the write-protected parameters automatically after 60 s if the user skips back to the operational display mode from the navigation and editing view.
Page 84 Commissioning Proline Promass F 200 FOUNDATION Fieldbus A0013909 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables the hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables the hardware write protection.
Page 85 Proline Promass F 200 FOUNDATION Fieldbus Commissioning 10.9 Configuring the measuring device via FOUNDATION Fieldbus 10.9.1 Block configuration Preparation The correct Cff and device description files are needed for preparatory purposes. 1. Switch on the device. 2. Make a note of the DEVICE_ID.
Page 86 Commissioning Proline Promass F 200 FOUNDATION Fieldbus 5. Via the Transducer scale/XD_SCALE parameter, select the desired unit and the block input range for the process variable. The selected unit must suit the selected process variable. If the process variable does not suit the unit, the Block error/ BLOCK_ERR parameter reports Block Configuration Error and the block mode cannot be set to Auto.
Page 87 Proline Promass F 200 FOUNDATION Fieldbus Commissioning • If you have selected the Direct mode in the L_TYPE parameter, you cannot change the values and units for XD_SCALE and OUT_SCALE. • The L_TYPE, XD_SCALE and OUT_SCALE parameters can only be changed in the OOS block mode.
Page 88 Operation Proline Promass F 200 FOUNDATION Fieldbus Operation 11.1 Reading device locking status The write protection types that are currently active can be determined using the Locking status parameter. Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter...
Page 89 Proline Promass F 200 FOUNDATION Fieldbus Operation Corrected volume flow Density Reference density Temperature Parameter overview with brief description Parameter Description User interface Mass flow Displays the mass flow currently measured. Signed floating-point number Volume flow Displays the volume flow currently measured.
Page 90 Operation Proline Promass F 200 FOUNDATION Fieldbus 11.4.3 Output values The "Output values" submenu contains all the parameters needed to display the current measured values for every output. Navigation "Diagnostics" menu → Measured values → Output values ‣ Output values...
Page 91 Proline Promass F 200 FOUNDATION Fieldbus Operation Options Description Reset + totalize The totalizer is reset to 0 and the totaling process is restarted. Preset + totalize The totalizer is set to the defined start value in Preset value parameterand the totaling process is restarted.
Page 92 Operation Proline Promass F 200 FOUNDATION Fieldbus A0016357  22 Chart of a measured value trend • x-axis: depending on the number of channels selected displays 250 to 1000 measured values of a process variable. • y-axis: displays the approximate measured value span and constantly adapts this to the ongoing measurement.
Page 93 Proline Promass F 200 FOUNDATION Fieldbus Operation Parameter overview with brief description Parameter Description Selection / User entry Factory setting Assign channel 1 to 4 Assign process variable to logging channel. • Off • Mass flow • Volume flow • Corrected volume flow •...
Page 94 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting 12.1 General troubleshooting For local display Problem Possible causes Remedy Local display dark and no output Supply voltage does not match that Apply the correct supply voltage .
Page 95 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting For access Problem Possible causes Remedy No write access to parameters Hardware write protection enabled Set the write protection switch on the main electronics module to the OFF position (→  83).
Page 96 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display.
Page 97 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. A0013961 • For local display with touch control: the background lighting changes to red.
Page 98 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus The user is in the diagnostic message. 1. Press  ( symbol).  The Diagnostic list submenu opens. 2. Select the desired diagnostic event with  or  and press  .
Page 99 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic information The fault can be identified using the diagnostic information. The short text helps you by providing information about the fault. In addition, the corresponding symbol for the diagnostic behavior is displayed in front of the diagnostic information on the local display.
Page 100 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus Enabling the configuration of the diagnostic information according to FF912 For compatibility reasons, the configuration of the diagnostic information according to FOUNDATION Fieldbus Specification FF912 is not enabled when the device is delivered from the factory.
Page 101 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Weighting Status signal Allocation Diagnostic information range (factory setting) Low weighting Maintenance required (M) Sensor M000 to 199 Electronics M200 to 399 Configuration M400 to 700 Process M800 to 999 Changing the assignment of the diagnostic information The individual ranges of the diagnostic information can be assigned to another status signal.
Page 102 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus 1. Set the Resource Block to the OOS block mode. 2. Open the FD_FAIL_MAP parameter in the Resource Block. 3. Change Bit 30 to 0 in the parameter. 4. Open the FD_CHECK_MAP parameter in the Resource Block.
Page 103 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Transmitting the diagnostic information over the bus Prioritizing diagnostic information for transmission over the bus Diagnostic information is only transmitted over the bus if its priority is between 2 and 15.
Page 104 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Module connection 1. Check module connections Alarm 2. Change electronic modules Main electronic failure Change main electronic module...
Page 105 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Switch output simulation Deactivate simulation switch output C Warning Simulation diagnostic Deactivate simulation Warning event...
Page 106 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus Structure of the submenu Diagnostics → Actual diagnostics Previous diagnostics Operating time from restart Operating time Parameter overview with brief description Parameter Prerequsite Description User interface Factory setting Actual diagnostics 1 diagnostic event has...
Page 107 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  24 Illustrated using the example of the local display To call up the measures to rectify a diagnostic event: •...
Page 108 Diagnostics and troubleshooting Proline Promass F 200 FOUNDATION Fieldbus Info number Info name I1089 Power on I1090 Configuration reset I1091 Configuration changed I1092 Trend data deleted I1110 Write protection switch changed I1111 Density adjust failure I1137 Electronic changed I1151 History reset...
Page 109 Proline Promass F 200 FOUNDATION Fieldbus Diagnostics and troubleshooting Function scope of "Device reset" parameter Options Description Cancel No action is executed and the user exits the parameter. To delivery settings Every parameter for which a customer-specific default setting was ordered is reset to this customer-specific value.
Page 110 "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser Internet site: www.endress.com → Download • Specify the following details: –...
Page 111 (→  129). 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. For a list of some of the measuring and test equipment, refer to the "Accessories"...
Page 112 • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by correspondingly trained customers. • Certified devices can be converted into other certified devices by Endress+Hauser Service or at the factory only. Notes for repair and conversion For repair and modification of a measuring device, observe the following notes: •...
Page 113 • Can be read out via the Serial number parameter in the Device information submenu (→  109). 14.3 Endress+Hauser services Contact your Endress+Hauser Sales Center for information on services and spare parts. 14.4 Return The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered.
Page 114 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 115 Is used to stabilize the temperature of the fluids in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as fluids. If using oil as a heating medium, please consult with Endress+Hauser. Heating jackets cannot be used with sensors fitted with a rupture disk.
Page 116 Accessories Proline Promass F 200 FOUNDATION Fieldbus 15.4 System components Accessories Description Memograph M graphic The Memograph M graphic display recorder provides information on all relevant display recorder measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
Page 117 Proline Promass F 200 FOUNDATION Fieldbus Technical data Technical data 16.1 Application The measuring device is suitable for flow measurement of liquids and gases only. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
Page 118 To increase the accuracy of certain measured variables or to calculate the corrected volume flow for gases, the automation system can continuously write the operating pressure to the measuring device. Endress+Hauser recommends the use of a pressure transmitter for absolute pressure, e.g. Cerabar M or Cerabar S.
Page 119 Proline Promass F 200 FOUNDATION Fieldbus Technical data Fieldbus The measured values are written from the automation system to the measuring device via FOUNDATION Fieldbus. 16.4 Output Output signal Pulse/frequency/switch output Function Can be set to pulse, frequency or switch output...
Page 120 Technical data Proline Promass F 200 FOUNDATION Fieldbus FOUNDATION Fieldbus Signal encoding Manchester Bus Powered (MBP) Data transfer 31.25 KBit/s, Voltage mode Signal on alarm Depending on the interface, failure information is displayed as follows: Pulse/frequency/switch output Pulse output Failure mode Choose from: •...
Page 121: Block
Proline Promass F 200 FOUNDATION Fieldbus Technical data Galvanic isolation All outputs are galvanically isolated from one another. Protocol-specific data FOUNDATION Fieldbus Manufacturer ID 0x452B48 Ident number 0x1054 Device revision DD revision Information and files under: • www.endress.com CFF revision •...
Page 122: Table Of Contents
Technical data Proline Promass F 200 FOUNDATION Fieldbus Block Contents Output values Diagnostic Transducer Diagnostics information. Process variables (AI Channel) Block • Mass flow (11) (TRDDIAG) • Volume flow (9) • Corrected volume flow (13) • Density (14) • Reference density (15) •...
Page 123 Proline Promass F 200 FOUNDATION Fieldbus Technical data Block Number Contents Process variables (Channel) blocks Discrete Input This Block (standard functionality) receives a • Status switch output (101) Block discrete value (e.g. indicator that measuring • Low flow cutoff (103)
Page 124 Technical data Proline Promass F 200 FOUNDATION Fieldbus Minimum terminal Maximum terminal Order code for "Output" voltage voltage Option E : FOUNDATION Fieldbus, pulse/frequency/ ≥DC 9 V DC 32 V switch output For device version with SD03 local display: The terminal voltage must be increased by DC 0.5 V if backlighting is used.
Page 125: Mass Flow
Proline Promass F 200 FOUNDATION Fieldbus Technical data Depending on the temperature class, restrictions apply to the ambient temperature for device versions with overvoltage protection . For detailed information on the temperature tables, see the separate document entitled "Safety Instructions" (XA) for the device.
Page 126 Technical data Proline Promass F 200 FOUNDATION Fieldbus SI units 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 2 000 6 500 18 000 1 800 45 000 4 500 2 250 70 000 7 000...
Page 127 Proline Promass F 200 FOUNDATION Fieldbus Technical data Temperature coefficient at 0.02 %/10 K zero point (4 mA) Temperature coefficient 0.05 %/10 K with span (20 mA) Pulse/frequency output Temperature coefficient Max. ±100 ppm o.r. Influence of medium Mass flow and volume flow...
Page 128 Technical data Proline Promass F 200 FOUNDATION Fieldbus [% o.r./bar] [% o.r./psi] [mm] [in] –0.008 –0.0006 –0.009 –0.0006 Design fundamentals o.r. = of reading, o.f.s. = of full scale value BaseAccu = base accuracy in % o.r., BaseRepeat = base repeatability in % o.r.
Page 129 Proline Promass F 200 FOUNDATION Fieldbus Technical data 16.8 Environment Ambient temperature (→  21) range Temperature tables Observe the interdependencies between the permitted ambient and fluid temperatures when operating the device in hazardous areas. For detailed information on the temperature tables, see the separate document entitled "Safety Instructions"...
Page 130 Technical data Proline Promass F 200 FOUNDATION Fieldbus Pressure-temperature An overview of the pressure-temperature ratings for the process connections is ratings provided in the "Technical Information" document Secondary containment The sensor housing is filled with dry nitrogen and protects the electronics and mechanics pressure rating inside.
Page 131 Proline Promass F 200 FOUNDATION Fieldbus Technical data • The minimum recommended full scale value is approx. 1/20 of the maximum full scale value • In most applications, 20 to 50 % of the maximum full scale value can be considered ideal •...
Page 132 Technical data Proline Promass F 200 FOUNDATION Fieldbus 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight Compact version Weight in SI units All values (weight) refer to devices with EN/DIN PN 40 flanges. Weight information in [kg].
Page 133 Proline Promass F 200 FOUNDATION Fieldbus Technical data Cable entries/cable glands A0020640  27 Possible cable entries/cable glands Cable entry in transmitter housing, wall-mount housing or connection housing with internal thread M20 x Cable gland M20 x 1.5 Adapter for cable entry with internal thread G ½" or NPT ½"...
Page 134 Technical data Proline Promass F 200 FOUNDATION Fieldbus Measuring tubes • DN 8 to 80 (3/8 to 3"): stainless steel, 1.4539 (904L); manifold: stainless steel, 1.4404 (316/316L) • DN 8 to 80 (3/8 to 3"): stainless steel, Alloy C22, 2.4602 (UNS N06022); manifold: Alloy C22, 2.4602 (UNS N06022)
Page 135 Proline Promass F 200 FOUNDATION Fieldbus Technical data 16.11 Operability Local operation Via display module Order code for "Display; Operation", option C "SD02" Order code for "Display; Operation", option E "SD03" A0015546 A0015544 Operation with pushbuttons Operation with touch control Display elements •...
Page 136 Technical data Proline Promass F 200 FOUNDATION Fieldbus Via remote display and operating module FHX50 A0013137  28 Operating options via FHX50 Housing of remote display and operating module FHX50 SD02 display and operating module, push buttons: cover must be opened for operation...
Page 137 EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".
Page 138 • The device can also be operated with certified devices of other manufacturers (interoperability) Pressure Equipment • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser Directive confirms compliance with the "Essential Safety Requirements" specified in Annex I of the Pressure Equipment Directive 97/23/EC.
Page 139 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 140 Technical data Proline Promass F 200 FOUNDATION Fieldbus Standard documentation Brief Operating Instructions Measuring device Documentation code Promass F 200 KA01122D Technical Information Measuring device Documentation code Promass F 200 TI01060D Supplementary device- Safety Instructions dependent documentation Contents Documentation code...
Page 141 Proline Promass F 200 FOUNDATION Fieldbus Appendix Appendix The manufacturer-specific device parameters are listed in the index tables. FOUNDATION Fieldbus parameters: "Guideline - FOUNDATION Fieldbus Function Blocks" document (BA062S), available www.endress.com 17.1 Endress+Hauser FOUNDATION Fieldbus Parameter 17.1.1 Resource Block 2...
Page 142 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size (Bytes) MODE_BLK Writability Index Class RB2_BlockAlm Block Alarm Standard Dynamic RB2_BlockAlm_Unacknowledged Unacknowledged ENUM8 Dynamic AUTO RB2_BlockAlm_AlarmState Alarm State ENUM8 Dynamic RB2_BlockAlm_TimeStamp Time Stamp TimeValue Dynamic RB2_BlockAlm_SubCode...
Page 143 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size (Bytes) MODE_BLK Writability Index Class RB2_FdMaintActive Maintenance Active BIT_ENUM32 Dynamic RB2_FdCheckActive Check Active BIT_ENUM32 Dynamic RB2_FdFailMap Fail Map BIT_ENUM32 Static AUTO RB2_FdOffspecMap Offspec Map BIT_ENUM32 Static...
Page 144 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size (Bytes) MODE_BLK Writability Index Class RB2_FdSimulate_EnableDisable Simulate En/Disable ENUM8 Dynamic AUTO RB2_FdRecommenAct Recommended Action ENUM16 Dynamic RB2_HardwareVersion Hardware revision STRING Static RB2_FfCommVersion STRING Static RB2_RestartEnable Restart enable...
Page 145 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size (Bytes) MODE_BLK Writability Index Class RB2_FdRecommenAct Recommended Action ENUM16 Dynamic RB2_BlockErrDesc_1 Block error description BIT_ENUM32 Dynamic RB2_View4 Resource 2 View 4 VIEW4 Static RB2_StRev Static Revision...
Page 146 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDASUP_CollectionDirectory Collection Directory UINT32 Static TRDASUP_BlockErrDesc_1 Block error BIT_ENUM32 Dynamic description TRDASUP_STD_UserLevel_1 Access status ENUM16 Static tooling TRDASUP_STD_LockingState_1 Locking status BIT_ENUM16...
Page 147 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDASUP_PFS_StateSwitchOnDelay_1 Switch-on delay FLOAT Static AUTO TRDASUP_PFS_StateSwitchOffDelay_1 Switch-off delay FLOAT Static AUTO TRDASUP_PFS_StateFailsafeMode_1 Failure mode ENUM16 Static AUTO TRDASUP_PFS_StateOutValue_1 Switch status...
Page 148 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SU_MassFlow Mass flow unit ENUM16 Static AUTO SU_Mass Mass unit ENUM16 Static AUTO SU_VolumeFlow Volume flow unit ENUM16 Static AUTO SU_Volume...
Page 149 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) PFS_FrequencyMeasuringMode Measuring mode ENUM16 Static AUTO PFS_FrequencyDamping Damping output FLOAT Static AUTO PFS_FrequencyFailsafeMode Failure mode ENUM16 Static AUTO PFS_FrequencyFailsafeValue Failure frequency...
Page 150 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDIAG_SPV_CurrentEventSpecificData_1 Actual diag UINT8 Static channel TRDDIAG_SPV_CurrentTimestamp_1 Timestamp STRING Static TRDDIAG_SPV_PreviousEventCategory_1 Event category ENUM8 Static TRDDIAG_SPV_PreviousEventId_1 Previous UINT16 Static diagnostics TRDDIAG_SPV_PreviousEventSpecificData_1...
Page 151 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDIAG_VolumeFlowInput Volume flow Standard Dynamic TRDDIAG_Out2Status Status ENUM8 Dynamic FLOW_VolumeFlow Volume flow FLOAT Dynamic TRDDIAG_SU_VolumeFlow_1 Volume flow unit ENUM16 Static AUTO...
Page 152 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDIAG_HB_InputSelector1_1 Assign channel 1 ENUM16 Static AUTO TRDDIAG_HB_InputSelector2_1 Assign channel 2 ENUM16 Static AUTO TRDDIAG_HB_InputSelector3_1 Assign channel 3 ENUM16 Static AUTO...
Page 153 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDIAG_FF912StatusSelect_11 Assign status of ENUM8 Static AUTO diagnostic number TRDDIAG_FF912StatusSelect_12 Assign status of ENUM8 Static AUTO diagnostic number TRDDIAG_FF912StatusSelect_7 Assign status of...
Page 154 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDIAG_SPV_EventClassDensityMonitoring_1 Assign behavior of ENUM16 Static AUTO diagnostic no. 862 TRDDIAG_SPV_EventClassFluidInhomogeneous_1 Assign behavior of ENUM16 Static AUTO diagnostic no. 912 TRDDIAG_SPV_EventClassOscAmpLimit_1...
Page 155 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SPV_DiagItem3Timestamp Timestamp STRING Static TRDDIAG_FF912StatusSelect Assign status of ENUM8 Static AUTO diagnostic number TRDDIAG_FF912StatusSelect_2 Assign status of ENUM8 Static AUTO diagnostic number...
Page 156 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SPV_OperationHoursSinceReset Operating time STRING Dynamic from restart SPV_OperationHours Operating time STRING Dynamic STD_LockingState Locking status BIT_ENUM16 Dynamic SPV_CurrentEventCategorySeparated Status signal ENUM8...
Page 157 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SU_RefDensity Reference density ENUM16 Static AUTO unit SU_Pressure Pressure unit ENUM16 Static AUTO TRDDIAG_View4_2 View -4-1 VIEW4 Static TRDDIAG_StRev Static Revision...
Page 158 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SPV_EventClassElDynSensor Assign behavior of ENUM16 Static AUTO diagnostic no. 140 SPV_EventClassIncompHWConfiguration Assign behavior of ENUM16 Static AUTO diagnostic no. 252 SPV_EventClassZPCorrection...
Page 159 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDISP_DISP_MainMeasFormat_1 Format display ENUM16 Static AUTO TRDDISP_DISP_InputSelector01_1 Value 1 display ENUM16 Static AUTO TRDDISP_DISP_DecimalPlaces01_1 Decimal places 1 ENUM16 Static AUTO TRDDISP_DISP_InputSelector02_1...
Page 160 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDDISP_SU_CorrVolumeFlow_1 Corrected volume ENUM16 Static AUTO flow unit TRDDISP_SU_Density_1 Density unit ENUM16 Static AUTO TRDDISP_SU_RefDensity_1 Reference density ENUM16 Static AUTO unit...
Page 161 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) DISP_IsBacklightAvailable Backlight ENUM16 Static AUTO DISP_IsCloneAvailable Is clone available UINT8 Static AUTO DISP_IsRestoreAvailable Is restore UINT8 Static AUTO available DISP_FixDisplayedInput ENUM16...
Page 162 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) DISP_Value03_100Percent 100% bargraph FLOAT Static AUTO value 3 SU_VolumeFlow Volume flow unit ENUM16 Static AUTO SU_MassFlow Mass flow unit ENUM16 Static...
Page 163 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDEXP_FLOW_VolumeFlowScale_1 Volume flow FLOAT Static AUTO factor TRDEXP_FLOW_CorrVolumeFlowOffset_1 Corrected volume FLOAT Static AUTO flow offset TRDEXP_FLOW_CorrVolumeFlowScale_1 Corrected volume FLOAT Static AUTO...
Page 164 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDEXP_TransducerType Transducer Type ENUM16 Static TRDEXP_XdError Transducer Error ENUM8 Dynamic TRDEXP_BlockErrDesc_1 Block error BIT_ENUM32 Dynamic description STD_LockingState Locking status BIT_ENUM16 Dynamic...
Page 165 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDEXP_StRev Static Revision UINT16 Static TRDEXP_Strategy Strategy UINT16 Static AUTO TRDEXP_AlertKey Alert Key UINT8 Static AUTO TRDEXP_TransducerType Transducer Type ENUM16 Static...
Page 166 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDEXPIN_SPV_PowerOnCounter_1 Power on UINT32 Static AUTO TRDEXPIN_STD_GeniXMLBuildNumber_1 XML build number UINT32 Static TRDEXPIN_CFM_EmergencyModeValidity_1 ENUM16 Static TRDEXPIN_CFM_SensorEmergencyMode_1 Activate sensor ENUM16 Static AUTO...
Page 167 Proline Promass F 200 FOUNDATION Fieldbus Appendix 17.1.7 Transducer Block Heartbeat Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBT_TransducerTypeVer UINT16 Static TRDHBT_XdError Transducer Error ENUM8 Dynamic TRDHBT_CollectionDirectory Collection UINT32 Static Directory TRDHBT_BlockErrDesc_1 Block error BIT_ENUM32...
Page 168 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBT_StRev Static Revision UINT16 Static TRDHBT_TransducerType Transducer Type ENUM16 Static STD_UserLevel Access status ENUM16 Static tooling STD_SWOptionActiveOverview Software option BIT_ENUM32 Static...
Page 169 Proline Promass F 200 FOUNDATION Fieldbus Appendix 17.1.8 Transducer Block Heartbeat Results 1 Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR1_TransducerTypeVer UINT16 Static TRDHBTR1_XdError Transducer ENUM8 Dynamic Error TRDHBTR1_CollectionDirectory Collection UINT32 Static Directory TRDHBTR1_BlockErrDesc_1 Block error...
Page 170 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR1_HBTR_InputOutputSlot2Data1Value_2 Output 2 FLOAT Static actual value 1 TRDHBTR1_HBTR_InputOutputSlot2Data1Result_2 Output 2 ENUM16 Static TRDHBTR1_HBTR_ExternVerificationFlags_2 External BIT_ENUM32 Static verification flags TRDHBTR1_HBTR_VerificationCarrTempSensorResult_1 Carrier tube...
Page 171 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR1_HBTR_MassFlowActual_1 Mass flow FLOAT Static verification value TRDHBTR1_HBTR_ElectronicTemperatureActual_1 Electronic FLOAT Static temperature TRDHBTR1_HBTR_CFMVoltages_1 Supply voltage FLOAT Static TRDHBTR1_HBTR_VerificationCarrTempSensorResult_2 Carrier tube ENUM16...
Page 172 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR1_HBTR_MassFlowActual_2 Mass flow FLOAT Static verification value TRDHBTR1_HBTR_ElectronicTemperatureActual_2 Electronic FLOAT Static temperature TRDHBTR1_HBTR_CFMVoltages_2 Supply voltage FLOAT Static TRDHBTR1_STD_LockingState_1 Locking status BIT_ENUM16 Dynamic...
Page 173 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_VerificationOverallResult Overall result ENUM16 Static HBTR_VerificationSensorResult Sensor ENUM16 Static HBTR_VerificationSensElectronicResult Main ENUM16 Static electronic module HBTR_VerificationInputOutputResult I/O module ENUM16 Static HBTR_VerificationSupplyVoltageResult...
Page 174 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_InputOutputSlot2Data1Value Output 2 FLOAT Static actual value 1 HBTR_InputOutputSlot2Data1Result Output 2 ENUM16 Static SU_VolumeFlow Volume flow ENUM16 Static AUTO unit SU_MassFlow...
Page 175 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_TemperatureActual Process FLOAT Static temperature verification value HBTR_MassFlowActual Mass flow FLOAT Static verification value HBTR_ElectronicTemperatureActual Electronic FLOAT Static temperature HBTR_VerificationProcTempSensResult Measuring...
Page 176 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_MassFlowActual Mass flow FLOAT Static verification value HBTR_ElectronicTemperatureActual Electronic FLOAT Static temperature 17.1.9 Transducer Block Heartbeat Results 2 Relative Name Label...
Page 177 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR2_HBTR_VerificationSensorSymmetryResult_3 Pickup coil ENUM16 Static symmetry TRDHBTR2_HBTR_VerificationSensorLeakageResult_3 Sensor circuit ENUM16 Static leakage TRDHBTR2_HBTR_VerificationLatSensorFreqResult_3 Frequency ENUM16 Static lateral mode TRDHBTR2_HBTR_VerificationZeroTrackingResult_3 Zero point...
Page 178 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR2_HBTR_VerificationSensElectronicResult_4 Main ENUM16 Static electronic module TRDHBTR2_HBTR_VerificationInputOutputResult_4 I/O module ENUM16 Static TRDHBTR2_HBTR_VerificationSupplyVoltageResult_4 Supply voltage ENUM16 Static TRDHBTR2_HBTR_ExternalDeviceInfo_4 External STRING Static device...
Page 179 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR2_HBTR_DampingActual_4 Damping FLOAT Static verification value TRDHBTR2_HBTR_DensityActual_4 Density FLOAT Static verification value TRDHBTR2_HBTR_TemperatureActual_4 Process FLOAT Static temperature verification value TRDHBTR2_HBTR_MassFlowActual_4 Mass flow...
Page 180 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_ExternVerificationFlags External BIT_ENUM32 Static verification flags HBTR_VerificationCarrTempSensorResult Carrier tube ENUM16 Static temperature sensor HBTR_VerificationLatSensorFreqResult Frequency ENUM16 Static lateral mode HBTR_VerificationDateTime Date/time...
Page 181 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_InputOutputSlot2Data1Value Output 2 FLOAT Static actual value 1 HBTR_InputOutputSlot2Data1Result Output 2 ENUM16 Static HBTR_ExternalDeviceInfo External STRING Static device information HBTR_InputOutputSlot2Type Slot 2 Modul...
Page 182 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_MeasCarrTubeTemp Carrier ENUM16 Static Temperature Measure supported HBTR_DampingActual Damping FLOAT Static verification value HBTR_DensityActual Density FLOAT Static verification value HBTR_TemperatureActual Process...
Page 183 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_DensityActual Density FLOAT Static verification value HBTR_TemperatureActual Process FLOAT Static temperature verification value HBTR_MassFlowActual Mass flow FLOAT Static verification value HBTR_ElectronicTemperatureActual...
Page 184 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR3_HBTR_VerificationCarrTempSensorResult_5 Carrier tube ENUM16 Static temperature sensor TRDHBTR3_HBTR_VerificationProcTempSensResult_5 Measuring ENUM16 Static tube temperature sensor TRDHBTR3_HBTR_VerificationSensorCoilResult_5 Pickup coil ENUM16 Static TRDHBTR3_HBTR_VerificationSensorSymmetryResult_5 Pickup coil...
Page 185 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR3_HBTR_VerificationDateTime_6 Date/time STRING Static TRDHBTR3_HBTR_VerificationCounter_6 Verification ID UINT16 Static TRDHBTR3_HBTR_OperationHours_6 Operating STRING Static time TRDHBTR3_HBTR_VerificationOverallResult_6 Overall result ENUM16 Static TRDHBTR3_HBTR_VerificationSensorResult_6 Sensor...
Page 186 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR3_HBTR_ReferenceClockDeviation_6 Reference FLOAT Static clock deviation TRDHBTR3_HBTR_ReferenceTempDeviation_6 Reference FLOAT Static temperature deviation TRDHBTR3_HBTR_MeasCarrTubeTemp_6 Carrier ENUM16 Static Temperature Measure supported TRDHBTR3_HBTR_DampingActual_6 Damping...
Page 187 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_VerificationOverallResult Overall result ENUM16 Static HBTR_VerificationSensorResult Sensor ENUM16 Static HBTR_VerificationSensElectronicResult Main ENUM16 Static electronic module HBTR_VerificationInputOutputResult I/O module ENUM16 Static HBTR_VerificationSupplyVoltageResult...
Page 188 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) STD_UserLevel Access status ENUM16 Static tooling STD_SWOptionActiveOverview Software BIT_ENUM32 Static option overview HBTR_ExternalDeviceInfo External STRING Static device information HBTR_InputOutputSlot2Type Slot 2 Modul...
Page 189 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_LateralSensorFreqDeviation Actual FLOAT Static frequency lateral mode HBTR_ReferenceClockDeviation Reference FLOAT Static clock deviation HBTR_ReferenceTempDeviation Reference FLOAT Static temperature deviation HBTR_MeasCarrTubeTemp Carrier...
Page 190 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_ReferenceTempDeviation Reference FLOAT Static temperature deviation HBTR_MeasCarrTubeTemp Carrier ENUM16 Static Temperature Measure supported HBTR_DampingActual Damping FLOAT Static verification value HBTR_DensityActual Density...
Page 191 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR4_HBTR_InputOutputSlot2Type_7 Slot 2 Modul ENUM16 Static Type TRDHBTR4_HBTR_InputOutputSlot2Data1Value_7 Output 2 FLOAT Static actual value 1 TRDHBTR4_HBTR_InputOutputSlot2Data1Result_7 Output 2 ENUM16 Static TRDHBTR4_HBTR_ExternVerificationFlags_7...
Page 192 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR4_HBTR_TemperatureActual_7 Process FLOAT Static temperature verification value TRDHBTR4_HBTR_MassFlowActual_7 Mass flow FLOAT Static verification value TRDHBTR4_HBTR_ElectronicTemperatureActual_7 Electronic FLOAT Static temperature TRDHBTR4_HBTR_CFMVoltages_7 Supply voltage...
Page 193 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR4_HBTR_VerificationReferenceTempResult_8 Reference ENUM16 Static temperature TRDHBTR4_HBTR_SensorSymmetryDeviation_8 Pickup coils FLOAT Static symmetry deviation TRDHBTR4_HBTR_ZeroTrackingDeviation_8 Zero point FLOAT Static tracking deviation TRDHBTR4_HBTR_LateralSensorFreqDeviation_8 Actual...
Page 194 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) STD_LockingState Locking status BIT_ENUM16 Dynamic TRDHBTR4_View2 View -2- VIEW2 Static TRDHBTR4_StRev Static Revision UINT16 Static TRDHBTR4_TransducerType Transducer ENUM16 Static Type HBTR_VerificationDateTime...
Page 195 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHBTR4_XdError Transducer ENUM8 Dynamic Error STD_LockingState Locking status BIT_ENUM16 Dynamic TRDHBTR4_View4 View -4- VIEW4 Static TRDHBTR4_StRev Static Revision UINT16 Static TRDHBTR4_Strategy...
Page 196 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_VerificationReferenceClockResult Reference ENUM16 Static clock HBTR_VerificationReferenceTempResult Reference ENUM16 Static temperature HBTR_SensorSymmetryDeviation Pickup coils FLOAT Static symmetry deviation HBTR_ZeroTrackingDeviation Zero point FLOAT...
Page 197 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) HBTR_ZeroTrackingDeviation Zero point FLOAT Static tracking deviation HBTR_LateralSensorFreqDeviation Actual FLOAT Static frequency lateral mode HBTR_ReferenceClockDeviation Reference FLOAT Static clock deviation HBTR_ReferenceTempDeviation...
Page 198 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHROM_HB_TrendStorageTime_1 Trend storage UINT32 Static time TRDHROM_HB_TrendSupportedPackageSize_1 UINT8 Static TRDHROM_HB_MaxTrendEntries_1 UINT16 Static TRDHROM_STD_CustomizedData_1 Customized UINT8 Static TRDHROM_STD_DeleteCustomizedData_1 Reset ordered ENUM16 Static...
Page 199 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHROM_F32Entry4 floatEntry 4 FLOAT Static AUTO TRDHROM_Trigger Trigger UINT8 Static AUTO TRDHROM_StatusPrepareCtrl Status Prepare Standard Static Ctrl TRDHROM_StatusTransactionId UINT8 Static TRDHROM_StatusBdtVersion...
Page 200 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHROM_TimeStamp3 STRING Static TRDHROM_EventId3 UINT16 Static TRDHROM_EventSpecificData3 UINT8 Static TRDHROM_EventCategory3 UINT8 Static TRDHROM_EventClass3 UINT8 Static TRDHROM_TimeStamp4 STRING Static TRDHROM_EventId4 UINT16 Static...
Page 201 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDHROM_StRev Static Revision UINT16 Static TRDHROM_BlockErr Block Error BIT_ENUM16 Dynamic TRDHROM_TransducerType Transducer Type ENUM16 Static TRDHROM_XdError Transducer Error ENUM8 Dynamic TRDHROM_BlockErrDesc_1...
Page 202 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSRVIF_MDI_ModuleAvailable_1 Resource UINT8 Static available TRDSRVIF_MDI_ModuleName_1 Module name STRING Static AUTO TRDSRVIF_MDI_ModuleSerialNumber_1 Serial number STRING Static AUTO TRDSRVIF_MDI_ModuleBootloaderRevision_1 Bootloader UINT32 Static...
Page 203 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSRVIF_STD_LockingState_1 Locking status BIT_ENUM16 Dynamic TRDSRVIF_STD_SWOptionActiveOverview_1 Software option BIT_ENUM32 Static overview TRDSRVIF_View1 View -1- VIEW1 Dynamic TRDSRVIF_StRev Static Revision UINT16 Static...
Page 204 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSRVIF_Strategy Strategy UINT16 Static AUTO TRDSRVIF_AlertKey Alert Key UINT8 Static AUTO TRDSRVIF_TransducerType Transducer Type ENUM16 Static MDI_ModuleSerialNumber Serial number STRING Static...
Page 205 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSRVSB_STD_LockingState_1 Locking status BIT_ENUM16 Dynamic TRDSRVSB_STD_SWOptionActiveOverview_1 Software option BIT_ENUM32 Static overview TRDSRVSB_CFM_DensityAdjustControl_1 Execute density ENUM16 Static AUTO adjustment TRDSRVSB_CFM_DensityAdjustState_1 ENUM16 Static...
Page 206 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSRVSB_CFM_Frequency_1 Oscillation FLOAT Dynamic frequency TRDSRVSB_CFM_Amplitude_1 Oscillation FLOAT Dynamic amplitude TRDSRVSB_CFM_Damping_1 Oscillation FLOAT Dynamic damping TRDSRVSB_CFM_Asymmetry_1 Signal asymmetry FLOAT Dynamic TRDSRVSB_CFM_ElectronicsTemperature_1...
Page 207 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) SU_Density Density unit ENUM16 Static AUTO Dev_DateTimeFormat Date/time format ENUM16 Static AUTO Dev_NominalDiameter Nominal diameter STRING Static AUTO Dev_CalTimeString Calibration date/...
Page 208 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) CFM_DensityAdjustProgress Adjustment in FLOAT Static progress CFM_DensityAdjustSetValue1 Density setpoint 1 FLOAT Static AUTO CFM_DensityAdjustSetValue2 Density setpoint 2 FLOAT Static AUTO CFM_DensityFactor...
Page 209 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDSUP_FLOW_RefDensityForcing_1 Corrected volume ENUM16 Static AUTO flow calculation TRDSUP_FLOW_ForcedRefDensity_1 Fixed reference FLOAT Static AUTO density TRDSUP_FLOW_LinearExpansionCoeff_1 Linear expansion FLOAT Static AUTO...
Page 210 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) CFM_GasType Select gas type ENUM16 Static AUTO CFM_RefSoundVelocity Reference sound FLOAT Static AUTO velocity CFM_TempCoeffSVel Temperature FLOAT Static AUTO coefficient sound...
Page 211 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) STD_LockingState Locking status BIT_ENUM16 Dynamic TRDSUP_View4 View -4- VIEW4 Static TRDSUP_StRev Static Revision UINT16 Static TRDSUP_Strategy Strategy UINT16 Static AUTO TRDSUP_AlertKey...
Page 212 Appendix Proline Promass F 200 FOUNDATION Fieldbus Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TRDTIC_STD_SWOptionActiveOverview_1 Software option BIT_ENUM32 Static overview TRDTIC_TIC_OverflowValue_3 Totalizer overflow FLOAT Dynamic AUTO TRDTIC_TIC_TotUnit_3 Unit totalizer ENUM16 Static AUTO TRDTIC_TIC_Control_3 Control Totalizer...
Page 213 Proline Promass F 200 FOUNDATION Fieldbus Appendix Relative Name Label Data type Storage Size MODE_BLK Writability Index Class (Bytes) TIC_FailsafeMode Failure mode ENUM16 Static AUTO TIC_SumMode Totalizer operation ENUM16 Static AUTO mode TIC_Channel Assign process ENUM16 Static AUTO variable TIC_TotUnit...
Page 214 Appendix Proline Promass F 200 FOUNDATION Fieldbus 17.2.1 "Operation" menu Navigation  Operation  Operation (→  88) Access status display Locking status ‣ (→  62) Display Format display (→  63) Contrast display Backlight (→  79) Display interval (→...
Page 215 Proline Promass F 200 FOUNDATION Fieldbus Appendix Density unit (→  59) Reference density unit (→  59) Temperature unit (→  59) Length unit (→  59) Pressure unit (→  59) ‣ Select medium (→  60) Select medium (→...
Page 216 Appendix Proline Promass F 200 FOUNDATION Fieldbus 0% bargraph value 3 (→  64) 100% bargraph value 3 (→  64) Value 4 display (→  64) ‣ Low flow cut off (→  65) (→  65) Assign process variable On value low flow cutoff (→...
Page 217 Proline Promass F 200 FOUNDATION Fieldbus Appendix Assign limit (→  75) Assign flow direction check (→  75) Assign status (→  75) Mass flow unit (→  72) Mass unit (→  70) Volume flow unit (→  72) Volume unit (→...
Page 218 Appendix Proline Promass F 200 FOUNDATION Fieldbus Measuring value at minimum (→  72) frequency Measuring value at maximum (→  72) frequency Failure mode (→  73) (→  73) Failure frequency (→  75) Switch-on value Switch-off value (→...
Page 219 Proline Promass F 200 FOUNDATION Fieldbus Appendix 0% bargraph value 3 (→  64) 100% bargraph value 3 (→  64) Decimal places 3 (→  78) Value 4 display (→  64) Decimal places 4 (→  78) Language (→...
Page 220 Appendix Proline Promass F 200 FOUNDATION Fieldbus Configuration management (→  80) Comparison result (→  80) ‣ Administration ‣ Define access code (→  82) Define access code Confirm access code Restart 17.2.3 "Diagnostics" menu Navigation  Diagnostics ...
Page 221: Volume Flow
Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Device information (→  109) Device tag (→  109) Serial number (→  109) Firmware version (→  109) Order code (→  109) Extended order code 1 (→  110) Extended order code 2 (→...
Page 222 Appendix Proline Promass F 200 FOUNDATION Fieldbus ‣ Analog inputs (→  62) ‣ Analog input 1 to 6 Block tag (→  62) Channel (→  62) Status Value Units index ‣ Digital inputs ‣ Digital input 1 to 2...
Page 223 Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Heartbeat ‣ Performing verification Year Month Hour AM/PM Minute Verification mode External device information Start verification Status Measured values Output values Overall result ‣ Verification results Date/time Verification ID Operating time Overall result...
Page 224 Appendix Proline Promass F 200 FOUNDATION Fieldbus Value process variable (→  81) Frequency simulation (→  81) Frequency value (→  81) Pulse simulation (→  81) (→  82) Pulse value Switch output simulation (→  82) Switch status (→...
Page 225 Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Discrete inputs (→  236) ‣ Analog outputs (→  236) ‣ Discrete outputs (→  237) ‣ Application (→  237) ‣ Diagnostics (→  238) "System" submenu Navigation  Expert → System ‣...
Page 226 Appendix Proline Promass F 200 FOUNDATION Fieldbus Display damping (0094) (→  79) Header (0097) (→  79) Header text (0112) (→  79) Separator (0101) (→  79) Contrast display (0105) Backlight (0111) (→  79) Access status display (0091) ‣...
Page 227 Proline Promass F 200 FOUNDATION Fieldbus Appendix Assign behavior of diagnostic no. 830 (0715) Assign behavior of diagnostic no. 831 (0716) Assign behavior of diagnostic no. 832 (0675) Assign behavior of diagnostic no. 833 (0676) Assign behavior of diagnostic no. 834 (0677) Assign behavior of diagnostic no.
Page 228 Appendix Proline Promass F 200 FOUNDATION Fieldbus Assign status of diagnostic number 835 (11005) Assign status of diagnostic number 862 (11008) Assign status of diagnostic number 912 (11009) Assign status of diagnostic number 913 (11010) ‣ Administration ‣ Define access code (→...
Page 229: Totalizer
Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Totalizer (→  76) Totalizer value 1 to 3 (0911–1 to 3) (→  89) Totalizer overflow 1 to 3 (0910–1 to 3) (→  89) ‣ Output values (→  90) Terminal voltage 1 (0662) (→...
Page 230 Appendix Proline Promass F 200 FOUNDATION Fieldbus Temperature damping (1807) ‣ Low flow cut off (→  65) Assign process variable (1837) (→  65) On value low flow cutoff (1805) (→  65) (→  65) Off value low flow cutoff (1804) Pressure shock suppression (1806) (→...
Page 231 Proline Promass F 200 FOUNDATION Fieldbus Appendix Linear expansion coefficient (1817) (→  70) Square expansion coefficient (1818) (→  70) ‣ Sensor adjustment (→  68) Installation direction (1809) (→  68) ‣ Zero point adjustment Zero point adjustment control (2587) Adjustment in progress (2588) (→...
Page 232 Appendix Proline Promass F 200 FOUNDATION Fieldbus Reference density factor (1827) Temperature offset (1830) Temperature factor (1829) ‣ Calibration Calibration factor (2431) Zero point (2437) Nominal diameter (2807) C 0 (2469) C 1 (2574) C 2 (2575) C 3 (2576)
Page 233 Proline Promass F 200 FOUNDATION Fieldbus Appendix AM/PM (2813) Minute (2844) Confirm settings (2847) ‣ Logbook Calibration counter (2820) Select calibration log entry (2823) Timestamp (2824) Calibration factor (2825) ‣ Testpoints Oscillation frequency (2515) Oscillation amplitude (2516) Oscillation damping (2517)
Page 234 Appendix Proline Promass F 200 FOUNDATION Fieldbus Assign frequency output (0478) (→  72) Minimum frequency value (0453) (→  72) Maximum frequency value (0454) (→  72) Measuring value at minimum (→  72) frequency (0476) (→  72)
Page 235 Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Communication Device address (11061) ‣ Resource block Block tag (10702) Target mode (10728) Actual mode (10725) Manufacturer Id (10721) Device Type (10711) (→  110) (→  110) Device Revision (10710) DD Revision (10709)
Page 236 Appendix Proline Promass F 200 FOUNDATION Fieldbus ‣ Discrete inputs ‣ Discrete input 1 to 2 Block tag (6851–1 to 2) Status (6853–1 to 2) Value (6854–1 to 2) Channel (6852–1 to 2) Process Value Filter Time (6855–1 to 2) ‣...
Page 237 Proline Promass F 200 FOUNDATION Fieldbus Appendix ‣ Discrete outputs ‣ Multiple discrete output Block tag (11252) Status Options (11268) Fault State Time (11255) Fault State Value Discrete 1 (11256) Fault State Value Discrete 2 (11257) Fault State Value Discrete 3 (11258)
Page 238 Appendix Proline Promass F 200 FOUNDATION Fieldbus Preset value 1 to 3 (0913–1 to 3) (→  91) Failure mode (0901–1 to 3) (→  76) ‣ Inventory counter Totalizer value (0971) Totalizer overflow (0972) ‣ Diagnostics (→  105) Actual diagnostics (0691) (→...
Page 239 Proline Promass F 200 FOUNDATION Fieldbus Appendix Device Revision (10710) (→  110) DD Revision (10709) Firmware version (10792) (→  109) Hardware revision (10793) ITK Version (10794) Order code (10795) (→  109) Extended order code 1 (10796) (→  110) (→...
Page 240 Appendix Proline Promass F 200 FOUNDATION Fieldbus Serial number (0071) Bootloader revision (0073) ‣ Display module Software revision (0072) Build no. software (0079) Hardware revision (0074) Module name (0077) Serial number (0071) Bootloader revision (0073) ‣ Data logging (→  91) Assign channel 1 (0851) (→...
Page 241 Proline Promass F 200 FOUNDATION Fieldbus Appendix Maximum value (0663) Average value (0698) ‣ Main electronic temperature Minimum value (2457) Maximum value (2456) ‣ IO module temperature Minimum value (0688) Maximum value (0665) Average value (0697) ‣ Medium temperature Minimum value (2502) Maximum value (2501) ‣...
Page 242 Appendix Proline Promass F 200 FOUNDATION Fieldbus ‣ Oscillation damping Minimum value (2586) Maximum value (2585) ‣ Signal asymmetry Minimum value (2551) Maximum value (2476) ‣ Heartbeat ‣ Heartbeat base settings Plant operator (2754) Location (2755) ‣ Performing verification Year (2846)
Page 243 Proline Promass F 200 FOUNDATION Fieldbus Appendix Output values (12103) Overall result (12149) ‣ Verification results Date/time (12142) Verification ID (12141) Operating time (12126) Overall result (12149) Sensor (12152) Main electronic module (12151) I/O module (12145) ‣ Simulation (→  80) Assign simulation process variable (→...
Page 244 Index Proline Promass F 200 FOUNDATION Fieldbus Index Define access code ......82 Degree of protection ..... 32, 129 Access authorization to parameters Density .
Page 245 Proline Promass F 200 FOUNDATION Fieldbus Index Electrical connection Hardware write protection ..... 83 Commubox FXA291 ....48, 137 Help text Degree of protection .
Page 246 Index Proline Promass F 200 FOUNDATION Fieldbus Maximum measured error ....125 Measured variables Operable flow range ......118 see Process variables Operating elements .
Page 247 Proline Promass F 200 FOUNDATION Fieldbus Index Process connections ......134 Switch output ......73 Process variables System units .
Page 248 Index Proline Promass F 200 FOUNDATION Fieldbus In the status area of the local display ... 36 Partially filled pipe detection ....66 In the text and numeric editor .
Page 250 www.addresses.endress.com...
