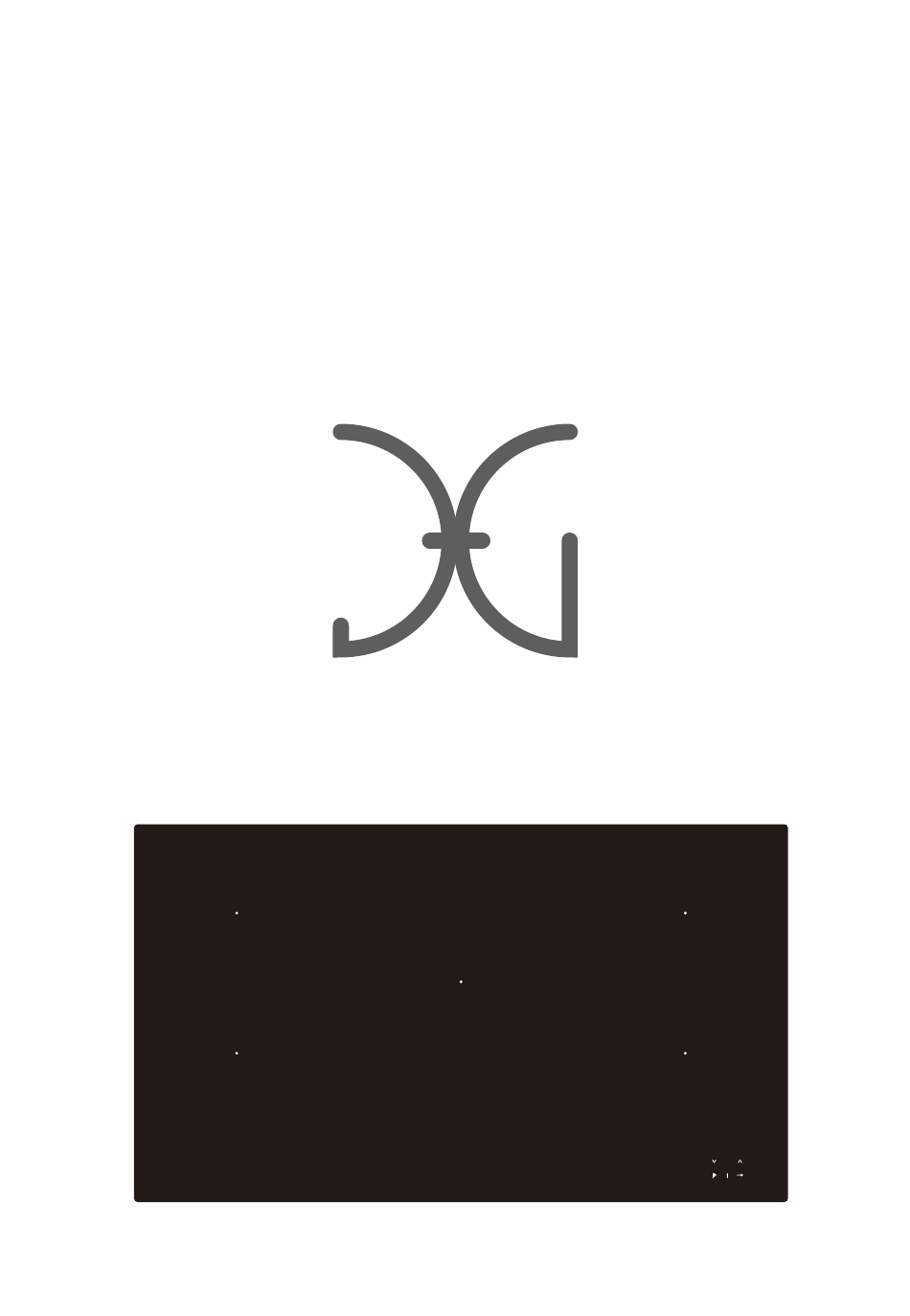

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: JI 9021 F K110000580...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 4 WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. CAUTION: The cooking process has to be supervised.
-
Page 5: Product Overview
Product Overview Top View... -
Page 6: User Interface
User interface Reference Description ON/OFF key Child lock key Pause key Timer control keys Power slider regulating keys Power slider regulating indicator Boost control key Boost control indicator Cooking functions key Cooking function indicator... - Page 7 Heating Zone Power J I9021 F Heating Zone (220-240V~ 50/60Hz) 2000/2800W Booster Front left zone 1500/2000W Booster Rear left zone 2300W/3000W Booster Central zone Rear Right zone 1500/2000W Booster Front Right zone 2000/2800W Booster Total Rating Power 9000W (230 V~)
-
Page 8: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 9: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 10: Special Functions
Special functions Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically. Detection of Small Articles When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. -
Page 11: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF key A for 3 secnds. After power on, the buzzer beeps once, all displays show “ – “, indicating that the induction hob has entered the state of standby mode. 2. -
Page 12: When You Have Finished Cooking
• the pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minutes if no suitable pan is placed on it. -
Page 13: Flexible Area
-Heating or keeping warm about 70 -Simmering , temperature close to boiling ,useful for slow cooking FLEXIBLE AREA • This area can be used as a single zone, accordingly to the cooking needs anytime. • Flexible area is made of two independent inductors that can be controlled separately. - Page 14 1. To activate the flexible area as a single big zone, simply press the flexible area’s power slider regulating key which is located left. 2. The flexible zone indicator next to the power lever indicator will be light 3. According to the heating zone where the pan is placed, adjust heat setting by touching the front left zone slider regulating key(E) control.
-
Page 15: Using The Timer
Using Child Lock Function • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the OFF control are disabled. To lock the controls Touch the child lock key for 3 seconds. - Page 16 can rea ze the sett ng of t m ng from 1 to 99 m nutes. Hint: Touch the “ “ or ” ” control of the timer once to decrease or increase by 1 minute. Touch and hold the “ “or ” ” control of the timer to decrease or increase by 10 minutes.
-
Page 17: Using The Pause Function
expires; or else the indicator will keep on lighting until the timer expires. 5. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously. 4. When using “the timer as an alarm” and “the timer to switch off the zones ”... -
Page 18: Failure Display And Inspection
Failure Display and Inspection If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Error Possible Cause What to do Message No pot or pot not suitable; Replace the pot; ER03 Water or pot on the glass over the control Clean the user interface The connection between the display board and the... -
Page 19: Installation
Installation Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 20 Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements • the work surface is made of a heat-resistant material • if the hob is installed above an oven, the oven has a built-in cooling fan •...
- Page 21 • The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Installation...
- Page 22 Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3.
-
Page 23: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. the domestic wiring system is suitable for the power drawn by the hob. 2. - Page 24 This appliance is labeled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
