Summary of Contents for Silverline JG3001P

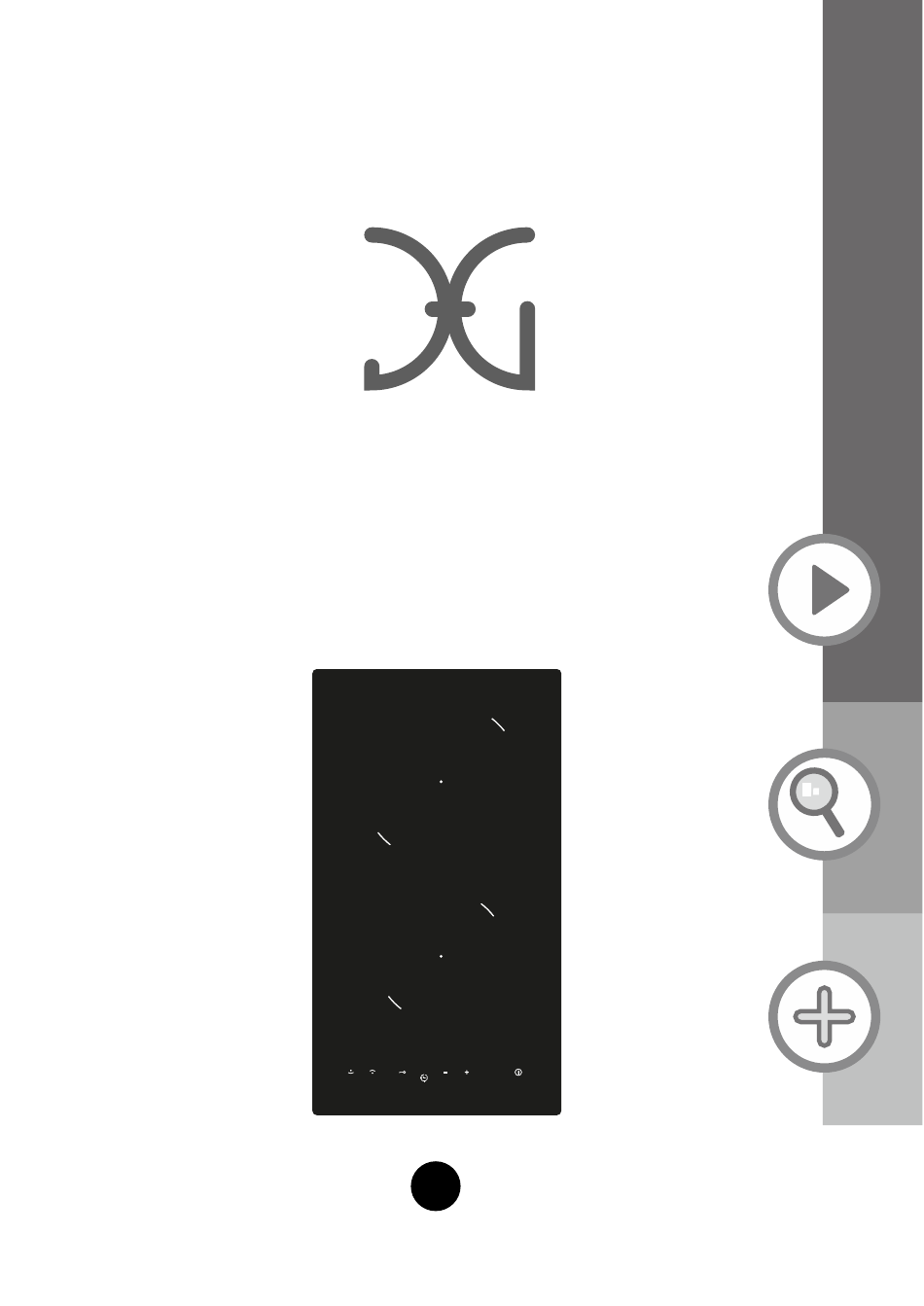

- Page 1 User Manual T ouch Control Ceram�c Hob JG3001P K110000065...
- Page 2 [01] x 1 [03] x 4 [02] x 4 Note: Items 2 and 3 are pre-f�tted �n the factory there �s no assembly of these components requ�red. [04] x 1...
- Page 3 T ouch Control Ceram�c Hob JG3001P Installat�on Installat�on...
-
Page 4: Table Of Contents
Let's get started ... Gett�ng started... Safety Before you start more deta�l... Product funct�ons Operat�on Care ma�ntenance Troubleshoot�ng Recycl�ng d�sposal Techn�cal legal �nformat�on Append�x Installat�on... -
Page 5: Gett�Ng Started
Gett�ng Started ... Safety Before start... - Page 6 Safety These �nstruct�ons are for your safety. Please read through them thoroughly pr�or to �nstallat�on and reta�n them for future reference. • All �nstallat�on work must be carr�ed out by a competent person or qual�f�ed electr�c�an. • Th�s appl�ance must be �nstalled correctly by a su�tably qual�f�ed person, str�ctly follow�ng the manufacturer’s �nstruct�ons.
- Page 7 Safety Make sure that the power cord �s not caught under or �n the appl�ance and avo�d damage to the power cable. Do not allow the electr�c cables to touch the hot parts of the appl�ance. Do not �nstall the appl�ance outdoors �n a damp place or �n an area wh�ch may be prone to water eaks such as under or near a s�nk un�t In the vent of a water leak allow the mach�ne to dry aturally.
- Page 8 Safety The Manufacturer decl�nes all l�ab�l�ty for personal or mater�al damage as a result of m�suse or �ncorrect �nstallat�on of th�s appl�ance. Th�s appl�ance can be used by ch�ldren aged from 8 years and above and persons w�th reduced phys�cal, sensory or mental capab�l�t�es or lack of exper�ence and knowledge �f they have been g�ven superv�s�on or �nstruct�on concern�ng use of the appl�ance �n a safe way...
- Page 9 Before you start Before you start To avo�d the r�sks that are always present when you use an electr�cal appl�ance �t �s �mportant that th�s appl�ance �s �nstalled correctly and that you read the safety �nstruct�ons carefully to avo�d m�suse and hazards. Please keep th�s �nstruct�on booklet for future reference and pass �t on to any future owners.
-
Page 10: In More Deta�L
more deta�l... Product funct�ons Operat�on Care ma�ntenance Troubleshoot�ng Recycl�ng d�sposal Techn�cal legal �nformat�on... -
Page 11: Product Funct�Ons
Operat�on Product funct�ons > The ceram�c hob caters for all k�nd of cook�ng, w�th �ts rad�ant heat cook�ng zones and �ts electron�c touch controls and mult�-funct�ons, mak�ng �t the �deal cho�ce for the modern fam�ly. > The ceram�c hob �s extremely user-fr�endly, durable and safe. Spec�al funct�ons Protect�on from over-heat�ng >... -
Page 12: Operat�On
Operat�on The follow�ng shows how to reduce total env�ronmental �mpact (e.g. energy use)of the cook�ng process). 1. Use su�table s�ze of pan for cook�ng. 2. Cover the pan w�th l�d �f poss�ble dur�ng cook�ng. 3. Choose pan wh�ch has better reta�n�ng heat capac�ty. 4. - Page 13 Operat�on Operat�on Touch sens�t�ve keys. All operat�ons can be performed us�ng touch sens�t�ve keys (capac�t�ve sensors) located on the front of the ceram�c glass (control panel). Each key has a correspond�ng d�splay. All act�ons are conf�rmed by an aud�ble beep. Preparat�on before use >When the power �s sw�tched on, the buzzer w�ll sound once and all the �nd�cators w�ll sw�tch on for one second and then sw�tch...
- Page 14 Operat�on Touch the key E " ) " for 3 seconds The t�mer �nd�cator w�ll show Loc" " Make sure the hob �s turned on. 2 Touch the key E for 3 seconds You can now start us�ng your hob. You can set the t�mer to turn one cook�ng zone off after the set t�me �s up.
-
Page 15: Care And Ma�Ntenance
Care and ma�ntenance Warn�ng Always sw�tch off the electr�c�ty supply before perform�ng ma�ntenance work. In the event of a fault, contact customer serv�ces. Care and ma�ntenance Care Damaged power cables should be replaced by a competent person or qual�f�ed electr�c�an. For domest�c use only. - Page 16 Care and ma�ntenance Avo�d bang�ng pots and pans down on the hob. The ceram�c surface �s tough but not unbreakable. Do not put detergents or flammable mater�als beneath the hob. Care and ma�ntenance Appl�ance cleanl�ness Caut�on • Avo�d rubb�ng w�th any abras�ve or w�th the base of the pans, etc, as th�s w�ll wear the mark�ngs on the top of the ceram�c hob over t�me.
-
Page 17: Troubleshoot�Ng
Troubleshoot�ng Troubleshoot�ng If an problem occurs, the �nduct�on hob w�ll enter the protect�ve state automat�cally and d�splay correspond�ng protect�ve codes: Erro r Poss�ble Cause What to do Message Release the key and then the Press any key more than 10 seconds appl�ance reset automat�cally The temperature �ns�de the appl�ance �s too Stop and cool�ng the appl�ance... -
Page 18: Recycl�Ng And D�Sposal
Recycl�ng and D�sposal Recycl�ng and D�sposal Env�ronmental Protect�on Waste electr�cal products should not be d�sposed of w�th household waste. Please recycle where fac�l�t�es ex�st. Check w�th your Local Author�ty or reta�ler for recycl�ng adv�ce. The symbol on the product or �ts packag�ng �nd�cates that th�s product cannot be treated as normal household waste. -
Page 19: Techn�Cal And Legal �Nformat�On
Techn�cal and legal �nformat�on All �nstallat�on work must be carr�ed out by a competent person or qual�f�ed electr�c�an. Before connect�ng the ma�ns supply ensure that the ma�ns voltage corresponds to the voltage on the rat�ng plate �ns�de the cooker hood. Warn�ng: THIS APPLIANCE MUST BE EARTHED . - Page 20 Techn�cal and legal �nformat�on Electr�cal Requ�rements Any permanent electr�cal �nstallat�on must comply w�th the latest I.E.E. Regulat�ons and local electr�c�ty company regulat�ons. For your own safety a qual�f�ed electr�c�an or contractor who �s on the roll of the Nat�onal Inspect�on Counc�l for Electr�cal Installat�on Contract�ng (NICEIC) should undertake the electr�cal �nstallat�on.
-
Page 21: Append�X
Append�x Installat�on... - Page 22 Installat�on Hob �nstallat�on Caut�on The ceram�c hob must be �nstalled by a su�tably qual�f�ed person. Never try to �nstall the appl�ance yourself. The ceram�c hob must not be �nstalled above refr�gerators, freezers, wash�ng mach�nes or tumble dryers. The wall and the area above the hob should be able to w�thstand heat.
- Page 23 Installat�on Clearance 55mm At least 150mm...
- Page 24 Installat�on Techn�cal Spec�f�cat�on Cook�ng zones 2 zones Supply voltage 220-240V~ Total power 3000W (230V~) Product s�ze L×W×H (mm) 290×520×60 Bu�ld-�n d�mens�on A×B (mm) 260×490 We�ght and D�mens�ons are approx�mate. Because we cont�nually str�ve to �mprove our products we may change spec�f�cat�ons and des�gns w�thout pr�or not�ce.
- Page 25 Installat�on �g. [02] [0 ] 4 x 1 Stretch out the suppl�ed seal along the unders�de edge of the hob, ensur�ng the ends overlap.
- Page 26 Installat�on f�g 3 f�g 4 Do not use adhes�ve to f�x the hob �nto the worktop. Once the seal �s f�tted pos�t�on the hob �nto the cutout �n the worktop. Apply gentle downwards pressure onto the hob to push �t �nto the worktop ensur�ng a good seal around the outer edge (f�g.
- Page 27 Notes...
