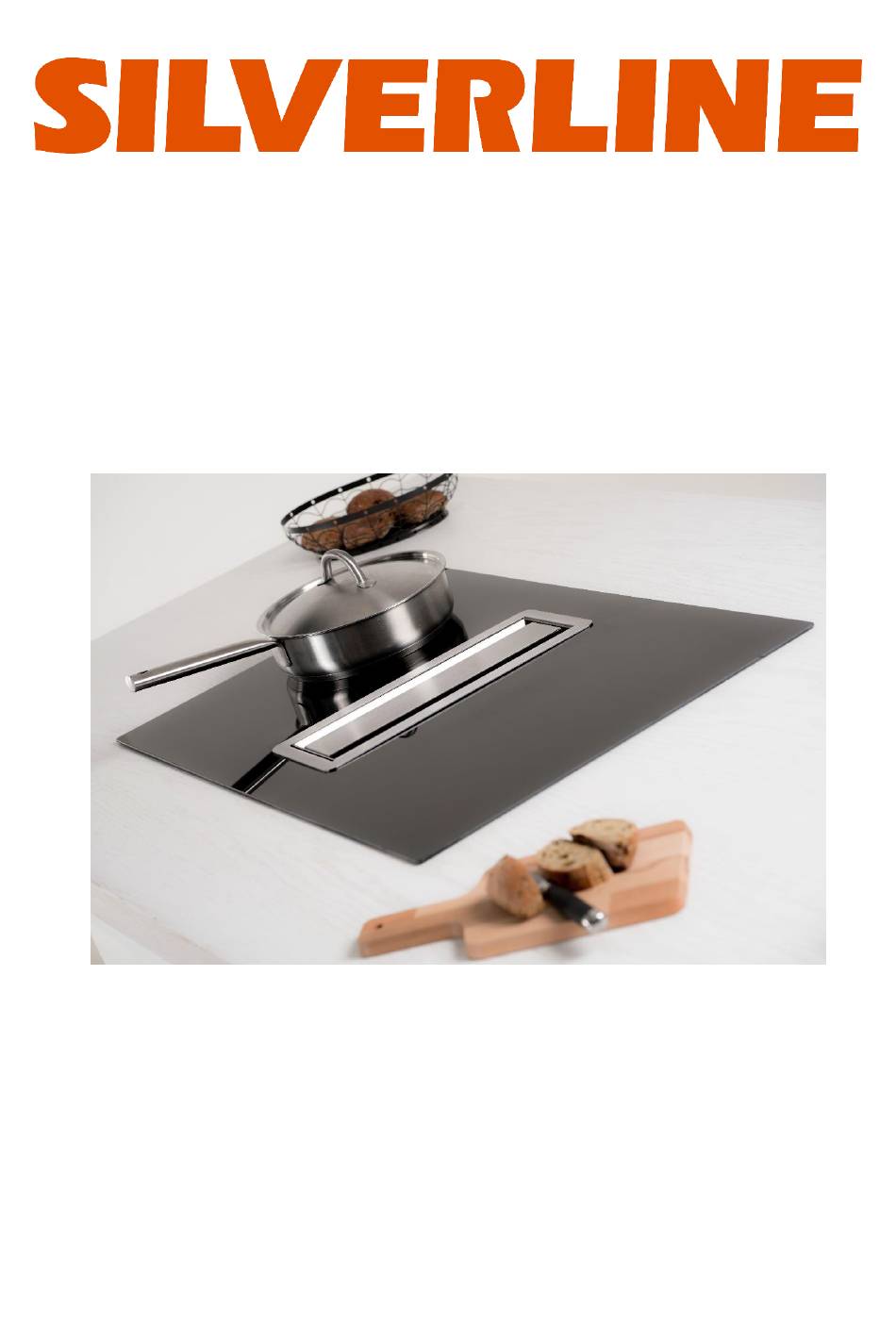

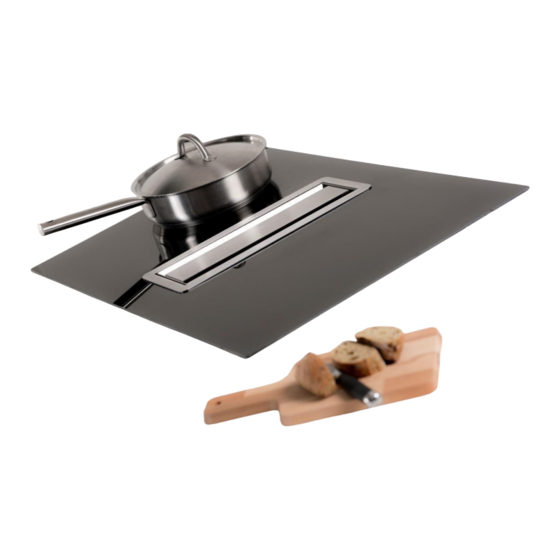

- Page 1 Luna Flow-in Hood & Hob INSTRUCTIONS FOR USE...
-
Page 2: Table Of Contents
Dear customer, Thank you for having chosen our induction ceramic hob. In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting. SUMMARY SAFETY ............................ -
Page 3: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance have to be done approved specialists. manufacturer cannot responsible for damage caused by connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Using The Appliance
Using the appliance • Switch the heating zones off after using. • Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan. • Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance. •... -
Page 5: Precautions Not To Damage The Appliance
Precautions not to damage the appliance • Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. • Do not hit the edges of the glass with saucepans. •... -
Page 6: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure • If a defect is noticed, switch off the appliance and turn off the electrical supplying. • If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service. •... -
Page 7: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics PHT874S- IH5413B01 Type Total power 7100 W Energy consumption for the hob EC 177.2 Wh/kg Front left heating zone 210x177 mm Minimum detection Ø 90 mm Nominal power* 1400 W Booster power* 2000 W Standardised cookware category** Energy consumption EC 181 Wh/kg... -
Page 8: Control Panel
Control panel Timer and Power display Selection key [ - ] key [ + ] key Power display Control light timer On/off key Timer keys USE OF THE APPLIANCE Display Display Designation Function Zero The heating zone is activated. 1…9 Power level Selection of the cooking level. -
Page 9: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface. Induction principle An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. -
Page 10: Pan Detection
Pan detection The pan detection ensures perfect safety. The induction doesn’t work: • If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ U ]. This symbol disappears when a pan is put on the heating zone. -
Page 11: Timer
Timer The timer can be used simultaneous with all 4 heating zones and with different time settings (from 0 to 99 minutes) for each heating zone. • Setting and modification of the cooking time : Action Control panel Display Zone selection Press key [ ] from the zone [ 0 ]... -
Page 12: Bridge Function
Bridge Function This function allows to use the 2 cooking zones at the left at same time with the same features as a single cooking zone. Power function isn’t allowed. Action Control panel Display Activate the hob Press display [ [ 0 ] or [ H ] on the 4 displays Activate the bridge... -
Page 13: Cooking Advices
COOKING ADVICES Pan quality Induction materials : steel, enamelled steel, cast iron, ferromagnetic stainless- steel, aluminium with ferromagnetic bottom. No induction materials : aluminium and stainless-steel without ferromagnetic bottom, c0pper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible for induction. -
Page 14: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) Melting Sauces, butter, chocolate, gelatine 1 to 2 Reheating Dishes prepared beforehand Simmering Rice, pudding, sugar syrup 2 to 3 Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat Water Steamed potatoes, soups, pasta,... -
Page 15: What To Do In Case Of A Problem
IN CASE OF A PROBLEM When the symbol [ E 4 ] appears : • The table must be reconfigured. Please implement the following steps: I) Make sure there is no pot on the hob. II) disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off. -
Page 16: Environment Preservation
One or all cooking zone cut-off : • The safety system functioned. • You forgot to cut-off the cooking zone for a long time. • One or more sensitive keys are covered. • The pan is empty and its bottom overheated. •... -
Page 17: Installation Instructions
INSTALLATION INSTRUCTIONS We strongly recommend this is installed by a qualified electrician. How to stick the gasket: The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation must be done carefully, to conform to the following drawing. Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3). - Page 18 • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side.
-
Page 19: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should be carried out by a qualified electrician. • Protection against the parts under tension must be ensured after the building-in. • The data of connection necessary are on the stickers place on the hob casing near the connection box. - Page 20 Caution! This appliance has must be connected to a network 230 V~ 50/60 Hz. Always connect the earth wire. Respect the connection diagram. The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver.
-
Page 21: Hearing Noise While Operating
Hearing Noise while Operating Related to the combination of the cookware base, some noise can be heard when the cooker is operating. These sounds are normal, all part of the induction technology, and do not indicate any kind of malfunction. •... - Page 22 20543-1...
