3

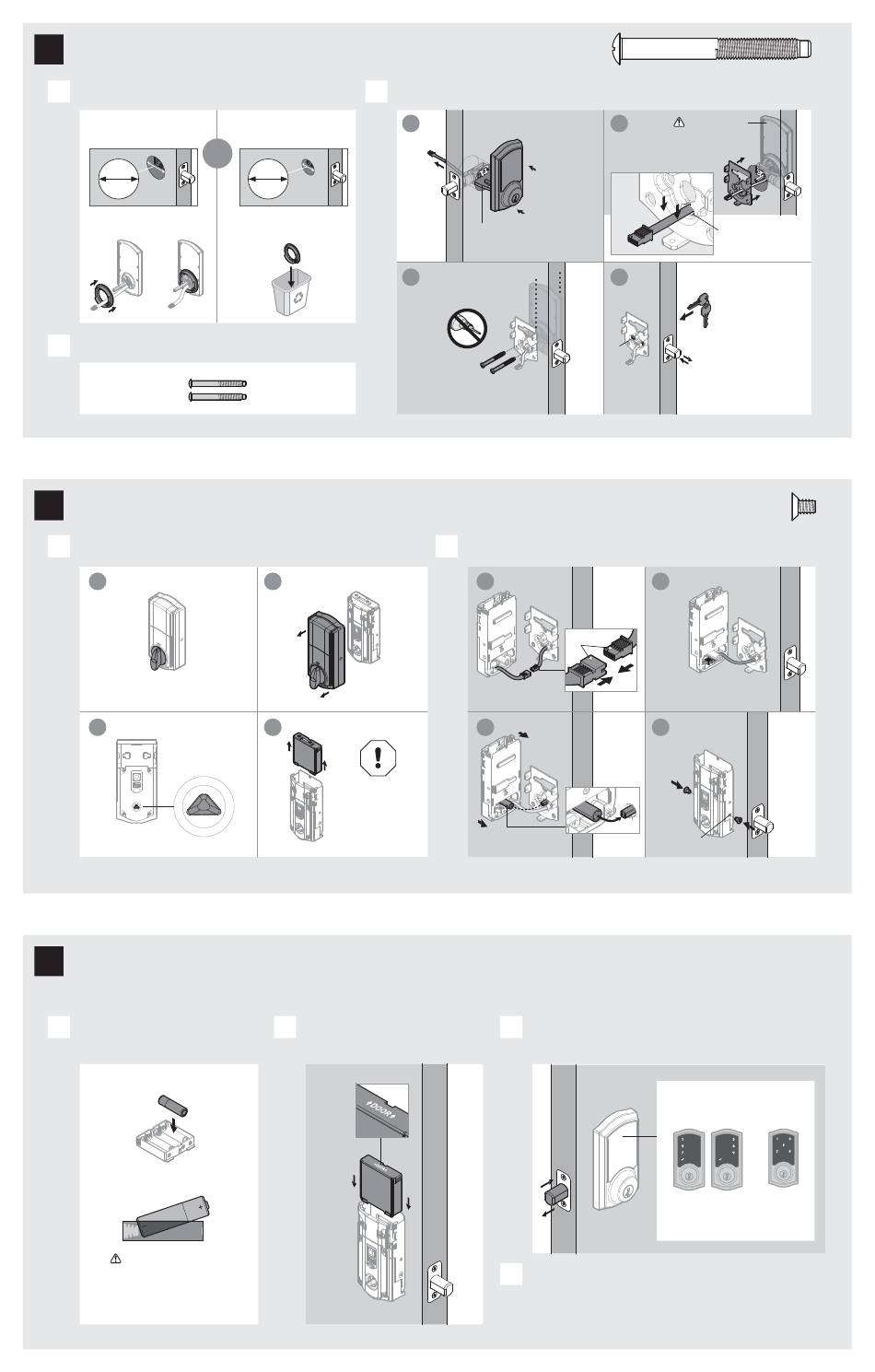

Install the exterior touchscreen
A
What is the diameter of the hole in the door?
Diameter is 2-1/8"
(54 mm)
2-1/8"
54 mm
"D" is required for installation.
Install "D" on "F".
F
D
B
Locate screws for step 3C and keep them within reach.
T
4
Install the interior assembly
A
Remove battery cover and battery pack from interior assembly.
a
Make sure turnpiece is in
the vertical position.
c
Make sure
turnpiece shaft is
rotated as shown.
L
5
Install the batteries and perform the door handing process
This step will teach your lock the orientation of your door and is crucial to lock operation.
A
Install 4 AA batteries in battery pack.
K
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
C
Diameter is 1-1/2"
(38 mm)
or
1-1/2"
38 mm
"D" is not needed for
installation. Discard "D".
D
b
M
d
K
Do not install
batteries until step 5.
Alarm will sound if
battery is installed
before cable is
L
connected.
B
Make sure the door is open, and
insert the battery pack.
Install exterior touchscreen and mounting plate.
a
F
Cable goes
underneath latch.
c
Keep parallel to
edge of door.
T (2x)
Tighten
screws evenly.
B
Install interior assembly onto mounting plate.
a
L
L
Ensure tight cable
connection.
c
C
After a few seconds, the latch bolt will retract and extend on
its own to learn the orientation of the door. This is called the
door handing process, and it is crucial to lock operation.
K
D
If the touchscreen indicates a failure, attempt this procedure again.
If the door handing process is still unsuccessful after a second
attempt, perform the "Manual Door Handing" procedure on page 4.
2 / 4
actual
size
T
Support exterior
b
assembly during
mounting plate
installation.
G
Route cable through
center hole, then push
cable into bottom hole.
d
E
Insert key and
test latch. If latch
does not extend or
retract smoothly,
T
adjust screws (T).
Remove key when
finished and make
sure the latch bolt
is fully extended.
b
align
Lay excess cable flat inside the
bottom of the interior housing.
d
U
(2x)
bottom
hole
Once the door handing process
is complete, the touchscreen
will indicate success or failure:
Success:
flashing checkmark
symbol and single
column of digits
actual
size
U
Failure:
flashing
"X" pattern
