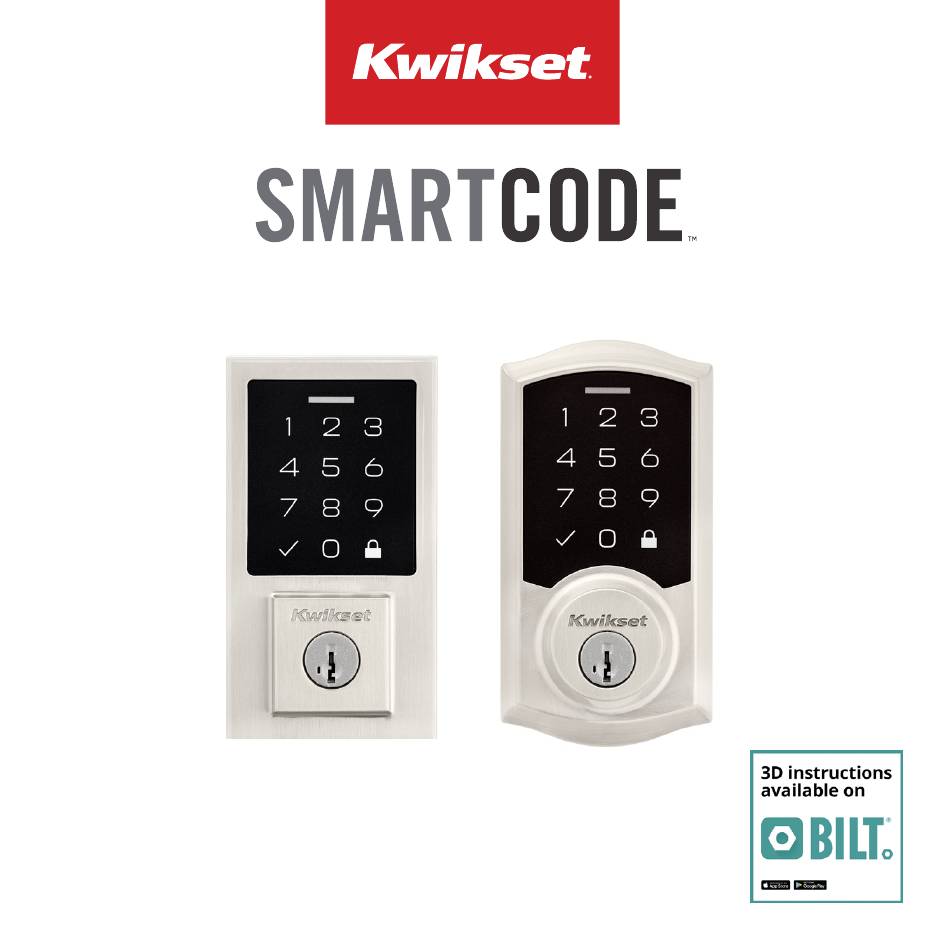

- Page 1 English/Spanish 52438-001 Rev 03 TOUCHPAD ELECTRONIC LOCKS Quick Start Guide...
- Page 2 Welcome to the Kwikset family! This guide will get you up and running with your new SmartCode™ Lock. If you have any issues, please visit our support center: kwikset.com or call us at 1-800-327-5625.
- Page 3 Table of contents Parts in the box ..........4 Required tools ..........5 Installation ............7 Programming guide ........19...
- Page 4 Parts in the box Contemporary Traditional Exterior assembly Interior assembly Interior cover Step actual 03809 size Latch Collar Step actual 52531 size Strike...
- Page 5 Required Step tools Mounting Keys plate actual 52367 size actual 52502 size Philips Step screwdriver SmartKey™ tool with instructions No electric drills...
- Page 6 Installation...
- Page 7 Remove your existing deadbolt and strike 1-3/8” to 1-3/4” (35mm - 44mm) 1-1/2” or 2-1/8” (38 or 54mm) If drilling a new door, use the supplied template and instructions available at: kwikset.com/doorprep...
- Page 8 Install the latch [OUTSIDE] UP is on top. *Use the longer screws if the holes are worn out. You will have two extra screws. 03809* If the rectangle shaped (2X) hole is not centered in the door hole, rotate the latch face to extend the latch.
- Page 9 Install the strike *Install the longer screws closest to the door jamb. 52531* (4X) Use the longer screws if the holes are worn out. Please note there will be two extra screws. DOOR JAMB 1" (25 mm) hole depth...
- Page 10 Install the exterior assembly Make sure bolt is RETRACTED [OUTSIDE] Route cable under the latch. 2 1/8 54 mm 38 mm...
- Page 11 Tighten the screws evenly. DO NOT over-tighten. Keep parallel to the door edge TOP on the mounting plate should be visible 52367 (2X) Make sure the flat blade is centered in the [INSIDE] mounting plate hole. Route the cable Push the cable into Insert the key and test through the the bottom hole of...

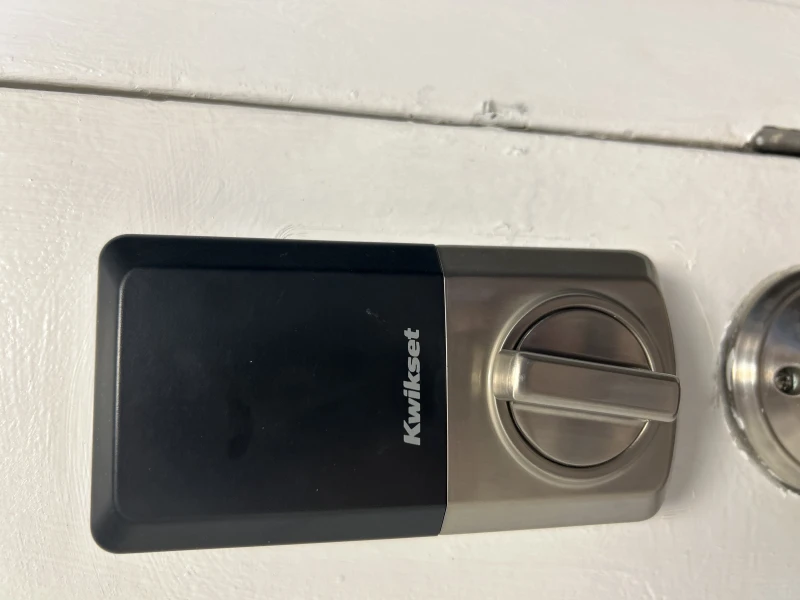

- Page 12 Install the interior assembly Check to make sure the latch bolt is in the extended/locked position to install the interior assembly. Remove the interior cover from the interior assembly. If the turnpiece is not pointing up, rotate the turnpiece until you hear a click.
- Page 13 Connect the cable. Ensure a tight cable connection. Secure the interior assembly onto the mounting plate. Route cable around the side notch and bottom of the interior assembly. Insert the flat blade into the turnpiece shaft. 52502 (2X) [INSIDE]...
- Page 14 Install the AA batteries Ensure the door is open while installing batteries. Note: Batteries are not included Ensure correct polarity. For best results, use new, non-rechargeable Alkaline batteries only. [INSIDE]...
- Page 15 Add a User Code and install cover Secure the interior cover onto the interior assembly. Add a User Code per instructions on page 19. After the first User Code is created, the latch bolt will automatically retract and extend to learn the locking and unlocking direction of the door.
- Page 16 Before you can lock or unlock the door a User Code must be created. Refer to page 19 for instructions on how to create a User Code. Locking Unlocking To lock your door, press the Lock To unlock your door, enter the User button.
- Page 17 SmartCode™ at a Glance Exterior Interior 1. Number Buttons 5. Battery Holder Used to enter User Codes. Each code must Uses 4 AA Alkaline batteries, 1.5V be 4 to 8 digits in length. 6. Programming Button Used for programming functions.
- Page 18 SmartKey Re-Keying Re-key the lock to work with your existing key. See the supplied SmartKey Re-key instructions for more information. Note: If Auto-Lock is enabled, remove the batteries before re-keying your lock. System Alerts Operation Lights Sounds Explanation Troubleshoot Flashes GREEN x2 2 beeps Successful unlock Flashes RED x10...
- Page 19 Programming Ensure the door is open before performing any programming. The programming button is located on the interior chassis below the battery holder (refer to page 17). During programming, if no button is pressed within 5 seconds, the system will time out and you will need to restart the procedure. Add User Code Programming enter UC...
- Page 20 Programming Notes Add User Code: Up to 50 User Codes can be saved. User Codes should be 4 to 8 digits in length. For security reasons, the first 4 digits of each User Code must be unique. For example, you are unable to program a User Code 1-2-3-4-5 as well as a User Code 1-2-3-4-6.
- Page 21 Programming Notes Enable/Disable User Codes: When all User Codes are disabled, all electronic functions will be disabled as well. The door must be locked or unlocked manually with the key. Repeat the programming steps to enable the User Codes. Add One-Time Use Code: Up to 10 One-time User Codes can be saved.
- Page 22 Important Safeguards 1. Read all instructions in their entirety. 5. If using the Auto-Lock features, make sure you have your smartphone or standard key with you 2. Familiarize yourself with all warning and caution to prevent locking yourself out. statements. 6.
