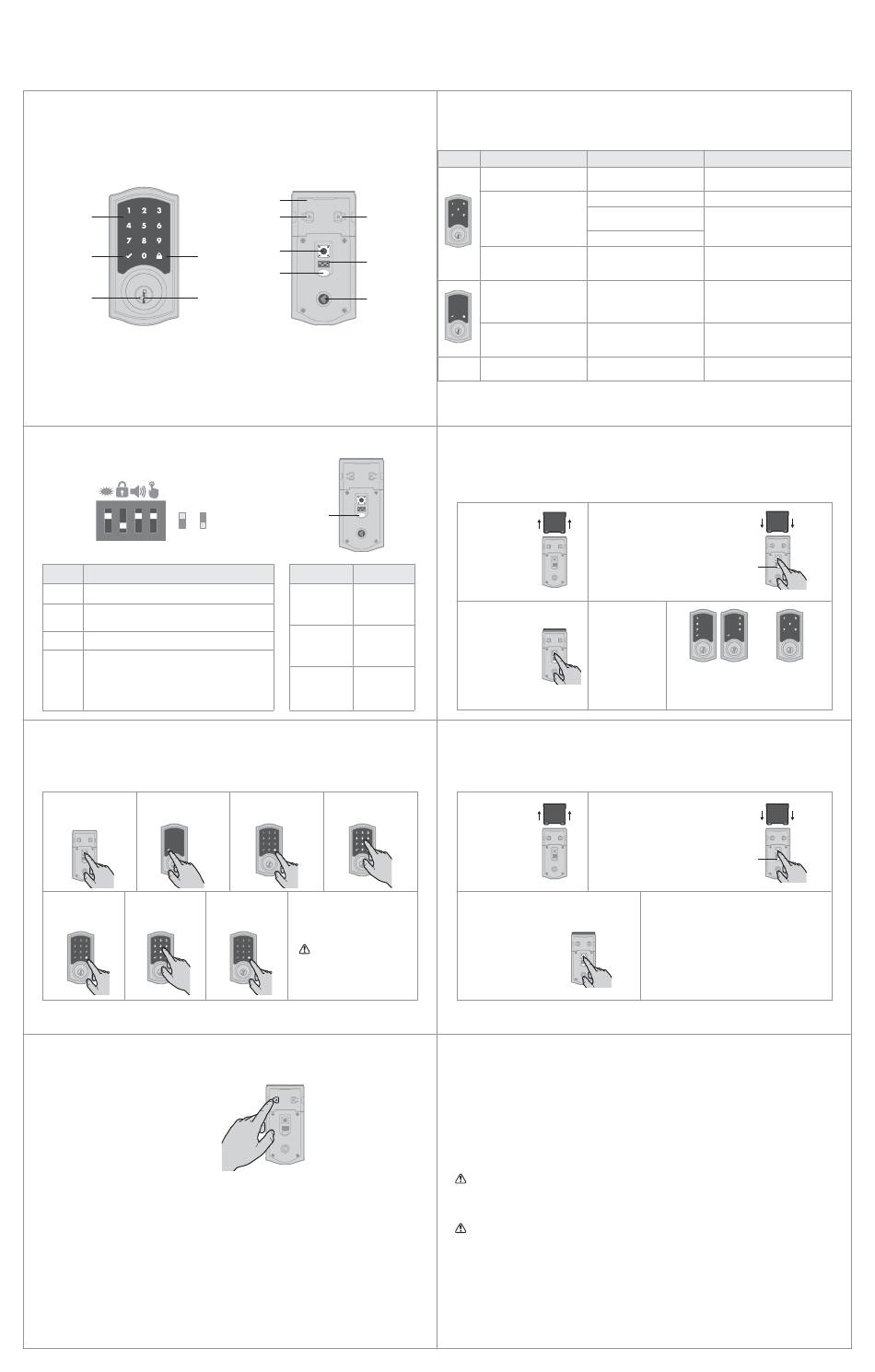

SmartCode at a Glance
Exterior
Touchscreen
Checkmark Lock
symbol symbol
Keyway
SmartKey
tool hole
Switches and Status LED Colors
Switches
On Off
1 2 3 4
Switch Function
1 Door lock status LED blinks every 6 seconds
Lock automatically re-locks door 30 seconds after
2
unlocking. Disabled if no codes are programmed.
3 Audio
SecureScreen feature displays random digits to be
pressed before entering user code. This added-
4 security feature ensures that there are fingerprints
on all digits so that codes cannot be identified by
examining the touchscreen for fingerprints.
Deleting a single user code
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the online Programming and Troubleshooting Guide.
1 Keep door open. 2 Press Checkmark
Press Program symbol once.
button once.
5 Press Lock 6 Re-enter user
symbol once. code.
If the screen is not pressed for 20 seconds, the system will time out,
and you will need to restart the procedure.
Network Information
Removing the lock from the network
Follow your smart home system's instructions
to remove the lock from the network. When
prompted by the system, press button A" on the
lock interior once.
Z-Wave System Notes
This product is a security enabled Z-wave Plus product and must be used with a Security
Enabled Z-Wave controller to be fully utilized. Z-Wave is a "Wireless mesh network," and
results may vary based on building construction and communication path.
To assure interoperability, each Z-Wave product must pass a stringent conformance test to
assure that it meets the Z-Wave standard for complete compliance with all other devices and
controls. The Z-Wave identity mark assures consumers, integrators, dealers and manufacturers
that their products will reliably perform with any other Z-Wave device. And, regardless of the
vendor, always powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products.
Z-Wave Configuration and Association Parameters are available
on the SmartCode 916 page at www.kwikset.com.
Interior (cover removed)
Back
panel
Button "A" Button "B"
Program
button
Switches
Status
LED
Turnpiece
shaft
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
Status
LED
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
3 Press Lock 4 Enter user code
symbol once. to be deleted.
7 Press Lock
If unsuccessful
symbol once.
Make sure to enter the same
valid code in steps 4 and 6.
Test code
While the door is open, test the
user code to make sure it no
longer unlocks the door.
Reference Guide
System Alerts
Display Alert
"X" pattern flashes one time
with one beep*.
"X" pattern flashes three
times with three beeps*.
"X" pattern flashes 15 times
with 15 beeps*
Checkmark and lock symbols
flash simultaneously five
times with long continuous
beep*.
Checkmark and lock symbols
alternate flashing five times
with long continuous beep*.
N/A Lock beeps continuously.
*Beeping sound will only be heard if switch #3 is on.
Manual Door Handing
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a diff erent door.
1 Remove
battery pack.
3 Press the Program
button once more.
Factory Reset
A factory reset will delete all codes associated with the lock, and it will
remove it from your smart home system.
1 Remove
battery pack.
3 Press the Program button
once more. The status
LED will flash green and
red several times.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualified locksmith or other security professional.
4 / 4
Reason Solution
One incorrect code entered. Re-enter code.
No user code programmed. Program at least one user code.
Programming timeout after 20
seconds.
Attempt programming procedure again.
Unsuccessful programming.
Three incorrect codes entered Re-enter code after 60 second
within one minute. touchscreen lockout.
Low battery. Replace batteries.
Door jammed while attempting Manually re-lock door. If needed,
to lock. reposition strike.
Interior assembly is Remove battery pack, reconnect the interior
disconnected from exterior. to the exterior, then replace battery pack.
2 Press and HOLD the Program
button while reinserting the
battery pack.
Release button once battery
pack is installed. The status LED
will flash red and green.
Status
LED
4 The latch bolt
will extend and
retract to learn
the orientation
of the door.
Success
If the touchscreen indicates a failure, see the
online Programming and Troubleshooting Guide
or call Technical Support.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED flashes red.
Status
LED
4 After a few seconds, the lock will
initiate the door handing process, and
the latch bolt will extend and retract
to learn the orientation of the door.
© 2016 Spectrum Brands, Inc.
Failure
