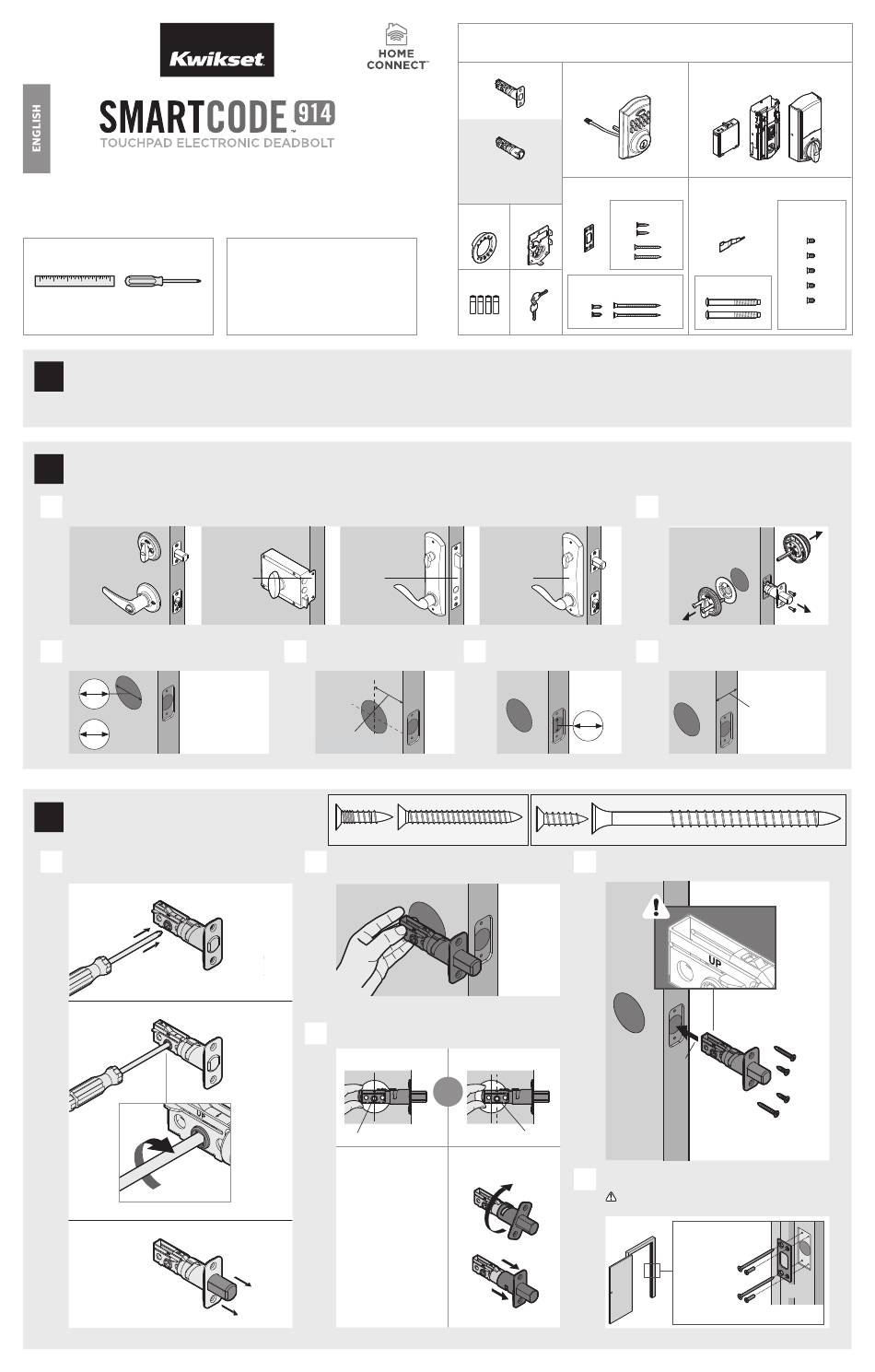

Kwikset SMARTCODE 914 Installation And User Manual

61037-005
Rev 05
ZigBee
Installation and User Guide
Required tools
Ruler Phillips head
screwdriver
1
Begin with your smart home app
If you will be using a smart home app with your lock, download the app and set up
your controller or hub before proceeding further with lock installation.
2 Prepare the door and check dimensions
A Make sure your door is compatible. If you have a standard deadbolt mounted
separately from the handle below it, your door is compatible.
Compatible
C Measure to confirm that the hole in the door is either
2-1/8" (54 mm) or 1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
3
Install the latch and strike
A
Extend the latch bolt.
Kwikset
1-866-863-6584
www.kwikset.com
Not Compatible Not Compatible
Rim Mortise
Lock Lock
D Measure to confirm that the backset is
either 2-3/8" or 2-3/4" (60 or 70 mm).
Note: Additional door
preparation may be
required for doors with
1-1/2" (38 mm) holes.
Consult the deadbolt
drilling instructions at
kwikset.com/doorprep
2-3/8" or 2-3/4"
60 or 70 mm
(2x)
For Latch /
Strike Bag
03809
B
Hold the latch in front of the door hole, with the latch
face flush against the door edge.
C
Is the D-shaped hole centered in the door hole?
D-shaped hole
No adjustment is required.
Proceed to next step.
Parts List
Latch A
Latch B
"B" is not included.
If needed, please contact
Kwikset to order a drive-in
latch for your lock.
Adapter Mounting
Ring Plate
Batteries Keys
Not Compatible
Integrated
Interior
E Measure to confirm that the hole
in the door edge is 1" (25 mm).
b a
c k
s e
t
(2x)
46780
actual size
YES NO
or
D-shaped hole
Rotate latch face as
shown to extend latch.
1 / 4
Exterior Assembly Interior Assembly
For Latch / Strike For Lock
03809
Strike SmartKey
Tool
46780 48654
If drilling a new door, use the supplied template and the complete
door drilling instructions available at kwikset.com/doorprep
B
Remove your existing deadbolt
from your door.
F Measure to confirm that the door is between
1-3/8" and 2" (35 mm and 51 mm) thick.
1"
25 mm
(2x) (2x)
D
Install the latch.
*Use longer screws if
holes are worn out.
You will have two extra screws.
E
Install the strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
Longer screws
install closest to
the door jamb.
46780
(4x)
For Latch/
Strike Bag
69316
1-3/8" –2"
35 – 51 mm
actual size
UP is on top.
03809*
(2x)
For Latch/
Strike Bag
or
or
C
door frame
