U C I R R E M O T E C O N T R O L

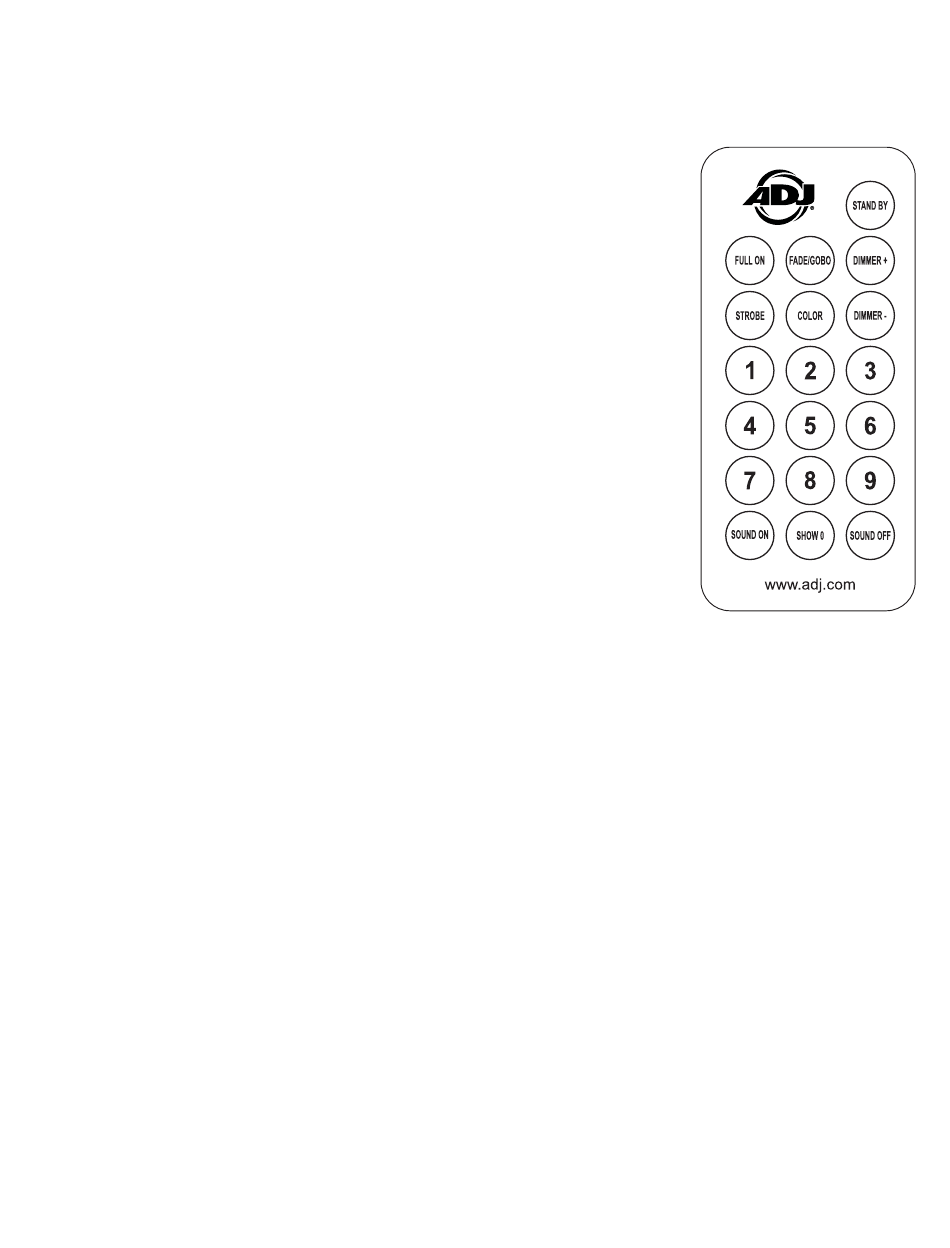

The UC IR infrared remote gives you control of various functions (See below). To control the fixture you
must aim the remote at the front of the fixture and be no more than 30 feet away.
CONTROLS
STAND BY - Pressing this button will blackout the fixture. Press the button
again to return to the initial state.
FULL ON - Press this button down to fully light up the unit. Press any
button to exit this mode.
FADE/GOBO - This button activate's the internal program mode. Use the
numeral buttons 0-9 to select the program number (0-16). Use the dimmer
buttons to adjust the output intensity.
NOTE: Running speed and fade speed is not adjustable using the IR
control functions.
"DIMMER +" and "DIMMER -" - Use these buttons to adjust the output
intensity.
STROBE - Press this button to activate and deactivate strobing. Use
buttons 1-4 to adjust the strobe speed. "1" being the slowest, "4" being the
fastest. Press this button again to stop strobing.
COLOR - Press this button to activate color macro mode. Use the numeral
buttons 1-9 to select your desired color (0-64). Use the dimmer buttons to
adjust the output intensity.
Example: Press the numeral buttons "1+3" to activate color"13".
SOUND ON & OFF - Use these buttons to activate and deactivate sound
active mode. Use the dimmer buttons to adjust the output intensity.
NOTE: Sound sensitivity is not adjustable using the IR control functions.
SHOW 0 - Press this button to select show "0" or color "0" when either internal program mode or color
macro mode is active.
