  • Page 1: Industrial Embedded System

    QBiX-KBLA7100H-A1 Industrial Embedded System Quick Start Guide We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    Copyright Notice This document is copyrighted, 2019. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Acknowledgement

    Acknowledgement All other products’ name or trademarks are properties of their respective owners. • AMD is trademark of Advanced Micro Devices. Microsoft Windows is a registered trademark of Microsoft Corp. • • Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel Corporation Core, Atom are trademarks of Intel Corporation •...

  • Page 4: Packing List

    Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity System kit PSU ADP 19V 65W 100-240VAC (25EP2-10065L-F3S) Power cord (3C x 18AWG SVT US) (25CP0-007001-Q0R) CABLE SATA+Power (25CRA-010000-S9R) SCREW I HEAD FOR 25HDD M3x8L (25KSG-130081-K1R) THERMAL PAD HDD (25ST3-200052-T5R) THERMAL PAD DRAM (25ST3-200051-T5R) VESA_RS_BKT_KP (25HB1-TPL021-S8R)

  • Page 5: About This Document

    About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the website for the latest version of this document.

  • Page 6: Safety Precautions

    Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device.
  • Page 7 13. Watch out for high temperatures when the system is running. 14. Do not touch the heat sink or heat spreader when the system is running 15. Never pour any liquid into the openings. This could cause fire or electric shock. 16.

  • Page 8: Fcc Statement

    FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inter ference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.

  • Page 9: Table Of Contents

    Table Contents Industrial Embedded System Quick Start Guide Copyright Notice ................2 Acknowledgement ............... 3 Packing List ................... 4 About this Document ..............5 Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 –...
  • Page 10 Chapter 3 – 10” x 10” Motherboard Hardware Information Jumpers and Connectors ..........24 3.2.1 BATTERY (Battery cable connector) ......27 3.2.2 CPU FAN (CPU FAN connector) ........28 3.2.3 EDP (Embedded Display Port Connector) ..... 29 3.2.4 ATX IN ................30 3.2.5 BKL_SEL (Back light brightness control connector) ..

  • Page 11: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications We reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 13: Specifications

    Specifications System QBiX-KBLA7100H-A1 (GB-CKAA-SI) Dimension System Size : 138W x 118D x 74.2H (mm) Intel® Core™ i3-7100U Processor 14nm, 2 cores, 4 threads, up to 2.40 GHz TDP 15W 3 MB SmartCache Chipset 2 x DDR4 SO-DIMM socket, Max. Capacity 32 GB...
  • Page 14 System QBiX-KBLA7100H-A1 (GB-CKAA-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -40°C to 85°C temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr...

  • Page 15: Chapter 2 - Industrial Embedded System Kit

    Chapter 2 Chapter 2 – Industrial Embedded System Kit We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 16: Dimension

    Dimension We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 17: Getting Familiar With Your Unit

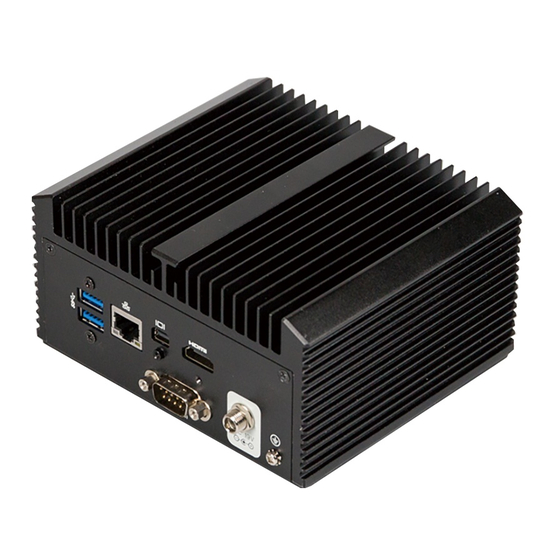

    Getting Familiar with Your Unit [Front Side] 1 x RJ45 LAN Port 1 x Mini Display Port 1 x HDMI 2 x USB 3.2 Gen 1 1 x Screw Type DC Jack 1 x COM Port (RS-232) [Rear Side] 2 x WiFi Antenna Connector (optional) 1 x Power Switch 1 x Power LED 2 x USB 3.2 Gen 1...
  • Page 18 [Install] * Before opening the case, make sure to unplug the power cord. * 打開機殼前 ，請確實移除電源。 * Before Connecting the power, make sure to fasten the case securely. * 接上電源前 ，請確實將機殼完整鎖附 。 [Bottom PCB Side] Information M.2 M-Key slot (Supports NGFF-2280 SATA 6 Gb/s, PCIeX4) DDR4 2400 MHz SO-DIMM Slot x 2 M.2 E-Key slot (Support NGFF-2230 WiFi/...

  • Page 19: C) Wireless Module : How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)

    C) Wireless Module : How to safely install the Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down.

  • Page 20: B) Memory Installation: Ddr4 So-Dimm

    B) Memory Installation: DDR4 SO-DIMM SO-DIMM We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)

    Antenna Installation (Antenna inclusion may vary based on local distribution) We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Db9 Com Pin Define

    DB9 COM Pin Define DB9 COM 25CF8-120620-S9R Pin No. Pin Define Safety and Regulatory Information Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used Batteries must be in accordance with local environmental regulations.

  • Page 23: Chapter 3 - 10" X 10" Motherboard Hardware Information

    Chapter 3 Chapter 3 – 10” x 10” Motherboard Hardware Information We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: Jumpers And Connectors

    Jumpers and Connectors We reserves the right to modify or revise the content at anytime without prior notice.
  • Page 25 Code Description BATTERY Battery cable connector CPU_FAN CPU FAN connector Embedded Display Port Connector ATX_IN 1 x 2 pin DC-IN Connector BKL_SEL Back light brightness control connector F_PANEL Front panel connector F_USB3_1 Front USB 3.2 Gen 1 Serial port connector F_USB2_1 USB 2.0 header F_USB2_2...
  • Page 26 Code Description 14 MDP Mini Display connector 15 LAN RJ45 connector 16 USB3_1 USB 3.2 Gen 1 SODIMM1 DDR4 SO-DIMM Slot SODIMM2 18 M2M M.2 slot (Support NGFF-2280 SATA/PCIeX4) 19 M2E M.2 slot (Support NGFF-2230 WiFi/BT) We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Battery (Battery Cable Connector)

    3.2.1 BATTERY (Battery cable connector) Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Cpu Fan (Cpu Fan Connector)

    3.2.2 CPU FAN (CPU FAN connector) CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition +V5S TACH_PWRFAN1 PWM_PWMFAN1 We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Edp (Embedded Display Port Connector)

    3.2.3 EDP (Embedded Display Port Connector) Embedded Display Port connector Definition Definition EDP_LANP0 EDP_BKLCTL_3V3 EDP_AUX_C_DP EDP_AUX_C_DN +BL_PWR (10V or DCIN) +BL_PWR (10V or DCIN) +LCD_VCC (5V) +BL_PWR (10V or DCIN) +LCD_VCC (5V) +BL_PWR (10V or DCIN) +LCD_VCC (5V) Note: Please ensure pin 8 is connected Definition Definition to Ground.

  • Page 30: Atx In

    3.2.4 ATX IN ATX IN Connector PN Vendor 99-01740-B004-A TCONN GND (Pin1) DCVIN Pin No. Definition DCVIN We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Bkl_Sel (Back Light Brightness Control Connector)

    3.2.5 BKL_SEL (Back light brightness control connector) Back light brightness control Connector PN Vendor connector 222-96-03GBE1 PINREX PH03N33BAAA00 HORNGTONG Jumper DCIN(12V-24V) 10V Fix 2-3 (Default) Pin No. Definition +BL_PWR_Q VIN_10V We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: F_Panel (Front Panel Header)

    3.2.6 F_PANEL (Front panel header) Front Panel Connector Connector PN Vendor 87216-1206-06 ACES F_PANEL Pin No. Definition SATA_LED_P MPD_+ GND (SATA_LEN_N) MPD- -PANSHW (Power BTN) PMU_RSTBTN_N (Reset BTN) +V5S +V3.3A +V5A We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: F_Usb3_1 (Front Usb 3.2 Gen 1)

    3.2.7 F_USB3_1 (Front USB 3.2 Gen 1) USB 3.2 Gen 1 Connector PN Vendor DF13C-10P-1.25V(51) 85205-10701 ACES F_USB3_1 Pin No. Definition We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Com (Serial Port Header)

    3.2.8 COM (Serial port header) Serial Port Cable Connector Connector PN Vendor DF13C-10P-1.25V(51) 85205-10701 ACES Pin No. Definition NDCDA- NRXDA- NTXDA- NDTRA- NDSRA- NRTSA- NCTSA- NRIA- We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: F_Usb2_1, F_Usb2_2 (Usb 2.0 Header)

    3.2.9 F_USB2_1, F_USB2_2 (USB 2.0 header) USB 2.0 Header Connector PN Vendor A1250WV-S- JOINT-TECH 04PNLBT1T00L 50273-0047N-001 ACES F_USB2.0 Pin No. Definition FUSEVCC3 USBN5_C USBP5_C We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Sata_Pwr_0 (Sata 6Gb/S Power Connector)

    3.2.10 SATA_PWR_0 (SATA 6Gb/s power connector) SATA 6Gb/s power connector Connector PN Vendor 85205-0570N ACES CI4405M1VRP-LF CVILUX SATA_PWR_0 Pin No. Definition +V5S +V5S +V3.3S We reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Sata0 (Sata 6Gb/S Connector)

    3.2.11 SATA0 (SATA 6Gb/s connector) SATA 6Gb/s power connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition We reserves the right to modify or revise the content at anytime without prior notice.
