The coach should be supported at both front and rear axles with jack stands before working underneath.
4.
If jacks are down for extended periods, it is recommended to spray exposed leveling jack rods with a
silicone lubricant every three months for protection. If the coach is located in a salty environment, it is
recommended to spray the rods every four to six weeks.
NOTE: OEM to install attachment brackets for leveling jacks.

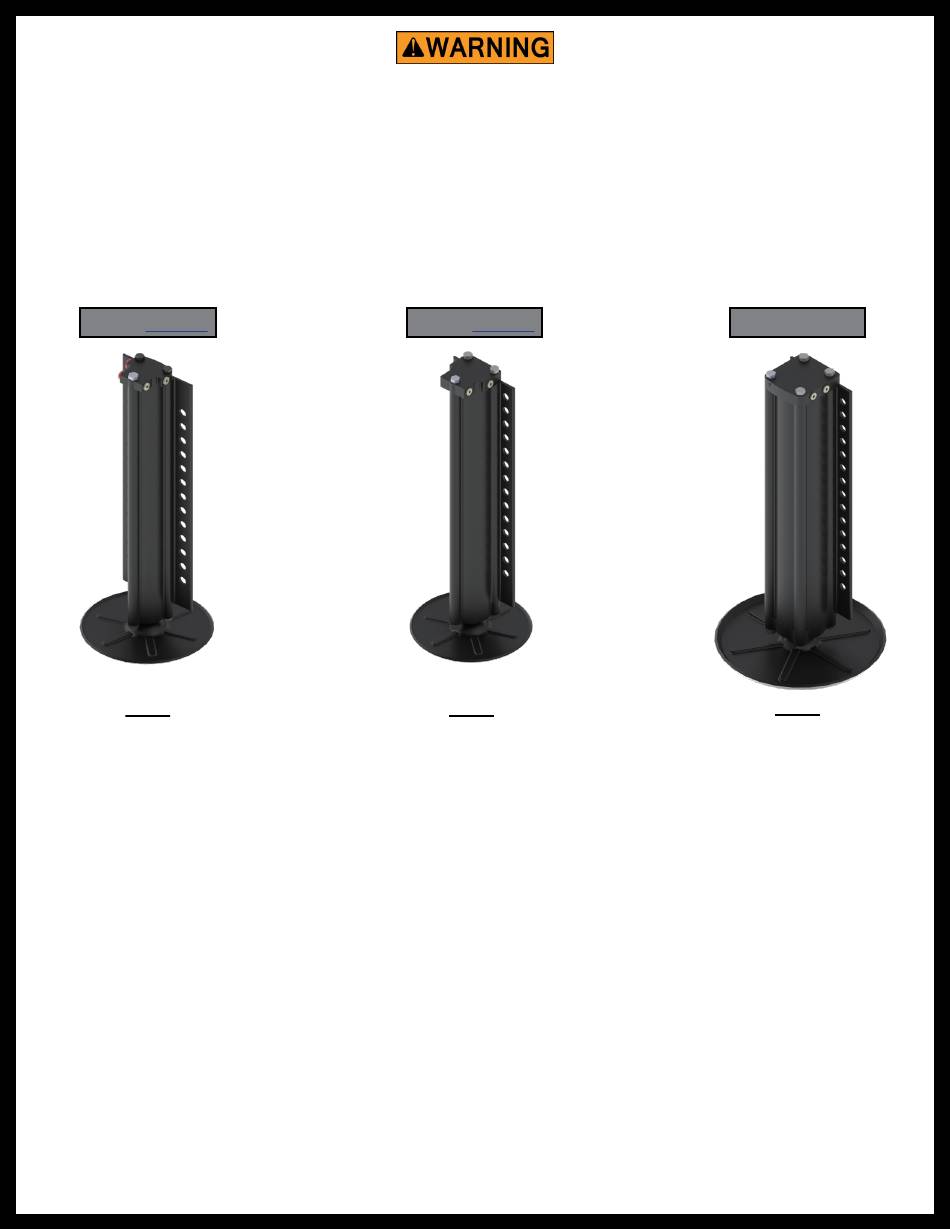

Fig. 1 -
195860
Fig. 1
CAPACITY - 8,000 lb.
STROKE - 15.00 in.
BORE - 2.00 in.
HEIGHT - 21.1875 in.
ROD DIA. - 1.50 in.
9" FOOTPAD-STANDARD
12" FOOTPAD-OPTION -
Part# - 117238
Rev: 06.29.2022
Failure to do so may result in death or personal injury.
Fig. 2 -
CAPACITY - 14,000 lb.
STROKE - 15.13 in.
BORE - 2.50 in.
HEIGHT - 21.625 in.
ROD DIA. - 1.875 in.
9" FOOTPAD-STANDARD
12" FOOTPAD-OPTION -
Part# - 117238
236560
Fig. 2
Page 5
Fig. 3 - 258550
Fig. 3
CAPACITY - 20,000 lb.
STROKE - 16.00 in.
BORE - 3.00 in.
HEIGHT - 23.125 in.
ROD DIA. - 2.25 in.
12" FOOTPAD-STANDARD
CCD-0001536
