Summary of Contents for Lippert Level-Up

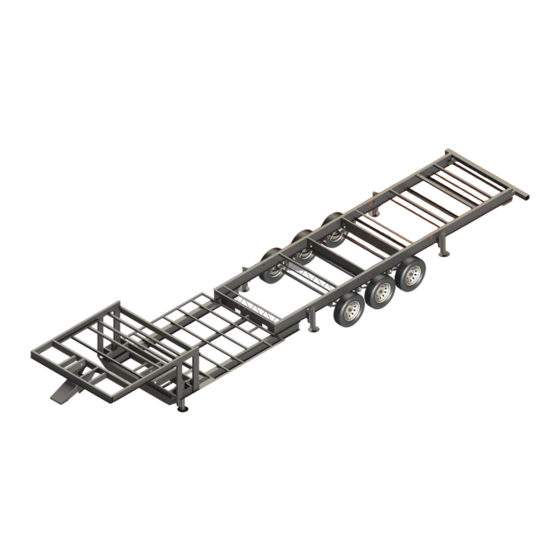

- Page 1 12/15/2022 LEVEL-UP TOWABLE HYDRAULIC LEVELING 14,000 LANDING GEAR JACKS Original Current Mounting Mounting Holes Holes Original Current Footpad Footpad...
- Page 2 12/15/2022 8,000 JACKS Original Current Mounting Mounting Holes Holes Current Original Footpad Footpad To measure departure and approach angles, run a string line from the meeting point of the tire and the ground up at an angle to the lowest point on the front and rear of the trailer. Departure Angle Approach Angle String Line...
- Page 3 12/15/2022 JACK CYLINDER CUTAWAY COMPONENTS Extend Hose Retract Hose (Orange) (Black) Tee Fitting Straight Fitting Quick Disconnect Hose End Fitting Hollow Plug Fitting Fitting 1 ¼”...
- Page 4 12/15/2022 Manifold Cartridge Valve Pressure Switch 12 Volt Coil Spark Proof Spade Motor Pump Up (Retract) Down (Extend) Fill Cap Dual Polarity Solenoid Reservoir Shuttle Valve BI-ROTATIONAL POWER UNIT...
-
Page 5: Power Unit Wiring
12/15/2022 9 Pin Controller to Power Unit Harness Power Retract (Yellow) Ground Extend (Green) POWER UNIT WIRING UNIDIRECTIONAL POWER UNIT... - Page 6 12/15/2022 Obsolete Advantage Controller (LCD Touch Pad) (ONEControl Touch Panel) Obsolete (ONEControl Touch Panel) Error Codes Excess Angle Excessive Angle Bad Calibration Internal Sensor Sensor Harness Rear Sensor Error Code External Sensor Excess Angle Excessive Angle Rear Sensor Mounting Location...
- Page 7 12/15/2022 LCD Touch Pad LCD Touch Pad Harness (Current) Error Code Comm Error Canbus Canbus Power 7” ONEControl Touch Panel Terminating Connector 5” ONEControl Touch Panel Resistor Harness Auto Leveling Control Auto Leveling Control Touch Pad Harness Canbus Data Harness Touch Pad...
-
Page 8: Operation
12/15/2022 OPERATION Error Codes Out of Stroke • Unhitching (Extend Landing Gear Jacks) Jack Time Out Auto Level • Feature Disabled Function Aborted • Reconnect (Left and Right/Auto Hitch/Hitch Height) Auto Level Fail • Auto Retract (Auto Retract/Retract All) Auto Leveling LCD Touch Pad OneControl Touch Panel Control Touch Pad... - Page 9 12/15/2022 SETTING THE ZERO POINT Press Options Press 6 Times ONECONTROL TOUCH PANEL Press 6 Times SETTING THE ZERO POINT ONECONTROL TOUCH PANEL...
-
Page 10: Error Codes
12/15/2022 TROUBLESHOOTING ELECTRICAL Testing for signal compromise through system to various components. • Wiring o Battery • Components o Circuit Breaker/Fuse o Controller o Solenoid (Ext/Ret) o Motor o Coils Error Code Low Voltage ERROR CODES Touch Panel What’s Happening? What Should Be Done? Message Unsecured controller. - Page 11 12/15/2022 PURGE PROCEDURE Reasons to purge: • To remove air from fluid • Jack replacement • Power unit replacement • Hose replacement • Valve replacement • Manifold replacement • Pressure switch replacement • After flush procedure Clockwise to OPEN Counterclockwise to CLOSE 5/64 Hex 5/32 Hex Wrench...
-
Page 12: Technical Support
• Dexron III or Mercon V Class “A” ATF Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
