TPI SP565 Manual

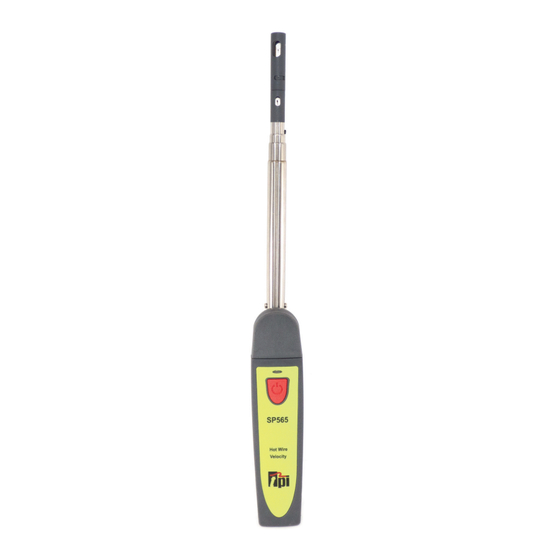

Hot wire air velocity smart probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

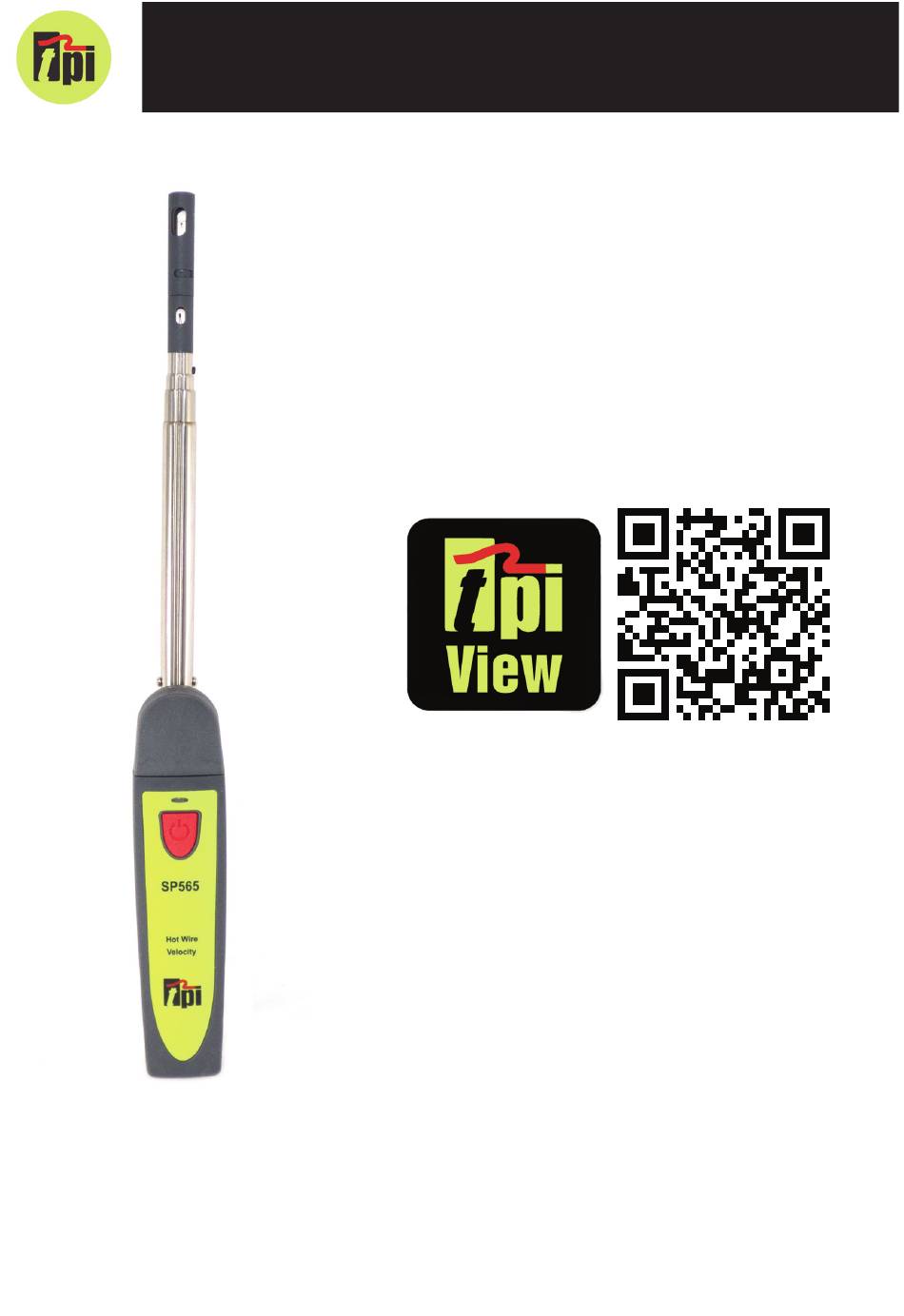

SP565 Hot Wire Air
Velocity Smart Probe
Test the TPI Advantage
Test Products International, Inc.
Measures Air Velocity and Temperature;
calculates Air Flow (Volume)
Connects to mobile device and uses the
FREE TPI View app or TPI Smart Probes
app
Perform average air velocity and air
volume tests
3 Year Limited Warranty
Uses hot wire sensor for
accurate air velocity
measurements.
View App
Visit www.tpieurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP565 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TPI SP565

Summary of Contents for TPI SP565

  • Page 1 Test Products International, Inc. Measures Air Velocity and Temperature; calculates Air Flow (Volume) Connects to mobile device and uses the FREE TPI View app or TPI Smart Probes View App Perform average air velocity and air volume tests 3 Year Limited Warranty...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS A. Introduction................ 1 B. Safety Considerations............1 C. Specifications..............1 D. Instrument Overview............2 E. Taking a Measurement............3 F. Performing Air Volume (Flow) Tests........4 G. Air Volume Measurement - Traversing Horizontal Ducts..5 H. Time Based Traverse - Rectangular Ducts........ 6 ~ 8 I.

  • Page 3: Introduction

    AAA x 3 Battery Life 14 hours typical CFM Calculation Performed via TPI Smart Probe App The SP565 has been tested with the following standards and is in compliance with the council RED directive 2014/53/EU: - EN 62479:2010 EN 61326-1:2013 EN 61010-1:2010 ETSI EN 301 489-17 V3.1.1(2017-02)

  • Page 4: Instrument Overview

    Using the Rotating Hotwire Probe 1. Take the hotwire probe and rotate it to the “UP” position (see A above). The back of the SP565 is marked to indicate the rotation direction for”UP” and “DOWN” (see B above). 2. The hotwire probe can then be extended like an antenna. Pull up on the sen- sor housing to extend the probe (see C above).

  • Page 5: Taking A Measurement

    The LED indicator will initially be orange and blink. Click to connect The SP565 will now be visible in the visible to connect to. Press on the SP565 on the View app list that you wish to connect to.

  • Page 6: Performing Air Volume (Flow) Tests

    F. PERFORMING AIR VOLUME (FLOW) TEST The View App allows you to perform air volume measurements by adjusting the Duct Details below. 1. Adjust duct details to calculate Volume Flow.

  • Page 7: Air Volume Measurement - Traversing Horizontal Ducts

    It is recommended to do at least 12 points of measurement. There are two ways to perform this test using the SP565, Time Based Traverse and Spot Based Traverse. Time based is typically easier but both are explained in the next sections.

  • Page 8: Time Based Traverse - Rectangular Ducts

    H. TIME BASED TRAVERSE - RECTANGULAR DUCT 1. Prepare the duct as outlined on page 5 and connect the SP565 to the App as outlined on page 3. 2. Set the App up to measure Air Flow and enter the duct type and size as outlined in section 4.
  • Page 9 H. TIME BASED TRAVERSE - RECTANGULAR DUCT (Continued) 6. Slowly pull the probe towards the entrance point of the duct. Start with the probe all the way into the duct. Press the key. Slowly pull the probe to the entrance hole. Before removing the probe see step 8.
  • Page 10 H. TIME BASED TRAVERSE - RECTANGULAR DUCT (Continued) 9. Pull the probe out and insert it into the next test hole all the way into the duct. 10. Press the “Continue” icon to begin recording. Repeat these steps for all test holes. 11.

  • Page 11: Point Based Traverse - Horizontal Ducts

    I. POINT BASED TRAVERSE - HORIZONTAL DUCT 1. Prepare the duct as outlined on page 5 and connect the SP565 to the App as outlined on page 3. 2. Set the App up to measure Air Flow and enter the duct type and size as outlined in section G.
  • Page 12 I. POINT BASED TRAVERSE - HORIZONTAL DUCT (continued) 3. Press the “Add To Average” icon to record the reading. The number of readings will increase by one (in brackets). 7. Slowly pull the probe towards the entrance point of the duct. Stop at each point and press the “Point”...
  • Page 13 I. POINT BASED TRAVERSE - HORIZONTAL DUCT (continued) 8. Pull the probe out and insert it into the next test hole all the way into the duct. Repeat this process until the duct is completely traversed. 8. When the duct has been completely traversed tap the “Stop”...

  • Page 14: Air Volume Measurement - Traversing Round Ducts

    J. AIR VOLUME MEASUREMENT - TRAVERSING ROUND DUCTS Traversing a round duct is very similar to traversing a horizontal duct. The preparation of the duct is slightly different. When traversing a round duct the traverse must be made vertically and horizontally. Preparing the Duct You will need to drill 2 holes at 90 degrees to each other, similar to the drawing below.
  • Page 15 J. TRAVERSING A ROUND DUCT (continued) Time Based Traverse 1. Prepare the duct as outlined on page 12. 2. Traverse the duct both horizontally and vertically (see below). Use the instructions on pages 8 through 10 substituting a round duct for the horizontal duct. Traverse vertically Traverse horizontally Point Based Traverse...

  • Page 16: Maintenance

    Temperature seems inaccurate. • Low battery. • Non K-Type probe being used. • Ensure connection with phone is working. SP565 does not turn on. • Dead or low batteries. • Not holding down power switch until unit turns on. • Defective POWER ON switch.

  • Page 17: Warranty

    To Obtain Warranty Performance: Include with the product: your name, address, phone number, written description of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Unit 6 Rutherford Way Ind. Est...
  • Page 18 NOTES...
  • Page 19 The SP565 has been tested with the following standards and is in compliance with the council RED directive 2014/53/EU: -...
  • Page 20 Thank You!!!!! & Welcome to the TPI Family We really appreciate you coming onboard, if you aren’t already, and look forward to serving you over the next few years, and beyond. For the best experience head over to www.tpieurope.com, create your account and register your product.
