Use standard K-type thermocouple probes with
sub mini input jack. GK41M included. Other probes
sold separately.
Test the TPI Advantage
1.800.561.8187

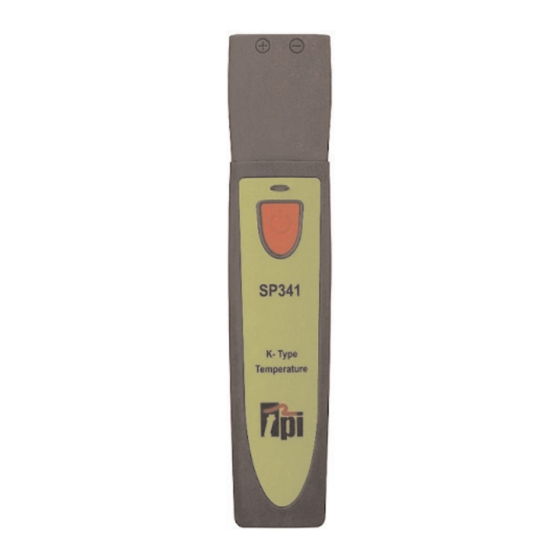

SP341 K-Type Temperature
Smart Probe
Test Products International, Inc.
Uses any K-Type probe with sub-mini
connector
Connects to smart phone and uses the
TPI Smart Probe App
Perform differential temperature meas-
urements with one instrument
Up to 6 SP341 smart probes can connect
to a single mobile device (most devices)
Auto field calibrate to +/-1°F system
accuracy in the range of 30°F to 120°F
using field calibrate mode
3 Year Limited Warranty
www.
Visit www.testproductsintl.com
information@itm.com
.com
Advertisement
Table of Contents
Related Manuals for TPI SP341C2
Summary of Contents for TPI SP341C2
- Page 1 Test Products International, Inc. Uses any K-Type probe with sub-mini connector Connects to smart phone and uses the TPI Smart Probe App Perform differential temperature meas- urements with one instrument Up to 6 SP341 smart probes can connect to a single mobile device (most devices) Auto field calibrate to +/-1°F system...
-
Page 2: Table Of Contents
TABLE OF CONTENTS A. Introduction............... 1 B. Safety Considerations..........1 C. Specifications............. 1 D. Instrument Overview..........2 E. Taking a Measurement..........3 F. Additional App Features..........4 G. Drop Down Menu............5 H. Entering Company and Customer Information.... 6 I. Performing Differential Temperature Measurements... 6 & 7 J. -
Page 3: Introduction
It is backed by a 3 year limited warranty. 2. Product Description: The SP341is a K-Type thermocouple thermometer “Smart Probe”. It connects to your mobile device and uses the TPI Smart Probe App to display temperature readings. Data can be exported to a CSV file as well. -
Page 4: Instrument Overview
D. INSTRUMENT OVERVIEW 1. Input connection for K-Type probes. Connector is recessed and polarized (marked + and -). Ensure the K- Type probe is connected properly (see below). 2. SP341 status LED indicator. Orange and blinking = Bluetooth not connected Green and blinking = Bluetooth connected Blinking Red with either of the above = Low battery 3. -
Page 5: Taking A Measurement
E. TAKING A MEASUREMENT 1. Download and install the TPI Smart Probe App onto your mobile device. Run the App. The “Main-Real Time” screen will be displayed. The App will say “No Devices” until a smart probe has been connected. -
Page 6: Additional App Features
F. ADDITIONAL APP FEATURES 1. Tapping “Graph” switches the Tap “Graph”. display to graph mode. The tem- perature will be displayed as a Each SP341 is displayed in a line graph. different color in the line graph. If multiple SP341’s are being used, each will have a different color in the App. -
Page 7: Drop Down Menu
G. DROP DOWN MENU The Smart Probe App has a Drop Down menu allowing access to additional app features. 1. Tap the Drop Down Menu icon to access additional features. Main - Real Time: Tapping this returns you to the main screen. Select Application: Tapping this pulls up sub applications for variious smart probes. -
Page 8: Entering Company And Customer Information
H. ENTERING COMPANY AND CUSTOMER INFORMATION The Smart Probe App allows you to enter your company information and the customer information who the test is being performed for. This information will be exported in the CSV file (see page 4). 1. -
Page 9: Performing Differential Temperature Measurements
PERFORMING DIFFERENTIAL TEMPERATURE MEASUREMENTS (cont) Two SP341being used One SP341being used 1. Tap the + icon to 1. Tap the + icon to select the SP341 select the SP341 to to use as T1 for use for the meas- the measurement. urement. -
Page 10: Performing Field Calibration
J. PERFORMING FIELD CALIBRATION (Zeroing Sensors) The Smart Probe App allows you to perform field calibration. This function enables a sys- tem accuracy (SP341 and Probe) of +/- 1°F (0.5°C) accuracy in the range of 30°F to 120°F (0°C to 48°C). Preparation for Field Calibration: Fill a plastic or metal container with crushed ice and add clean water to a depth of at least 4 inches. -
Page 11: Maintenance
K. MAINTENANCE 1. Clean the surface of the instrument with a damp cloth. 2. Replace the three AAA batteries when the low battery indicator appears. L. TROUBLE SHOOTING Symptom Probable Cause Temperature seems inaccurate. • Check thermocouple probe for incorrect wiring or open connection. -
Page 12: Warranty
To Obtain Warranty Performance: Include with the product: your name, address, phone number, written descrip- tion of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Longley House, International Drive... - Page 13 NOTES 1.800.561.8187 information@itm.com www. .com...
- Page 14 NOTES 1.800.561.8187 information@itm.com www. .com...
- Page 15 NOTES 1.800.561.8187 information@itm.com www. .com...
- Page 16 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Longley House, International Drive Southgate, Crawley, West Sussex RH10 6AQ Tel:: +44 (0) 1293 530196 www.tpieurope.com...
