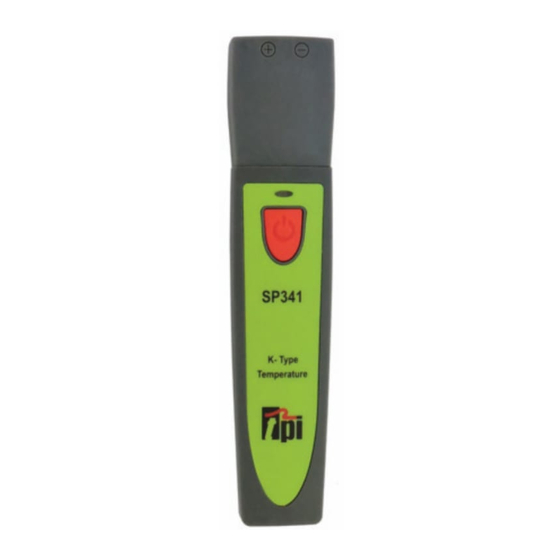

TPI SP341 Manual

K-type temperature smart probe
Hide thumbs Also See for SP341:
Table of Contents

Advertisement

Quick Links

Download this manual
SP341 K-Type Temperature
Smart Probe
Use standard K-type thermocouple probes with
sub mini input jack. GK41M included. Other probes
sold separately.
Test the TPI Advantage
Test Products International, Inc.
Uses any K-Type probe with sub-mini
connector
Connects to smart phone and uses the
TPI Smart Probe App
Perform differential temperature meas-
urements with one instrument
Up to 6 SP341 smart probes can connect
to a single mobile device (most devices)
Auto field calibrate to +/-1°F system
accuracy in the range of 30°F to 120°F
using field calibrate mode
3 Year Limited Warranty
Visit www.testproductsintl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP341 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TPI SP341

Summary of Contents for TPI SP341

  • Page 1 TPI Smart Probe App Perform differential temperature meas- urements with one instrument Up to 6 SP341 smart probes can connect to a single mobile device (most devices) Auto field calibrate to +/-1°F system accuracy in the range of 30°F to 120°F...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS A. Introduction............... 1 B. Safety Considerations..........1 C. Specifications............. 1 D. Instrument Overview..........2 E. Taking a Measurement..........3 F. Additional App Features..........4 G. Drop Down Menu............5 H. Entering Company and Customer Information.... 6 I. Performing Differential Temperature Measurements... 6 & 7 J.

  • Page 3: Introduction

    A. INTRODUCTION 1. Congratulations: Thank you for purchasing TPI products. The SP341 is easy to use and built to last. It is backed by a 3 year limited warranty. 2. Product Description: The SP341is a K-Type thermocouple thermometer “Smart Probe”. It connects to your mobile device and uses the TPI Smart Probe App to display temperature readings.

  • Page 4: Instrument Overview

    Lift on the screw to open the compartment. K-Type probe connectors are polarized and made so one prong is wider than the other. This ensures connection with the proper polarity is made. They are marked + and - just like the SP341 connector.

  • Page 5: Taking A Measurement

    The App will say “No Devices” until a smart probe has been connected. 2. Press and hold the SP341 On/Off key down until it turns on. The Displays the measured tem- LED indicator will initially be perature if a probe is con- orange and blink.

  • Page 6: Additional App Features

    F. ADDITIONAL APP FEATURES 1. Tapping “Graph” switches the Tap “Graph”. display to graph mode. The tem- perature will be displayed as a Each SP341 is displayed in a line graph. different color in the line graph. If multiple SP341’s are being used, each will have a different color in the App.

  • Page 7: Drop Down Menu

    Select Application: Tapping this pulls up sub applications for variious smart probes. These include Temperature differential (SP341), Air Volume Calulation (SP565), and Tightness Test (SP620). Note: There are no sub applications for the SP1000. Company Info: Allows you to enter your information to show up on the CSV file report.

  • Page 8: Entering Company And Customer Information

    The Smart Probe App allows you to perform differential temperature measurements with one or two smart probes. 2. Tap “Select 1. Tap the Drop Application”. Down Menu icon to access addi- tional features. 4. If one SP341 3. Select is being used “Temperature tap on (T1-T2). “Single”. Note: The other...
  • Page 9 SP341 to to use as T1 for use for the meas- the measurement. urement. 2. Tap the other + 2. Tap the SP341 being icon to select the used. SP341 to use as T2 for the meas- urement.

  • Page 10: Performing Field Calibration

    J. PERFORMING FIELD CALIBRATION (Zeroing Sensors) The Smart Probe App allows you to perform field calibration. This function enables a sys- tem accuracy (SP341 and Probe) of +/- 1°F (0.5°C) accuracy in the range of 30°F to 120°F (0°C to 48°C).

  • Page 11: Maintenance

    • Low battery. • Non K-Type probe being used. • Ensure connection with phone is working. SP341 does not turn on. • Dead or low batteries. • Not holding down power switch until unit turns on. • Defective POWER ON switch.

  • Page 12: Warranty

    To Obtain Warranty Performance: Include with the product: your name, address, phone number, written descrip- tion of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Longley House, International Drive...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Longley House, International Drive Southgate, Crawley, West Sussex RH10 6AQ Tel:: +44 (0) 1293 530196 www.tpieurope.com...
