9070 Vibration Analysis
uality Products Online at:

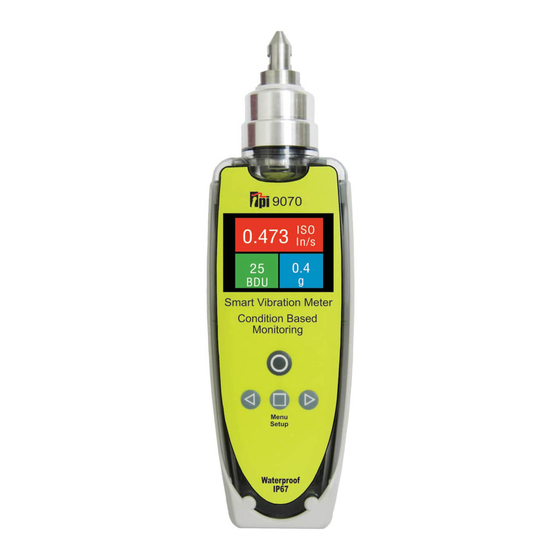

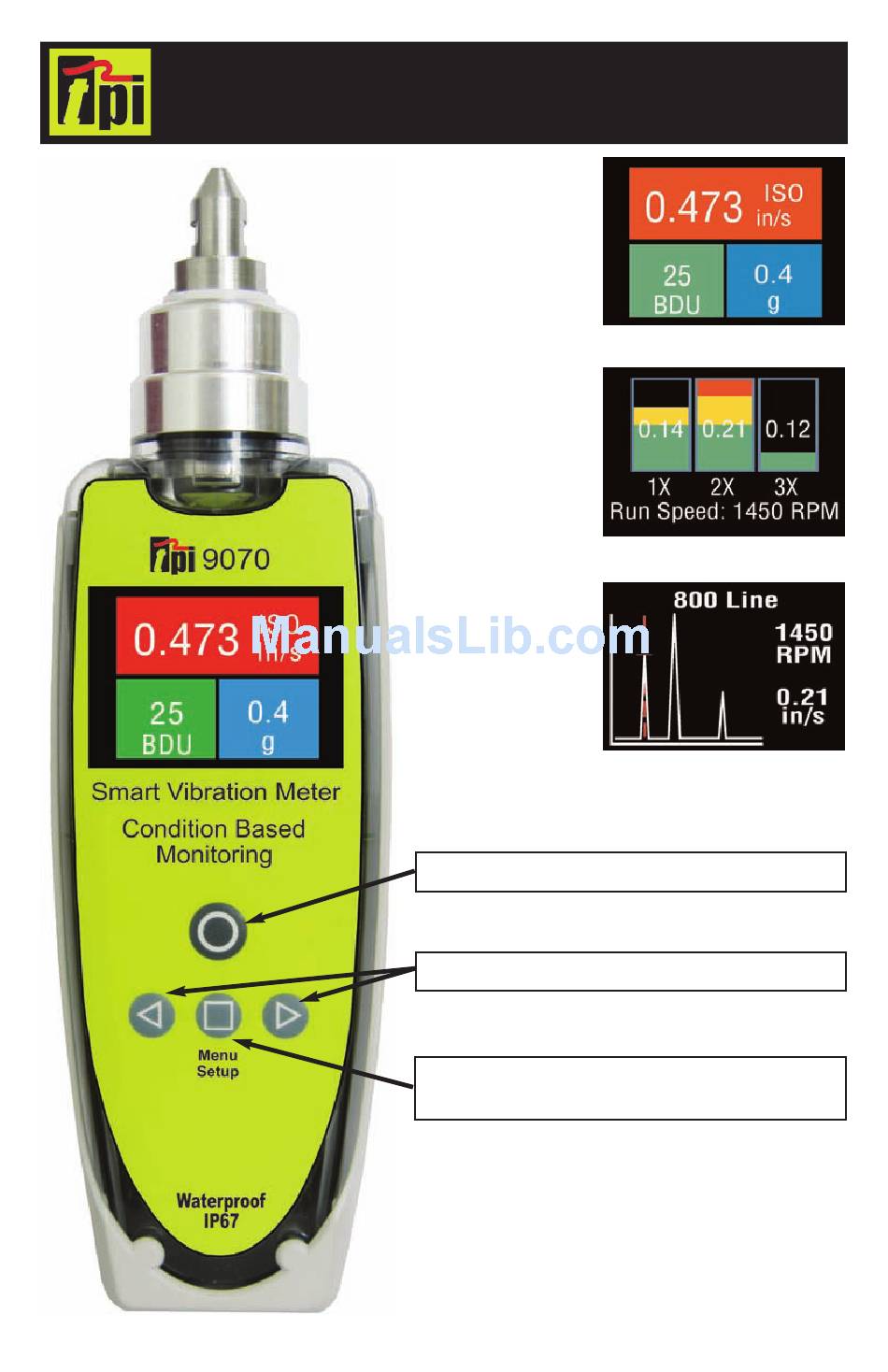

9070 Smart Vibration Meter
Instruction Manual
Overall machine and
bearing conditions:
vibration values are displayed
with color coded alarm levels
for ISO values and Bearing
Damage (BDU).
Easy vibration
analysis:
1X (unbalance)
2X (misalignment)
3X (looseness)
Identify complex
issues:
100 to 800-line
spectrum with
zoom and cursor.
GlobalTestSupply
www.
Power ON & Measure
Navigation & Cursor Movement
Screen Select / Push & Hold for
2 seconds for Menu Setup
Copyright © 2012 Test Products International, Inc.
.com
PAGE 1
sales@GlobalTestSupp
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TPI 9070
Summary of Contents for TPI 9070
- Page 1 9070 Smart Vibration Meter Instruction Manual Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU). Easy vibration analysis: 1X (unbalance) 2X (misalignment) 3X (looseness) Identify complex issues: 100 to 800-line spectrum with zoom and cursor.
-
Page 2: Table Of Contents
TPI does not assume any liability out of the use of any product described herein; neither does it convey any licence under its patent rights nor the rights of others. -
Page 3: Overview
1 OVERVIEW The 9070 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically per- forms vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness. -
Page 4: Operation
Total g (acceleration) always displays on a Blue background. These readings are explained in more detail below with some examples of what they actually mean: PAGE 4 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... - Page 5 Setup Wizard (see section 2.2.1). ---------------------------------------------------------------------------------------------- ISO 10816-1:1995. Mechanical vibration -- Evaluation of machine vibration by measurements on non-rotating parts PAGE 5 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. .com uality Products Online at:...
-
Page 6: Vibration Analysis
The display shows the vibration velocity in frequency ranges that are all based on multiples of the specified Run Speed of the machine, and as displayed beneath the 3 bar graphs. PAGE 6 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com uality Products Online at:... - Page 7 “excited” by the vibration of the machine. ---------------------------------------------------------------------------------------------- Multiples of running speed are often referred to as “orders” PAGE 7 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. .com...
-
Page 8: Frequency Spectrum
PAGE 8 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com... -
Page 9: Settings Menu
Changing the running speed is achieved by pressing the left (to decrease run speed) or right (to increase run speed) arrow buttons. PAGE 9 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. .com uality Products Online at:... - Page 10 Most motors and pumps are mounted on some kind of frame or structure and as such should definitely be considered as flexibly mounted. PAGE 10 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
-
Page 11: Load & Save Readings
The final option on the Load & Save screen allows the user to select Demo Data, which loads pre-stored vibration readings from one of two sets of demonstration data (Demo 1 and Demo 2). PAGE 11 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. -
Page 12: Advanced Settings
Higher run speeds may need increased BDU threshold values to identify worn or bad bearings. Lower run speeds may need decreased BDU threshold values to identify worn or bad bearings. PAGE 12 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com uality Products Online at:... -
Page 13: Units
Hertz are equivalent to, and also sometimes referred to as, cycles per second (CPS). Revolutions per minute (RPM) are sometimes also referred to as cycles per minute (CPM) PAGE 13 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. - Page 14 A total of 14 languages are available, 4 of which are loaded depending on the exact model of 9070. The Graph Mode can be set to display the frequency spectrum as either a Bar graph or a Line graph.
-
Page 15: Specifications
• Extended probe tip (stinger) part number A9072 5 Revision History ISSUE PAGES DATE NOTES March 2012 First Issue - JKA PAGE 15 9070 Vibration Analysis Copyright © 2012 Test Products International, Inc. GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 16: Operation
Fax: 905-693-0888 info@tpicanada.com Test Products International UK Ltd. Tel: +44 (0)1293 561212 Fax: +44 (0)1293 813465 e-mail: info@tpi-uk.com Photo Actual Size PAGE 16 Copyright © 2012 Test Products International, Inc. 9070 Vibration Analysis GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
