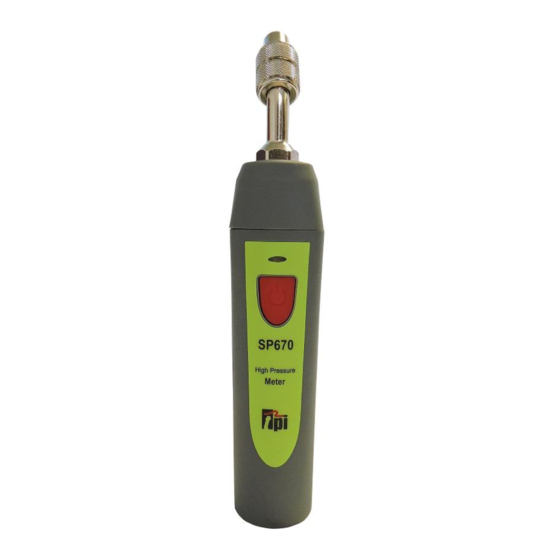

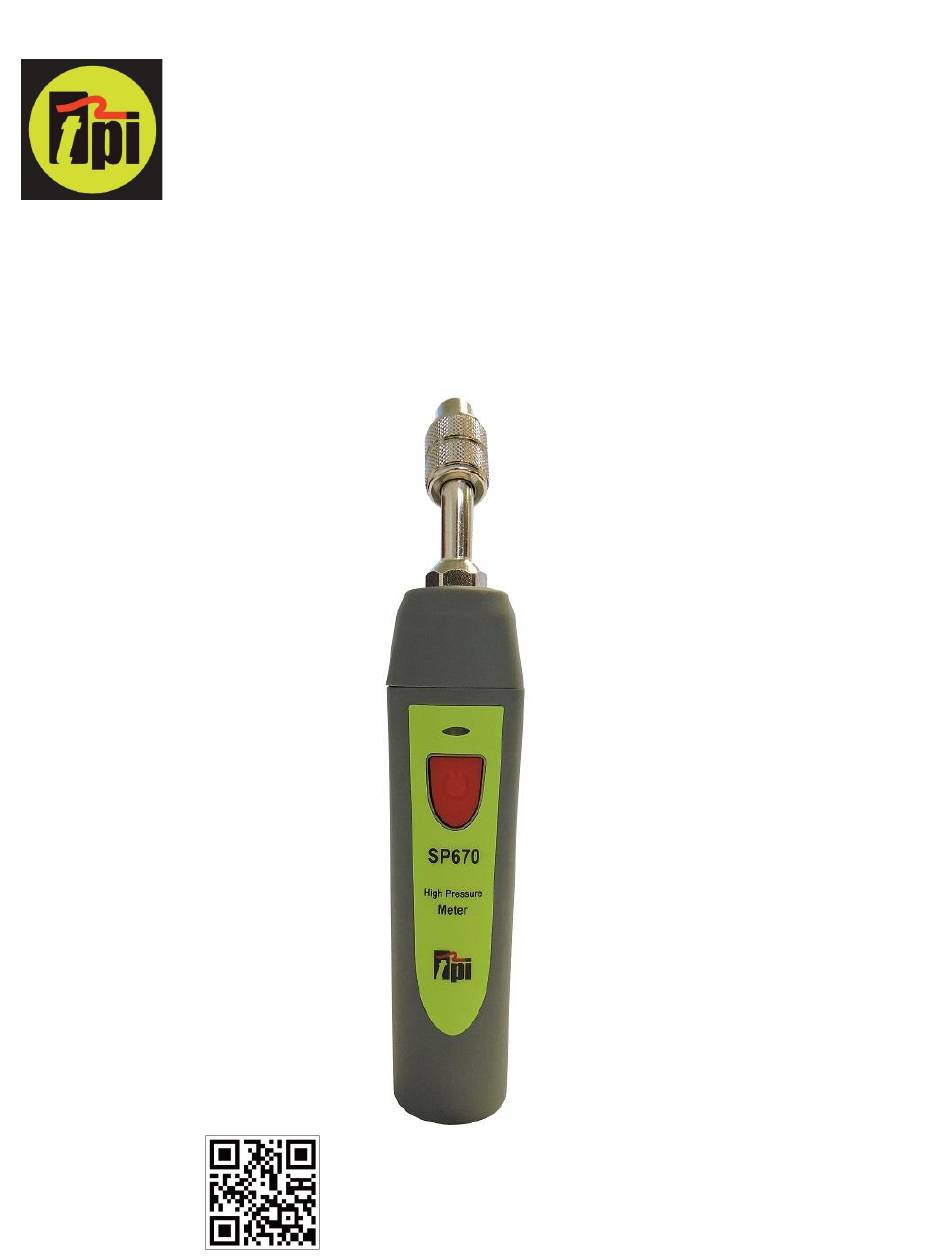

- Page 1 SP670 Smart Pressure Probe Instruction Manual Scan to download the TPI View app:...
-
Page 2: Operation
The TPI SP670 Smart Pressure Probe is used to measure pressure on refrigeration systems. It connects to a smart device using the TPI View App. It sends live measurement data and can be used in conjunction with the SP323 Smart Temperature Clamp Probe to calculate Superheat and Subcooling using the App. -
Page 3: Led Indicator
LED – Batteries need to be replaced AUTO POWER OFF If the SP670 is not connected to a smart device for more than 8 minutes it will auto power off. When connected to a smart device the auto power off is disabled. -
Page 4: General Maintenance
GENERAL MAINTENANCE Housing: The SP670 can be wiped down with a damp lint free cloth. Do not use any cleaning agents including solvent or soap. Battery Replacement: When the LED indicator blinks Red the batteries need to be replaced. 1. Turn the SP670 off. Loosen the battery cover screw and open the cover. - Page 5 SPECIFICATIONS Pressure Range -14.7 psi to 870 psi (-1 bar to 60 bar) Over Pressure Range 1000 psi (70 bar) Input Connection 7/16"-20 UNF / ¼" SAE Resolution 0.1 psi / 0.01 bar Accuracy +/- 0.5% of full scale Battery Life Approximately 160 hours Battery Type AAA x 3 alkaline...
-
Page 6: Warranty
A670SP – Soft Pouch for SP670 SP670 OPTIONAL ACCESSORIES A670 – Replacement Schrader valve depressor and gasket A931 – Carrying case capable of holding (2) SP670 pressure probes, (2) SP323 temperature clamps, and (2) A597 humidity probes WARRANTY This product is warranted to the purchaser against defects in material and workmanship for three years from the date of purchase. - Page 7 applicable. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. NOTES...
- Page 8 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Rutherford Way Industrial Estate Rutherford Way Manor Royal Crawley...
