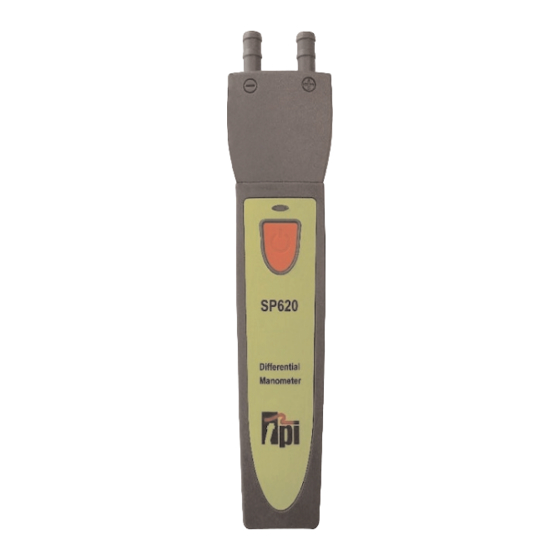

SP620 Differential Manometer
Smart Probe
.
Test the TPI Advantage
Test Products International, Inc.
Connects to smart phone and uses the
TPI Smart Probe App
Perform differential pressure measure-
ments
Up to 6 SP620 smart probes can connect
to a single mobile device (most devices)
3 Year Limited Warranty
Visit www.testproductsintl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP620 and is the answer not in the manual?

Questions and answers

Related Manuals for TPI SP620

Summary of Contents for TPI SP620

  • Page 1 Connects to smart phone and uses the TPI Smart Probe App Perform differential pressure measure- ments Up to 6 SP620 smart probes can connect to a single mobile device (most devices) 3 Year Limited Warranty Test the TPI Advantage Visit www.testproductsintl.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS A. Introduction..............1 B. Safety Considerations..........1 C. Specifications.............. 1 D. Instrument Overview........... 2 E. Taking a Measurement..........3 & 4 F. Additional App Features..........5 G. Drop Down Menu............6 H. Entering Company and Customer Information.... 7 I.

  • Page 3: Introduction

    A. INTRODUCTION 1. Congratulations: Thank you for purchasing TPI products. The SP620 is easy to use and built to last. It is backed by a 3 year limited warranty. 2. Product Description: The SP620 is a differential manometer “Smart Probe”. It connects to your mobile device and uses the TPI Smart Probe App to display temperature readings.

  • Page 4: Instrument Overview

    D. INSTRUMENT OVERVIEW 1. Input connection for pressure measurements. Inputs are marked + and -. 2. SP620 status LED indicator. Orange and blinking = Bluetooth not connected Green and blinking = Bluetooth connected Blinking Red with either of the above = Low battery 3.

  • Page 5: Taking A Measurement

    “Main-Real Time” screen will be displayed. The App will say “No Devices” until a smart probe has been connected. 2. Press and hold the SP620 On/Off key down until it turns on. The Displays the measured LED indicator will initially be pressure.
  • Page 6 6. Select “Zeroing Sensors” to bring up the field calibration screen. 7. Tap the + icon to select the SP620 to be zeroed. 8. Tap the SP620 to be zeroed. 7. Tap the Reset icon to set the pressure reading to 0 (+/- 0.05 counts) 8.

  • Page 7: Additional App Features

    F. ADDITIONAL APP FEATURES 1. Tapping “Graph” switches the Tap “Graph”. display to graph mode. The tem- perature will be displayed as a Each SP620 is displayed in a line graph. different color in the line graph. If multiple SP620’s are being used, each will have a different color in the App.

  • Page 8: Drop Down Menu

    These include Temperature differential (SP341), Air Volume Calulation (SP565), and Tightness Test (SP620). Note: There are no sub applications for the SP1000. Company Info: Allows you to enter your information to show up on the CSV file report. You can enter your company name, address, and email.

  • Page 9: Entering Company And Customer Information

    I. PERFORMING TIGHTNESS TEST The SP620 and smart probe app provide the capability of performing a standing pressure or Tightness Test/. This test is mostly used in Europe and is a way to check for leaks in sealed systems.
  • Page 10 8. Tap the + icon to 7. The tightness Test select the SP620 settings menu will to be zeroed. display. Tap the SP620 to Set the alarm point be zeroed. for the maximum allowable drop from the starting pres- sure.
  • Page 11 PERFORMING TIGHTNESS TEST (cont) 10. Tap the “Play” 9. Connect the tubing icon to begin the to the device under test. . A count- test. Pressurize the down timer will device. begin. This is the stabilization peri- P2 will display the current pressure.

  • Page 12: Maintenance

    • Check tubing for kinks or cuts. • Low battery. • Ensure connection with smart device is working. SP620 does not turn on. • Dead or low batteries. • Not holding down power switch until unit turns on. • Defective POWER ON switch.

  • Page 13: Warranty

    To Obtain Warranty Performance: Include with the product: your name, address, phone number, written descrip- tion of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Longley House, International Drive...
  • Page 14 NOTES...
  • Page 15 NOTES...
