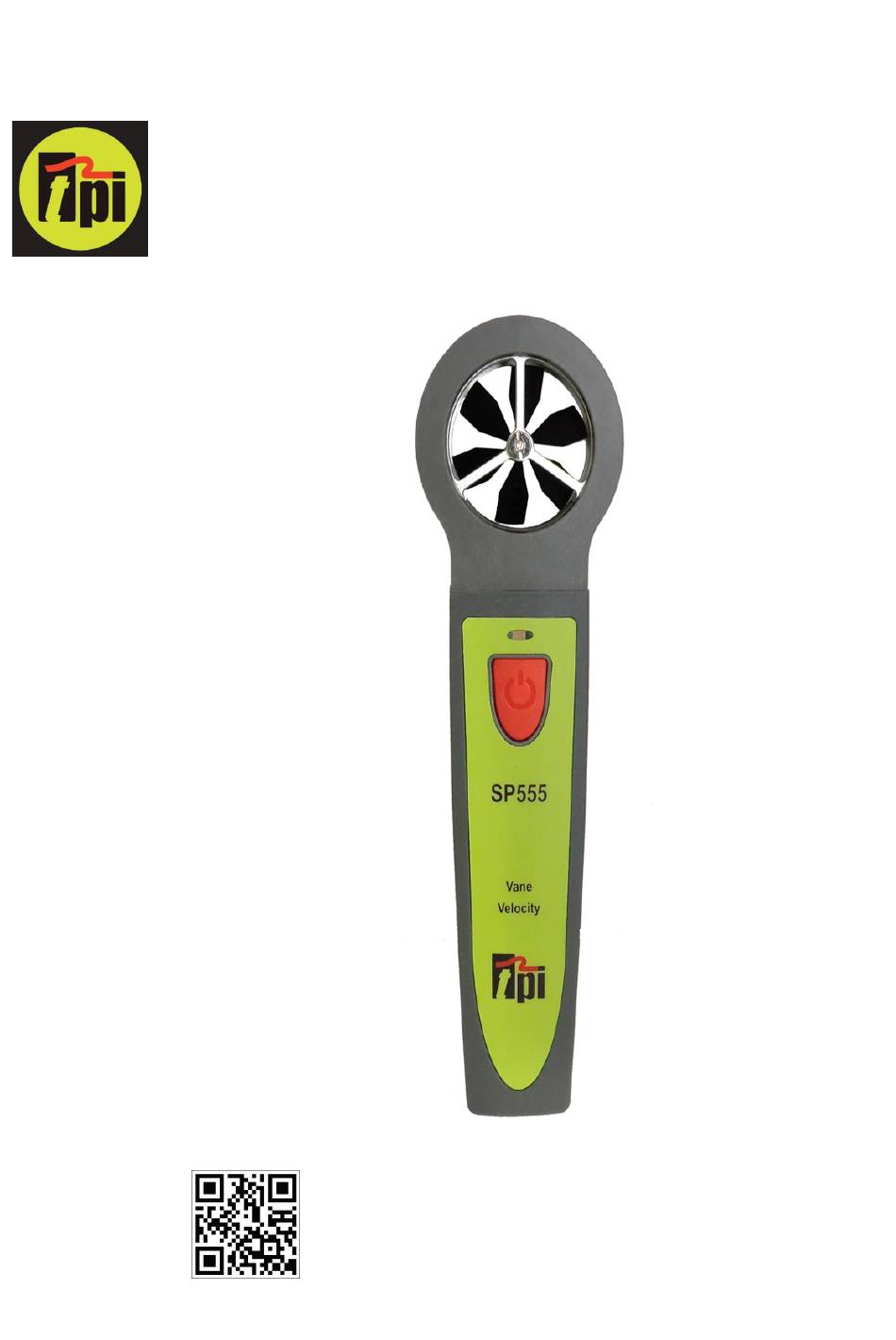

- Page 1 SP555 Smart Air Velocity Probe Instruction Manual Scan to download the TPI View app:...
- Page 2 Description & Overview The TPI SP555 Smart Vane Air Velocity Probe is used to measure air velocity, temperature, and calculate air flow (volume) in heating and cooling systems, and ambient air. It connects to a smart device using the TPI View app.
- Page 3 Air Flow (CFM) Air flow (CFM) can be calculated using the SP555. The size of the duct must be entered into the app. If the size of the duct is not entered into the app, the CFM reading will be dashed lines as the app cannot calculate CFM without a duct size.
- Page 4 Select ‘Timed Average’ in the app. Determine the type and size of the grill and enter it into the View App. Position the SP555 at the end of the grill. The arrow on top of the SP555 indicates the direction it should be oriented in the air flow.
- Page 5 Select Multi Average in the TPI View App. Determine the type and size of the duct (grill) and enter it into the View App. 3. Position the SP555 at the end of the grill. The arrow on top of the SP555 indicates the direction it should be oriented in the air flow.
- Page 6 AUTO POWER OFF If the SP555 is not connected to a smart device for more than 8 minutes it will auto power off. When connected to a smart device the auto power off is disabled. Auto power off is also disabled during data logging.
- Page 7 SPECIFICATIONS Range 98 ft/min to 4900 ft/min (0.5 m/s to 25 m/s) Air Velocity Resolution 2 ft/min / 0.1 m/s Measurement Accuracy +/- (2% of reading + 59 fpm) or +/- (2% of reading +0.3 m/s) Range -4⁰F to 140⁰F (-20⁰C to 60⁰C) Temperature Resolution 0.1⁰F / 0.1⁰C...
- Page 8 SP565 STANDARD ACCESSORIES A555SP – Soft Pouch for SP555 SP555 OPTIONAL ACCESSORIES A925 – Carrying case capable of holding four smart probes A927 – Carrying case capable of holding two smart probes...
- Page 9 WARRANTY This product is warranted to the purchaser against defects in material and workmanship for three years from the date of purchase. Covered by Warranty: Repair parts and labor; or replacement of the product at company’s option. Normal transportation charges to the purchaser are also covered. Not Covered by Warranty: Damages to the product which are the result of abuse, improper use or maintenance are not covered.
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Rutherford Way Industrial Estate Rutherford Way Manor Royal Crawley...
