A S S E M B LY I N S T R U C T I O N S
The Bloomsbury Trellis*

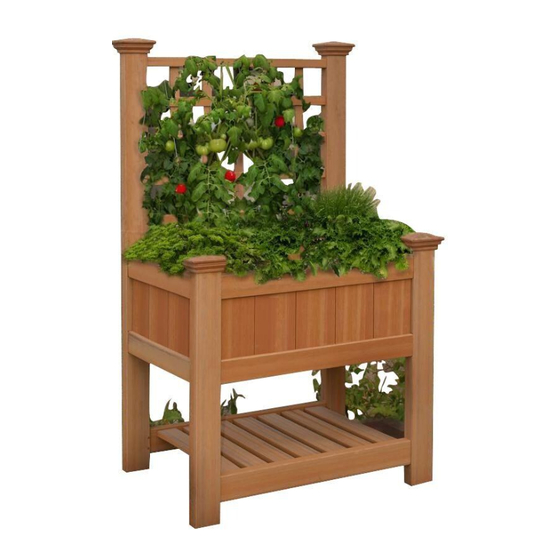

*The Bloomsbury is designed to mount on to our Bloomsbury Raised Planter Box (sold separately) as shown above.
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 800 282 9346, ext #20
(Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Posts (2)
2. Top and Bottom Rails (2) - 1.5" x 1.5" x 35.75"
3. Horizontal Spindles (3) - 1.5" x .875" x 31"
4. Vertical Spindles (5) - 1.5" x .25" x 21"
5. 1" Self-Auguring Stainless Steel Screw (4)
Tools You Will Need
• Cordless Drill
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
¡
¢
£
1
2
3
4
5
Not to Scale
www.newenglandarbors.com
¦
¢
£
¢
£
¤
¥
¦
§
Ver 1.0 /Nov 2013
¦
¢
£
