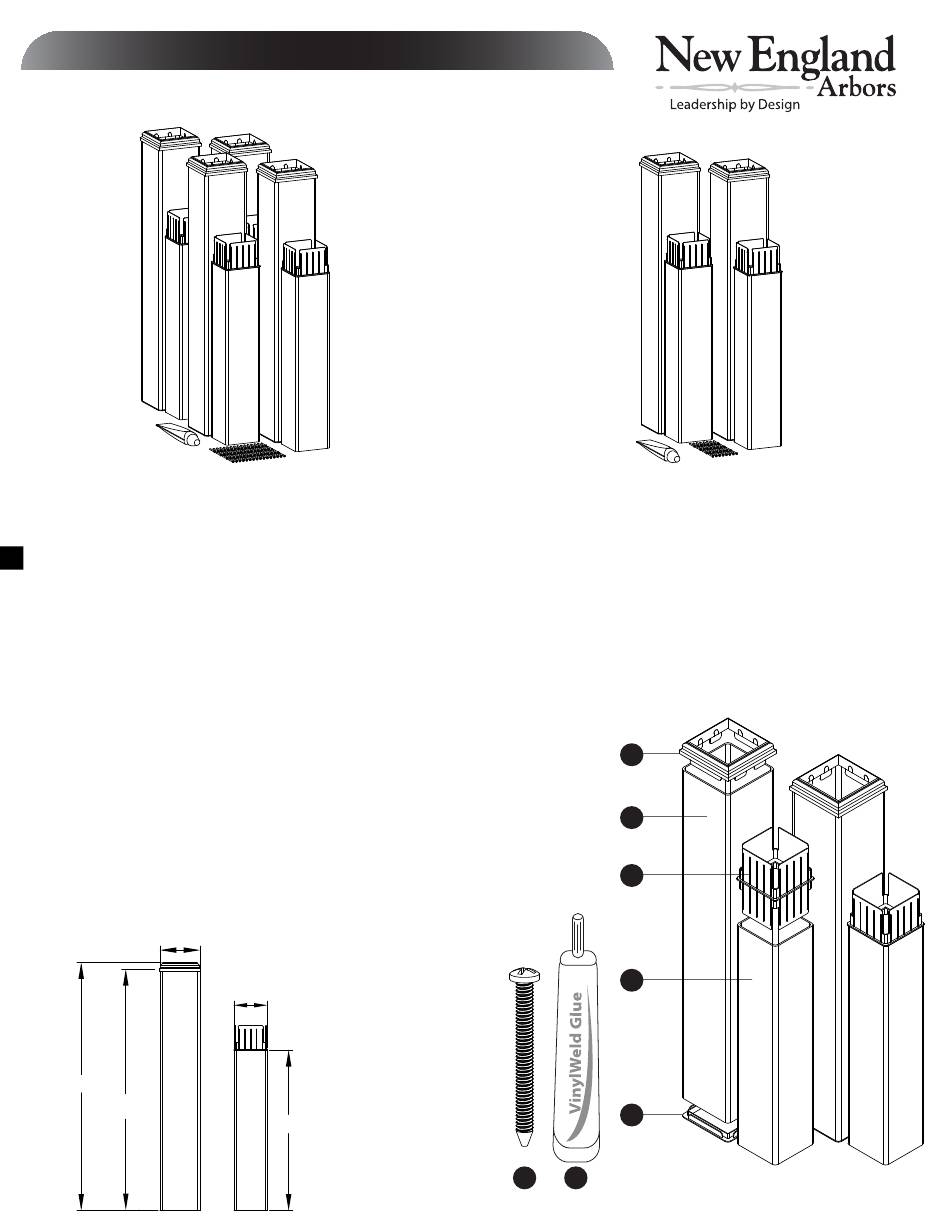

A S S E M B LY I N S T R U C T I O N S

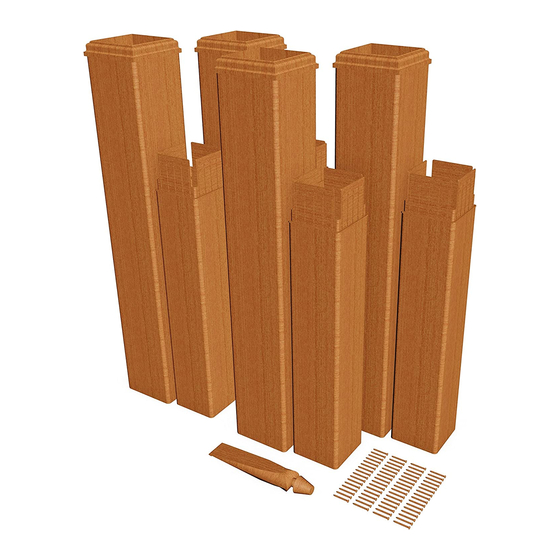

Pergola Extension Kit
VA80350 - 4 Pack Pergola Extension Kit - White
VA84350 - 4 Pack Pergola Extension Kit - Composite
Please read through before starting installation.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
4 Pack Pergola Extension Kit
1.
Top Trim Cap (4) White #10764 Composite #14055
2.
Tall Extrusion (4) White #10175-1 Composite #14092 - 6" x 6" x 36"
3.
Bottom Trim (4) White #10765 Composite #14057
4.
Post Joiner (4) - White #10725-1 Composite #14052
5.
Post Extension (4) - White #10254 Composite #14093 - 5" x 5" x 24"
6.
1 1/2" Pan Head Steel Screw (64) - White #20005 Composite #20031
7.
Vinyl Glue (1) - White #20000 Composite #20022
2 Pack Pergola Extension Kit
1.
Top Trim Cap (2) White #10764 Composite #14055
2.
Tall Extrusion (2) White #10175-1 Composite #14092 - 6" x 6" x 36"
3.
Bottom Trim (2) White #10765 Composite #14057
4.
Post Joiner (2) - White #10725-1 Composite #14052
5.
Post Extension (2) - White #10254 Composite #14093 - 5" x 5" x 24"
6.
1 1/2" Pan Head Steel Screw (32) - White #20005 Composite #20031
7.
Vinyl Glue (1) - White #20000 Composite #20022
6 in
37 1/8 in
36 in
5 in
24 in
VA80352 - 2 Pack Pergola Extension Kit - White
VA84352 - 2 Pack Pergola Extension Kit - Composite
1
2
4
5
3
6
7
V1.0/112916
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for New England Arbors VA80350
Summary of Contents for New England Arbors VA80350
- Page 1 A S S E M B LY I N S T R U C T I O N S Pergola Extension Kit VA80350 - 4 Pack Pergola Extension Kit - White VA80352 - 2 Pack Pergola Extension Kit - White...
- Page 2 S T E P ONE Base Molding Assembly Using the glue provided, run a small bead around the inside of the base molding extrusion. Carefully place the bottom trim on one end of the base molding extrusion. Run another bead of glue on the other (inside) end of the base molding extrusion.
- Page 3 S T E P TWO Post Extension Assembly Using the glue provided, run a small bead around the inside of the Post Extension as shown. Carefully place the post joiner in the post extension. Repeat for all Post Extensions. Note: Please allow the glue to set for 15 minutes prior to installing the post extension on the pergola.
- Page 4 S T E P THREE Post Extension Installation Identify the bottom of the pergola post; in most cases, the top of the pergola post will have pre-routed holes. Slide the base molding assembly over the pergola post through the bottom side as shown.
