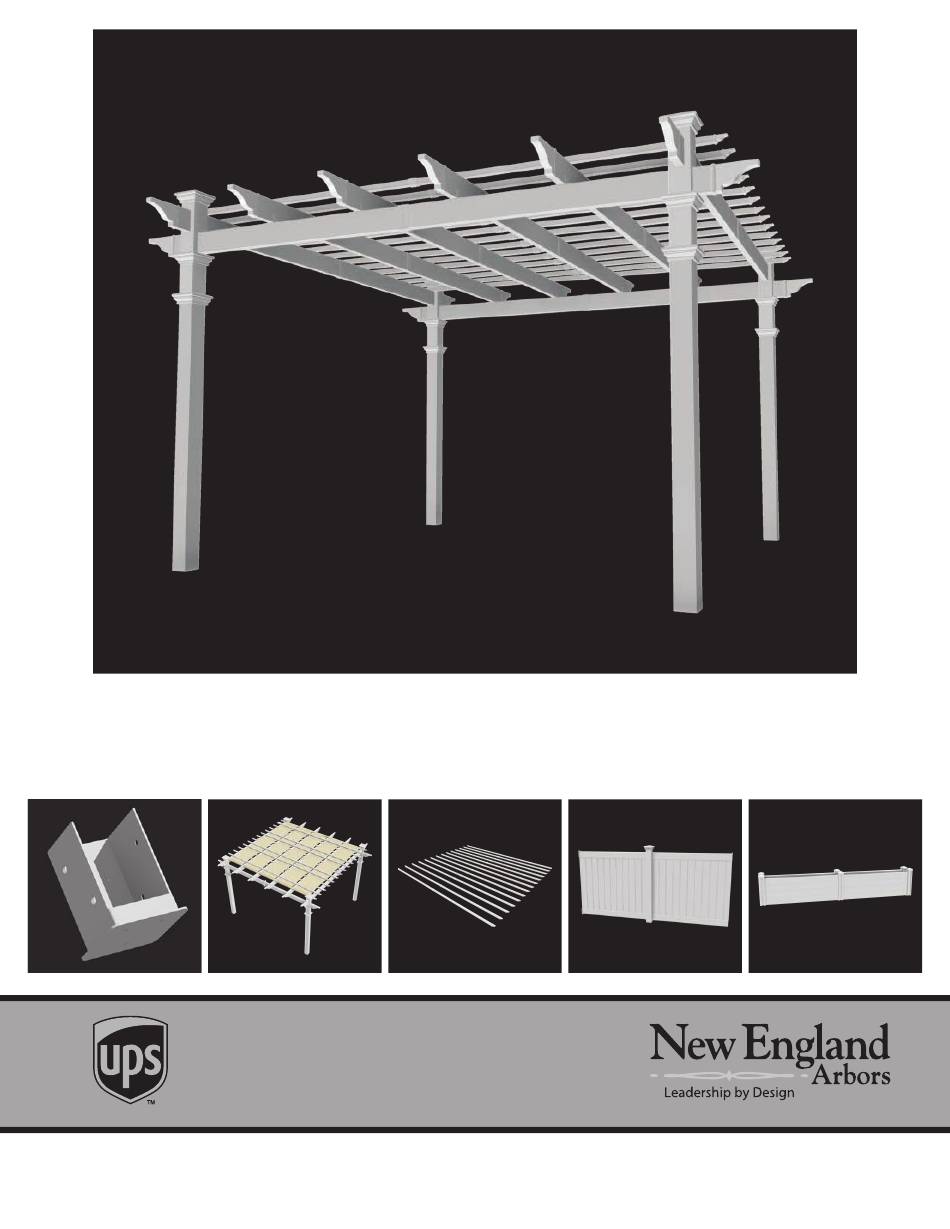

12 x 12 Flat Top Pergola
A S S E M B L Y G U I D E
Regency, Roosevelt
Model:
O P T I O N A L A C C E S S O R I E S :
• Bolt Down Bracket Kit
• Canvas Weave
• Shade Kit
• Privacy Wall
• Pergola Planter
(4 for Pergola)
(Regency Only)
(Regency Only)
Ver 1.7-101415
www.newenglandarbors.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for New England Arbors UPS Regency
Summary of Contents for New England Arbors UPS Regency
- Page 1 12 x 12 Flat Top Pergola A S S E M B L Y G U I D E Regency, Roosevelt Model: O P T I O N A L A C C E S S O R I E S : •...
- Page 2 Ta b l e o f Co n t e n t s PAGE 12 x 12 Flat Top Pergola Introduction & Overview……………………………..........………..Pergola Materials Overview……………………….
- Page 3 I n t r o d u c t i o n & O ve r v i e w (Regency Pergola Shown) Getting Started Restriction of Use First off, allow us to say thank you for the investment you have made in one This product is not designed to carry additional of our fine pergola kits.
- Page 4 Regency Pergola Materials Overview www.newenglandarbors.com 1. Post Caps (4) 2. Main Column Tops (4) 3. Post Trims (8) 171 1/2 in 4. Rafter & Beam Decorative End Caps (16) 5. Main Support Beams (4) 6. Beam & Rafter Joiners (8) 7.
- Page 5 Regency Pergola Materials Breakdown www.newenglandarbors.com Check Boxes (Total of 6) for These Contents In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST). 1.
- Page 6 Pergola Additional Materials List www.newenglandarbors.com Hardware (in plastic bag) NOTE: WE HAVE INCLUDED 10% EXTRA SCREWS BEYOND WHAT IS IDENTIFIED BELOW. All Screws Included with this Kit are Self-Auguring. A. Vinyl Weld Glue (3) B. 2 1/2” Self-Auguring Stainless Steel Screws (16) (to lock vinyl column and wood post together at bottom of each post) C.
- Page 7 Wood Post Layout & Installation www.newenglandarbors.com for In-Ground Application This pergola can also be installed on a pre-existing wood or concrete surface using our bolt down bracket system with Overhead View a 4x4 wood post (sold separate). See page eight for more details. 135 1/2 in.
- Page 8 O P T I O N A L S T E P www.newenglandarbors.com Wood Post Layout & Installation Using Bolt Down Brackets 134 3/8 in for Concrete or Wood Surface 341.3 cm * Orientate brackets accordingly to reduce Measure and mark out the location of the bolt down brackets offset motion of posts.
- Page 9 *Ensure that holes at top of column are orientated correctly for S T E P T H R E E future beam and rafter placement. Vinyl Column Assembly & Installation Over Wood Posts Using the vinyl weld glue, insert the One Way 4”x4” Internal Wood Post Guide in the one end of the main column posts.
- Page 10 At this stage, the columns should be properly installed as per the following illustration, with the columns 134” in. (340.4 cm) apart. www.newenglandarbors.com Also, notice that the holes at the top of each post should be facing the same direction. Pre-drilled holes on the top 134 in.
- Page 11 S T E P F I V E www.newenglandarbors.com Rafter Assembly Insert one 2x6x12 pressure treated wood into a rafter section followed by the joiner and another rafter section. Screw the joiner to rafters and wood insert using 1 1/2” screws Repeat steps 1 and 2 for the remainder of the rafters.
- Page 12 S T E P S I X Main Support Beams & Rafters Placement Using a helper and two ladders proceed to complete the following steps: Slide the main support beam with rafter clips pre-installed through both holes of the vinyl column (overshooting), and then back through both holes of the opposite column.
- Page 13 S T E P S E V E N Fastening Rafters & Caps Using 5/8” self-auguring stainless steel screws attach the pergola rafters to the rafter brackets. Install decorative pergola end caps using vinyl weld. Install the post caps using vinyl weld. Final position your post trims.
- Page 14 S T E P E I G H T www.newenglandarbors.com Shade Slat Assembly Assemble shade slats by first gluing the decorative end caps as shown, and then inserting the two slats into one joiner. Push firmly until extrusion bottoms out inside joiner. No screws are necessary.
