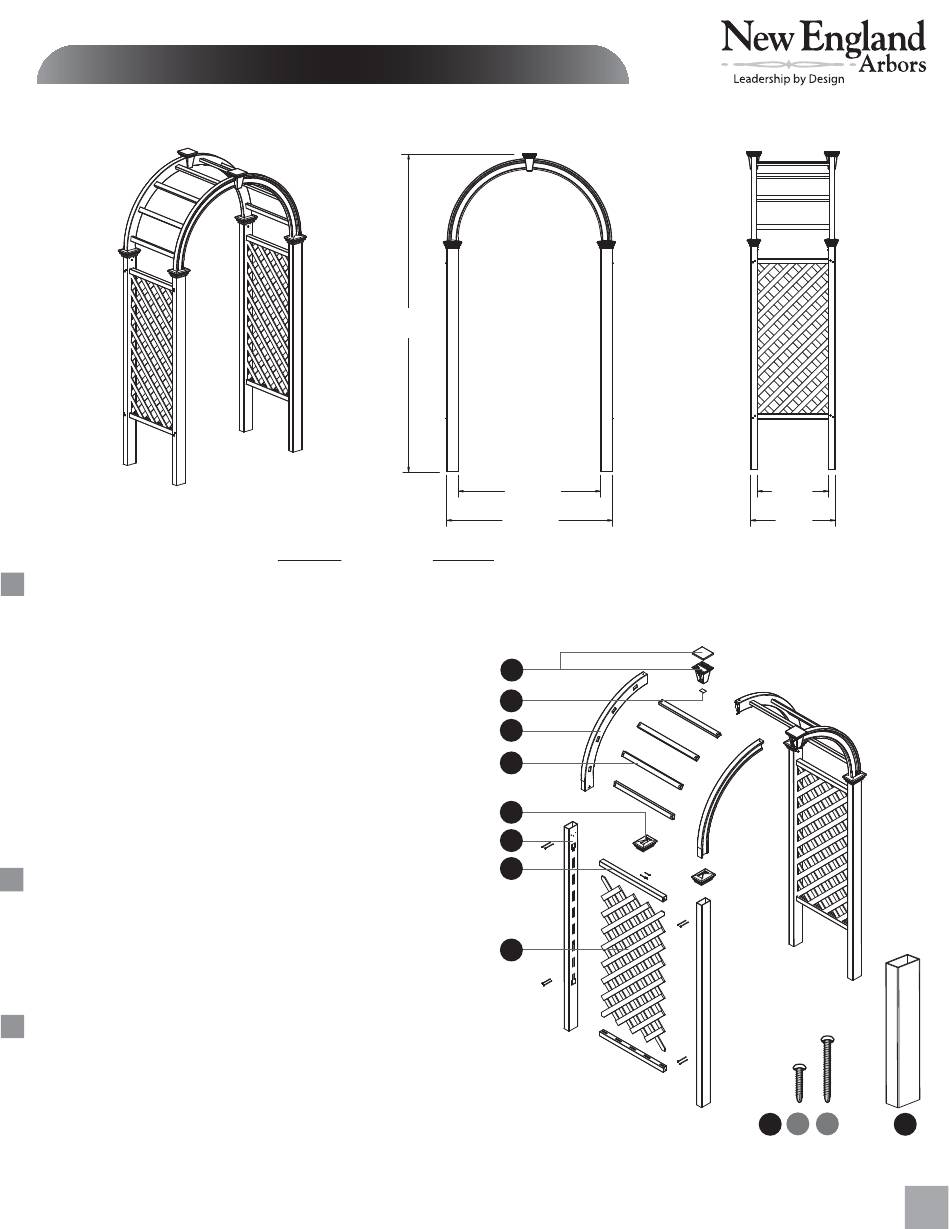

A S S E M B LY I N S T R U C T I O N S

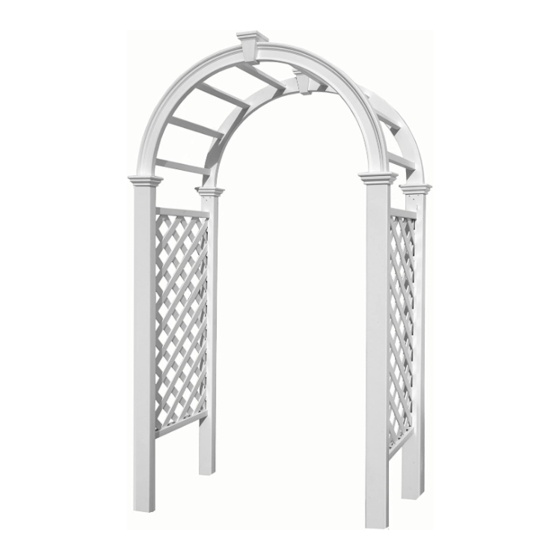

The Livingston Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 - Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Arch Keystone
(10836)
2. Keystone Bottom Plate (2) -
3. Arches (4) -
(2 ea. Right 10671-1 , 2 ea. Left 10670-1)
4. Arch Rafters (8) -
10672-1
5. Post Caps (4) -
( 2 ea. Right 10674-1 & 2 ea. Left 10673-1)
6. Posts (4) -
10791
7. Side Panel Horizontal Rails (4) -
8. Lattice (2) -
10780
9. Hardware (in plastic bag)
a)
1 1/2" (38 mm) Self-Auguring Screws (24) -
b)
3" (76 mm) Self-Auguring Screws (16 ) -
10. Ground Mounting Extensions (4) -

Tools You Will Need

• Cordless Drill
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
91.5 in
(232 cm)
& Top Lid
& Keystone Insert
(10668-1)
10666-1
10833
20005
20007
10844
42 in
(107 cm)
49 in
(124 cm)
-
(10837)
(2 of each)
1
2
3
4
5
6
7
8
www.newenglandarbors.com
www.newenglandarbors.co.uk
20 in
(51 cm)
24 in
(61 cm)
9 a
b
10
Not to Scale
V2.2/081817
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Livingston Arbor and is the answer not in the manual?

Questions and answers

Roger Guyette
May 17, 2025

where can I purchase a new solar light for my livingston arbor

Subscribe to Our Youtube Channel

Summary of Contents for New England Arbors Livingston Arbor

  • Page 1 A S S E M B LY I N S T R U C T I O N S The Livingston Arbor / Arch www.newenglandarbors.com www.newenglandarbors.co.uk 91.5 in (232 cm) 42 in 20 in (107 cm) (51 cm) 49 in Please read through before starting assembly.
  • Page 2 Install post caps on the bottom of all arches. Slide up into temporary position until they hit the first rafter. Slide up to the first rafter. The Livingston Arbor / Arch...
  • Page 3 You will need a helper. Pull the post caps down into final position over the posts and fasten the arch system to the posts by installing two 1 1/2" (38 mm) screws per post as illustrated The Livingston Arbor / Arch...
  • Page 4 S T E P F O U R Temporary Arbor Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground mounting extensions for securing the arbor in a temporary application like a wedding, etc. These stakes are not designed to permanently mount your arbor.
