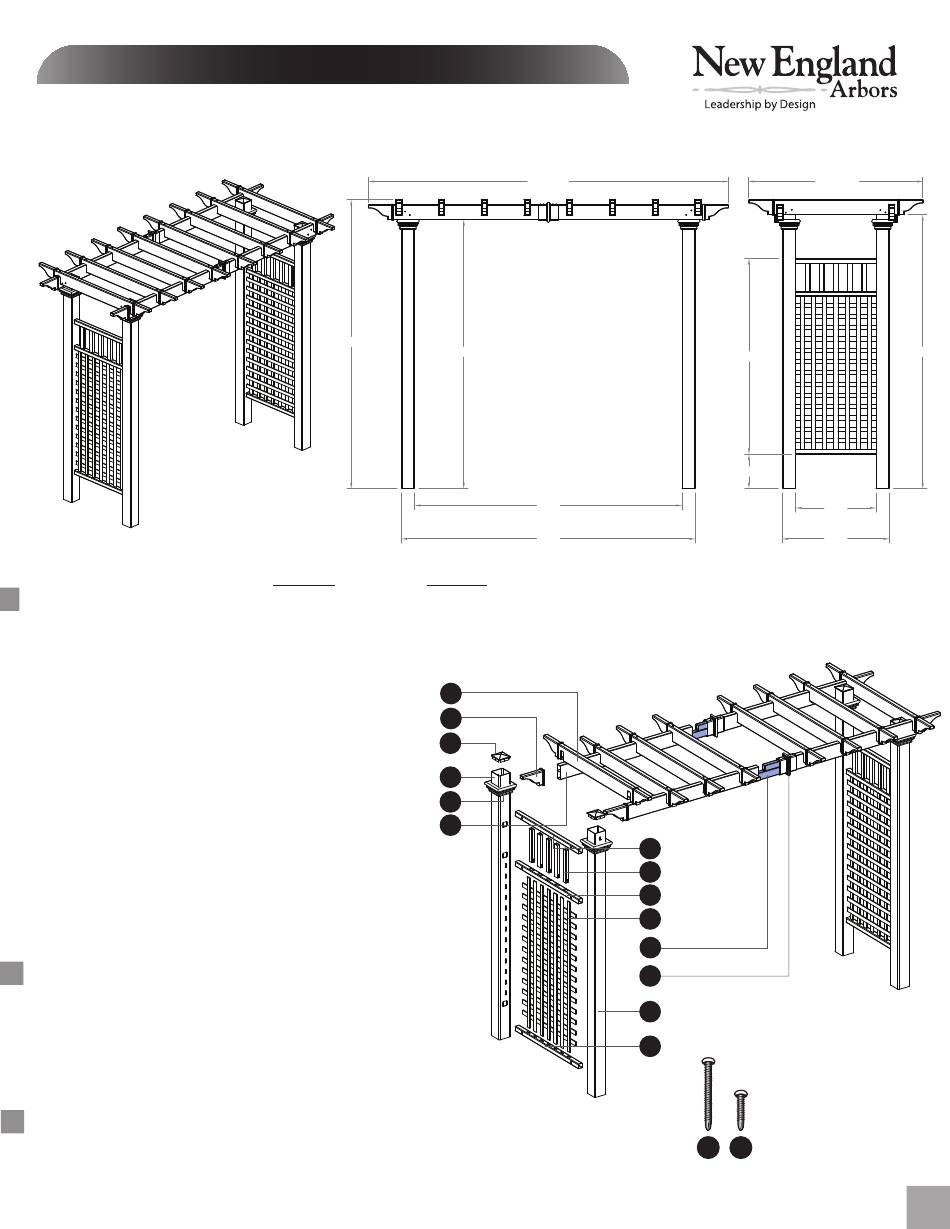

A S S E M B LY I N S T R U C T I O N S

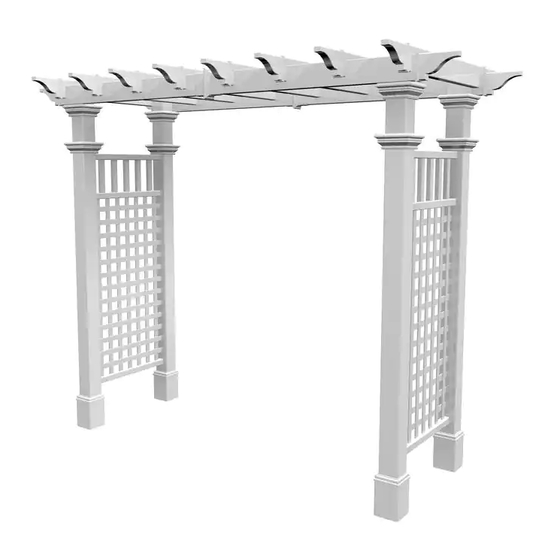

Fairfield Grande Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Rafters (8) Length 38" (96.5 cm) -
2. Pergola End Caps (20) -
10700-1
3. Post Caps (4) -
10824
4. Right Posts (2) Length 84" (213 cm) -
5. Left Posts (2) Length 84" (213 cm) -
6. Post Trims (4) -
10737-1
7. Carrying Beams (4) Length 46 1/2" (118 cm) -
8. Side Panel Top-Rails (2) Length 31 5/8" (80 cm) -
9. Side Panel Vertical Spindles Length 10 3/8" (26 cm) -
10. Side Panel Middle Rails (2) Length 31 5/8" (80 cm) -
11. Side Panel Square Lattices (2) Length 47 3/4" (121 cm) -
12. Steel Stiffener Inserts (2) -
13. Carrying Beam Coupler (2) -
14. Side Panel Horizontal Bottom Rails (2) Length 31 5/8" (80 cm) -
15. 3 in. (76 mm.) Stainle ss Steel Screws (32) -
16. 1 1/2 in. (38 mm.) Stainless Steel Screws (12) -
17. Tube of Vinyl Glue (2) -
20000
Tools You Will Need
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill
• 1/8" x 2" (3 mm x 51 mm) Steel Drill Bit
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
86.5 in
(220 cm)
10838
10792
10821
10839
10822
10795
10823
10793
10723-1
10707-1
20007
20005
107.75 in
(274 cm)
80.5 in
(204 cm)
80 in
(203 cm)
88 in
(224 cm)
1
2
3
4
6
7
10794
www.newenglandarbors.com
www.newenglandarbors.co.uk
52.25 in
(133 cm)
58.5 in
(149 cm)
10.3 in (26 cm)
8
9
10
11
12
13
5
14
15
16
(Not to scale)
82 in
(208 cm)
24 in
(61 cm)
32 in
(81 cm)
1
V2. 4 /082217
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for New England Arbors Fairfield Grande
Summary of Contents for New England Arbors Fairfield Grande
- Page 1 A S S E M B LY I N S T R U C T I O N S Fairfield Grande Arbor / Arch www.newenglandarbors.com www.newenglandarbors.co.uk 52.25 in 107.75 in (133 cm) (274 cm) 86.5 in 80.5 in 82 in (220 cm) 58.5 in...
- Page 2 (not provided ) Repeat for secon d beam. Four holes facing up Predrilled holes facing up Pre-drill holes on bottom and top to accomodate for internal steel stiffener. Fairfield Grande Arbor / Arch...
- Page 3 Note: The middle rail will have 5 holes on one side onl y, Share the space within the middle rail for lattice and spindles. Slide the top rail over the lattice assembly. Repeat for other side panel. Fairfield Grande Arbor / Arch...
- Page 4 If you purchase d the Trim Kit (sold se parately), also slide the se cond se t of trim caps and base moldings at this point. “R” Glue and insert post caps on top of posts as illustrated on underside of post top. Fairfield Grande Arbor / Arch...
- Page 5 Note: To glue the post trims in place: 1. Slide the post trim down. 2. Apply a generous amount of vinyl glue around the post. 3. Slide the post trim back up to desired location and allow a few minutes to cure. Fairfield Grande Arbor / Arch...
- Page 6 • is located in ground conditions that are not level Consider Using: A - 4x4 Professional Post Extension Kit (30 in./76.2 cm. long), (Kit of 4) • Purchase from New England Arbors, www.newenglandarbors.com • Recommended to be installed in concrete footings • Follow instructions included with the kit 24 in.
