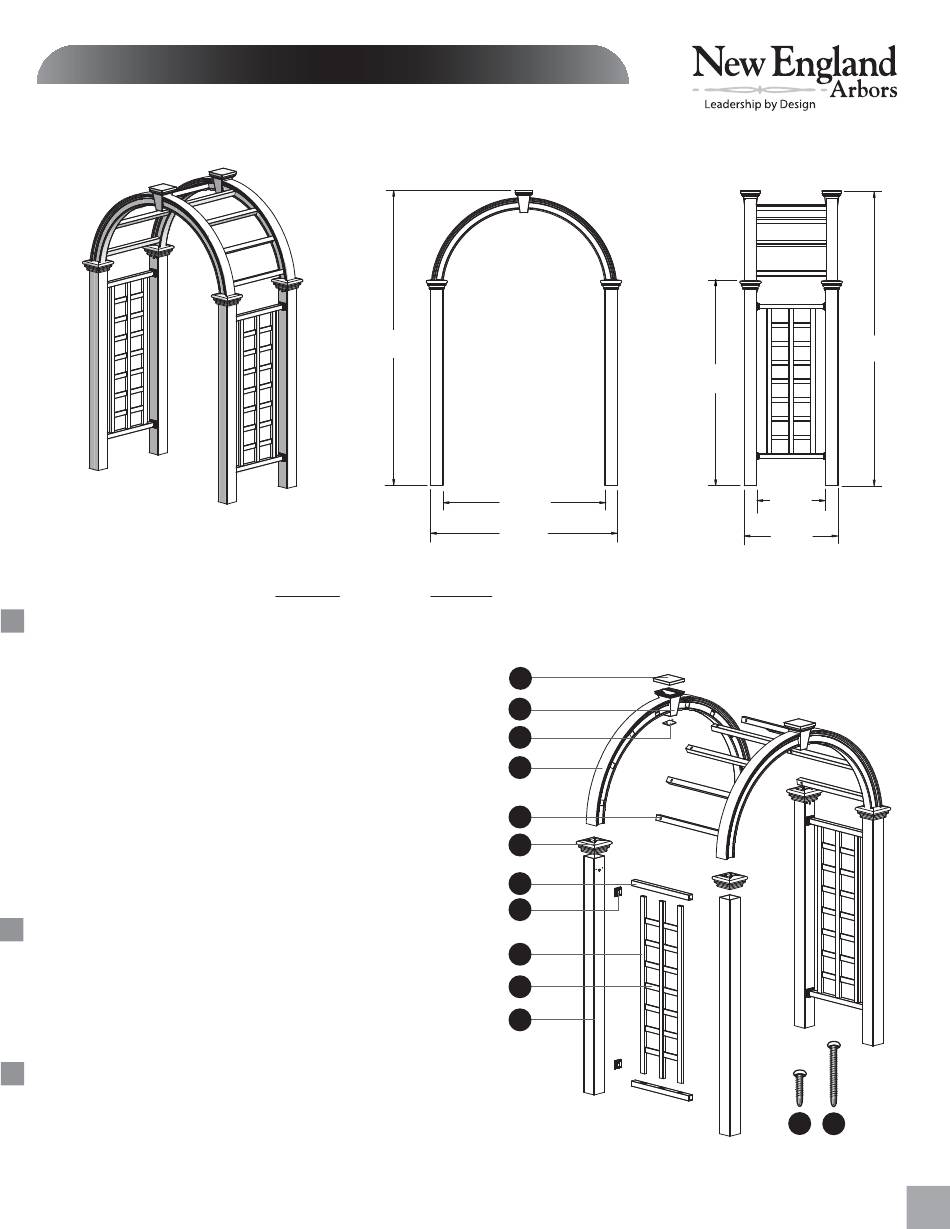

New England Arbors Nantucket Deluxe Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

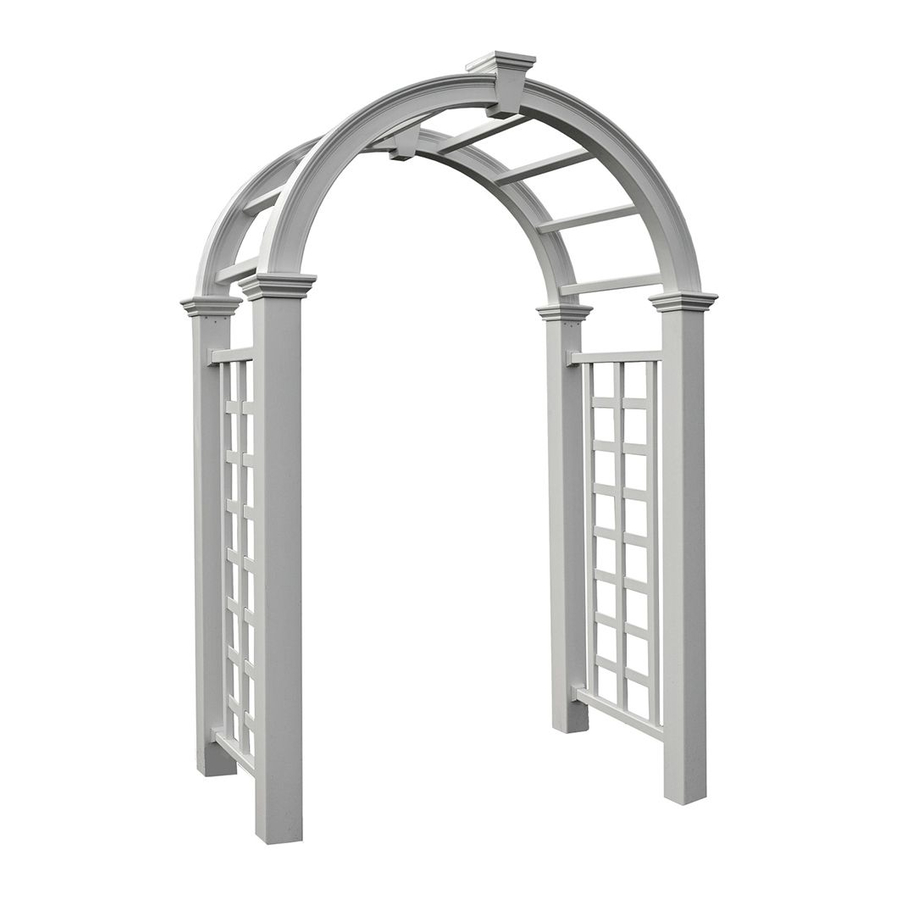

The Nantucket Deluxe Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone Top Lid (2)
2. Arch Keystones (2)
3. Keystone Bottom Plate (2)
4. Arches (4)
5. Arch Rafters (8) 1 1/2" x 1 1/2" x 27.9"
6. Post Caps (4)
7. Side Panel Horizontal Rails (4) 1 1/2" x 1 1/2" x 21.75"
8. Sur-Fit Bracket for Side Panel Horizontals (8)
9. Side Panel Vertical Spindles (6) 7/8" x 1 1/2" x 49"
10. Side Panel Horizontal Spindles (14) 1/4" x 1 1/2" x 15.25"
11. Posts (4) 4' x 4'x 65.5"
12. #8 x 1 1/2 in. (3.8 cm.) Stainless Steel Screws (for Sur-Fit Brackets) (24)
13. #8 x 2 1/2 in. (6.4 cm.) Stainless Steel Screws (for Keystone and
Arch to Post Connection) (16)

Tools You Will Need

• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
94.1 in.
239 cm.
51.8 in.
131.5 cm.
59.8 in.
151.8 cm.
1
2
3
4
5
6
7
8
9
10
11
www.newenglandarbors.com
94.1 in.
239 cm.
65.6 in.
166.7 cm.
22.0 in.
55.9 cm.
30.0 in.
76.2 cm.
12 13
(Not to scale)
Ver 3/Nov 2008
1
