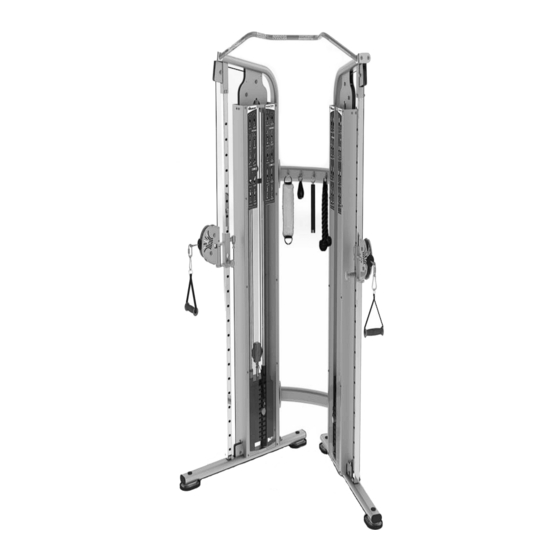

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 120 Min. ~ 120 Min. 210 kg L 158 | W 100 | H 222 SESS7141.01.02 SKU: SESS7141 Taurus Elite Functional Trainer...
- Page 2 Functional Trainer...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions (L x W x H) and weight approx: No.1: 212 cm x 68 cm x 16.5 cm 65 kg/ 143 lbs No.2: 212 cm x 68 cm x 16.5 cm 66 kg/ 146 lbs No.3 (weight plates): 50 cm x 47 cm x 41.5 cm 205 kg/ 452 lbs... -
Page 7: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 11 Carton 3-1 (left side) ITEM NO. NAME. DESCRIPTION. QTY. SHROUD SIDE PANEL 39&40 FRONT SHROUD ASSY GUIDE ROD ADJUSTMENT COLUMN WELDMENT, SIDE FRAME PULLEY HOUSING ASSY CABLE HANDLE BASE FRAME ASSEMBLY CROSS BRACE, REAR UPPER ASSY. CROSS BRACE, REAR LOWER, WELDMENT SHROUND BACKING PLATE...
- Page 12 Carton 3-2 (right side) ITEM NO. NAME. DESCRIPTION. QTY. SHROUD SIDE PANEL 79&80 FRONT SHROUD ASSY, GUIDE ROD ADJUSTMENT COLUMN WELDMENT, SIDE FRAME PULLEY HOUSING ASSY SHROUD PANEL ASSEMBLY, REAR CABLE WEIGHT STACK 50&91 BUMPER, BASE FRAME ASSEMBLY 20&60 BIG PULLEY 21&61 PULLEY SHROUND BACKING...
- Page 13 CHIN BAR WELDMENT TOP PLATE ASSEMBLY U-SHAPED PULLEY TRAVEL STOP Carton 3-3 ITEM NO. NAME. DESCRIPTION. QTY. 10lb weight stack plate...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Frames NOTICE... - Page 15 23 35 23 35 23 35 23 35...
-
Page 16: Adjustment Column
Step 2: Assembly of Adjustment Column Slide the pulley housing (43) onto the chrome adjustment column (38) on the left side in the direction as shown in the figure. Connect the upper end of the chrome adjustment column (38) to the left frame (10) by using two screws (24) and two washers (31). - Page 17 31 24 31 24...
- Page 18 Step 3: Assembly of Cross Braces and Chin-Up Bar Assemble the chin-up bar (9) between the left frame (10) and the right frame (38) by using two screws (4) on each side. NOTICE Make sure that the accessory hooks of the upper cross brace show to the front. Assemble the upper cross brace (8) between the side panels (86) by using two screws (3), two lock washers (5) and two washers (6) on each side.
- Page 20 Step 4: Assembly of Rear Shroud Panels Attach the rear shroud panel (45) and one shroud backing plate (47) on the upper side between the side panels (86) by using one screw (23) and one washer (35). Attach the rear shroud panel (45) in the middle between the side panels (86) by using one screw (31), two washers (35) and one lock nut (22).
-
Page 22: Assy
Step 5: Assembly of the Weight Plates NOTICE Make sure that the gym is in its final position and that there is enough space to perform exercises. Remove both pull pins (52) from the frame (10). Insert the guide rods (81) into the holes of the base frame (36). Attach two washers (33) and two bumpers (50) on each guide rod (81). - Page 24 Step 6: Attachment of the Weight Stack Labels Wipe the front side of the weights (in the area where the label will be attached) with isopropyl alcohol. Let it dry completely before proceeding. NOTICE The weight stack label contains both LB and KG designations for each plate. Note that the designations on the label for each plate are the pull resistance at the handle and NOT the weight of the individual weight plates.
- Page 25 Step 7: Assembly of the Cable Assemble the cable as shown in the figure.
- Page 26 Step 8: Assembly of Pulleys Assemble one pulley (21) in the base frame pulley housing (36) by using one screw (26), two washers (32) and one lock nut (34). Insert one pulley (21) and the pulley travel stop (44) into the top plate pulley housing (49). Assemble the pulley (21) and the pulley travel stop (44) by using one screw (27), two washers (32) and one lock nut (34).
- Page 28 Step 9: Assembly of Front Shroud Panels Assemble the left panel of the right front shroud (79) and the right panel of the right front shroud (80) to the shroud backing plate (47) on the upper side by using two screws (63) and two washers (75).
-
Page 30: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 31: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 32: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 33: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 34: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Cable gym Model Name: Elite Functional Trainer SKU: SESS7141... -
Page 35: Parts List
Parts List Name Specification Qty. B1005 #2450-8 5/16" SNAP HOOK ,ZINC B111OA HANDLE , NYLON STRAP, WITH LOGO C-445 HH SCREW, 3/8"-16 , 1" C-659ZP FH SCREW, 3/8"-1 6, 1-1/4", ZP, LOCK PATCH C-749 WASHER, LOCK , 3/8", ZP C-754C WASHER, FLAT, 3/8"... - Page 36 FS100-CBLOOOX CABLE ASSEMBLY FS100-CLM001 CHROME ADJUSTMENT COLUMN FS100-FSLLOX FRONT SHROUD ASSY, LEFT SIDE FRAME, LEFT PANEL FS100-FSLROX FRONT SHROUD ASSY, LEFT SIDE FRAME, RIGHT PANEL FSl00-GDR00l GUIDE ROD FS100-MFROOO WELDMENT, SIDE FRAME FS100-PHOOOX PULLEY HOUSING ASSEMBLY, LEFT FSl00-PH0l 1 U-SHAPED PULLEY TRAVEL STOP FS100-RSHOOOX SHROUD PANEL ASSEMBLY, REAR FS100-SHDOOl...
- Page 37 FS100-BFR000X BASE FRAME ASSEMBLY FS100-CBL000X ASSY, CABLE FS100-CLM00 l CHROME ADJUSTMENT COLUMN FS100-FSRL0X FRONT SHROUD ASSY, RIGHT SIDE FRAME, LEFT PANEL FS100-FSRR0X FRONT SHROUD ASSY, RIGHT SIDE FRAME, RIGHT PANEL FS100-GDR00l GUIDE ROD FS100-MFR000 WELDMENT, SIDE FRAME FS100-PH0 l l U-SHAPED PULLEY TRAVEL STOP FS100-PH l 00X PULLEY HOUSING ASSEMBLY, RIGHT...
-
Page 38: Exploded Drawing
Exploded Drawing Functional Trainer... - Page 39 ARTS IAGRAMS...
- Page 40 ARTS IAGRAMS Functional Trainer...
-
Page 41: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 42 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 43: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 44 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 45 Notes...
- Page 46 Notes Functional Trainer...
- Page 48 Taurus Elite Functional Trainer...
