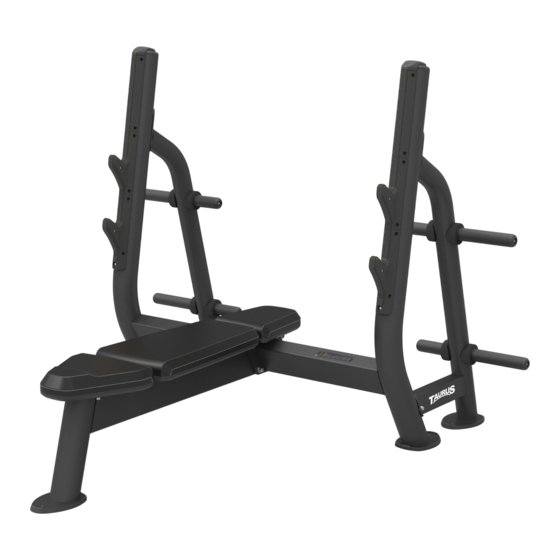

- Page 1 Assembly and Operating Instructions max. 420 kg ~ 45 Min. FSUKTFPTT0209.01.02 SKU: SEBR7007 Taurus TF TF- Elite Flat Bench...
- Page 2 Flat Bench...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Flat Bench Assembly Flat Bench Scope of Delivery Barbell Rack Assembly Barbell Rack STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES... - Page 4 Flat Bench...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Article weight (gross, incl. packaging): Nr.1 57 kg Nr.2 7.5 kg Article weight (net, without packaging): 54.5 kg Packaging dimensions (LxWxH) approx.: No.1 140 cm x 66 cm x 50 cm No.2 130 cm x 9 cm x 32 cm Set-up dimensions (LxWxH) approx.: 147 cm x 128 cm x 135.5 cm Maximum load weight:... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery Flat Bench
Scope of Delivery Flat Bench The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 13: Assembly Flat Bench
Assembly Flat Bench Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Step 2: Assembly of Seat to Backrest Cushion Frame Assemble the seat pad (25), back pad (27) and head pad (26) on the backrest cushion frame (3) by using ten screws (24), ten spring washers (20) and ten plain washers (18). Now tighten all screws.
-
Page 15: Scope Of Delivery Barbell Rack
Scope of Delivery Barbell Rack The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 16: Assembly Barbell Rack
Assembly Barbell Rack Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 17 Flat bench Name Specifi cation Qty. Barbell rack Hexagon socket button head screw M8*25 Large washer Φ24*Φ8.4*2 Spring washer...
- Page 18 Step 2: Assembly of Barbell Pipes and Protecting Jackets Push the protecting jacket (4) onto the long barbell pipe (2). Insert the long barbell pipe (2) through the barbell bushing (6) into the upper hole of the barbell rack (1). Attach the pipe plug (7) at the end of the protecting jacket (4) by using one screw (8), one spring washer (13) and one large washer (11).
-
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 20: Faults And Fault Diagnosis
Faults and Fault Diagnosis The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually suffi cient. Please refer to the following overview for the most common errors and how to correct them. -
Page 21: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. This could be a fl oor mat, for example, which makes your fi tness equipment stand more securely and also protects the fl oor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 22: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / Multi-gym Model Name: Elite Flat Bench SKU: SEBR7007... -
Page 23: Parts List Flat Bench
Parts List Flat Bench Name Specifi cation Qty. Right upright Left upright Backrest cushion frame Rubber mat Lower protecting jacket Upper protecting jacket Left hook jacket Middle hook jacket Right hook jacket Left extend jacket Middle extend jacket Right extend jacket Hexagon socket button head screw M8*30 Hex socket head cap screw... -
Page 24: Exploded Drawing Flat Bench
Exploded Drawing Flat Bench Flat Bench... -
Page 25: Parts List Barbell Rack
Parts List Barbell Rack Name Specifi cation Qty. Barbell rack Long barbell pipe Φ38*3*414 Rubber mat 203*135*17.5 Protecting jacket Φ46*Φ38*212 Protecting jacket Φ46*Φ38*114 Barbell bushing Φ76*Φ45.5*35 Pipe plug Φ46*20 Hexagon socket button head screw M6*25 Hexagon socket button head screw M8*25 Hexagon socket set screws with fl at point M6*6... -
Page 26: Exploded Drawing Barbell Rack
Exploded Drawing Barbell Rack Flat Bench... -
Page 27: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 28 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
