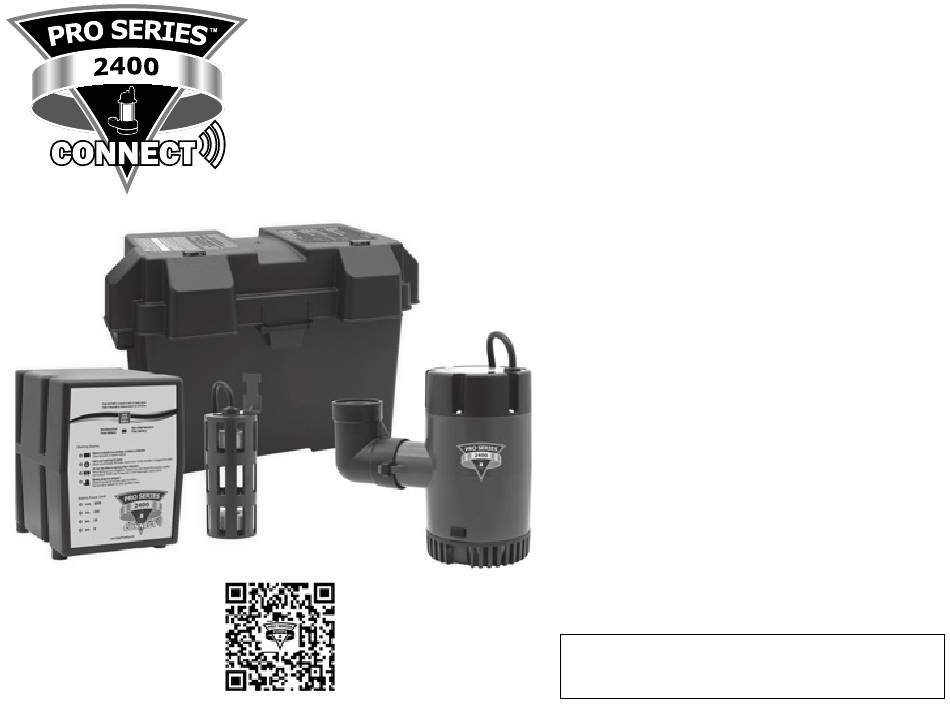

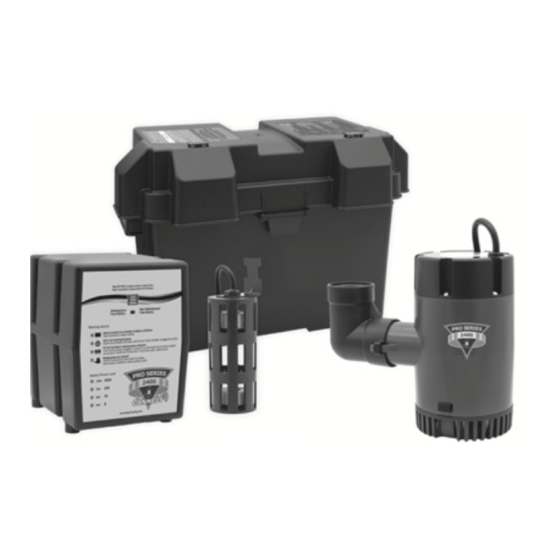

Instruction Manual & Safety Warnings
A/C-D/C Battery Backup Sump Pump System
Scan the QR code for more
information about the
PHCC-2400 Backup Sump
Pump System
Model PHCC-2400

Table of Contents

Important Safety Warnings and
Instructions
Electrical precautions
Battery preparation
Items included in system
Additional items needed
Replacement parts list
Direct discharge for narrow pits
Connection to existing discharge
for narrow pits
Positioning the float switch
Connecting two batteries
Connecting to AC power
IMPORTANT: Even if you have the Pro Series backup sump pump system
installed by someone else, you must read and follow the safety information
contained in this manual. Failure to do so could result in property damage,
serious injury, or death.
Understanding the Warning
Lights and Alarms
2
Silencing the alarm
Battery problem
2
2
Power failure
3
Pump or fuse failure
3
Pump was activated
3
Replacing the pump
3
Battery power level
Testing the System
4
5
Remote Terminal
6
Remote Alarm
7
USB Data Port
8
CONNECT Module
9
9
Technical support
9
9
Warranty
9
9
Other Products
9
10
10
10
11
11
11,12
12
12,13
13
13
13
13
13
13
14
14
14
15
16
