Specifications
Model
Discharge Max Amps
No.
HP
Volts Diameter
4
E7040-NS
/
120
2
10
4
E7040-VS
/
120
2
10
4
E7040-USC3
/
120
2
10
E7055-NS
1
/
120
2
2
1
E7055-VS
/
120
2
2
1
E7055-USC3
/
120
2
2
E7100-NS
1
120
2
E7100-VS
1
120
2
Important Safety Instructions and Warnings
SAVE THESE INSTRUCTIONS. This manual contains important SAFETY WARNINGS and
OPERATING INSTRUCTIONS for the PHCC Pro Series pumps. You will need to refer to it
before attempting any installation or maintenance.
ALWAYS keep these instructions with the unit so that they will be easily accessible.
Failure to read and follow these warnings and instructions could result in property
damage, serious injury, or death.
Risk of electric shock.
WARNING
To reduce this risk, observe the following precautions.
• ALWAYS disconnect the pump from the power source before servicing or making
adjustments.
• NEVER handle the pump or motor with wet hands or when standing on a wet or damp
surface while the pump is plugged into the power source.
• MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE AVAILABLE. This pump is
wired with a 3-prong grounded plug. To reduce the risk of electric shock, be certain
that it is only connected to a properly grounded, 3-prong receptacle (preferably with
ground fault circuit interrupt). If you have a 2-prong receptacle, have a licensed
electrician replace it with a 3-prong receptacle according to local codes and ordinances.
• NEVER bypass grounding wires or remove the ground prong from the plug.
• DO NOT use an extension cord. The electrical outlet should be within the length of the
pump's power cord, and at least 4 feet above the floor level to minimize potential
hazards from flood conditions.
• DO protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals.
Avoid kinking the cord.
• MAKE SURE the supply circuit has a fuse or circuit breaker rated to handle the power
requirements noted on the nameplate of the pump.
• NEVER install the pump in locations classified as hazardous in accordance with the
National Electrical Code, ANSI/NFPA 70.

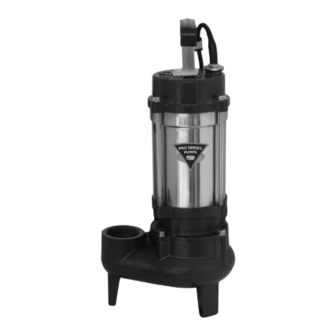

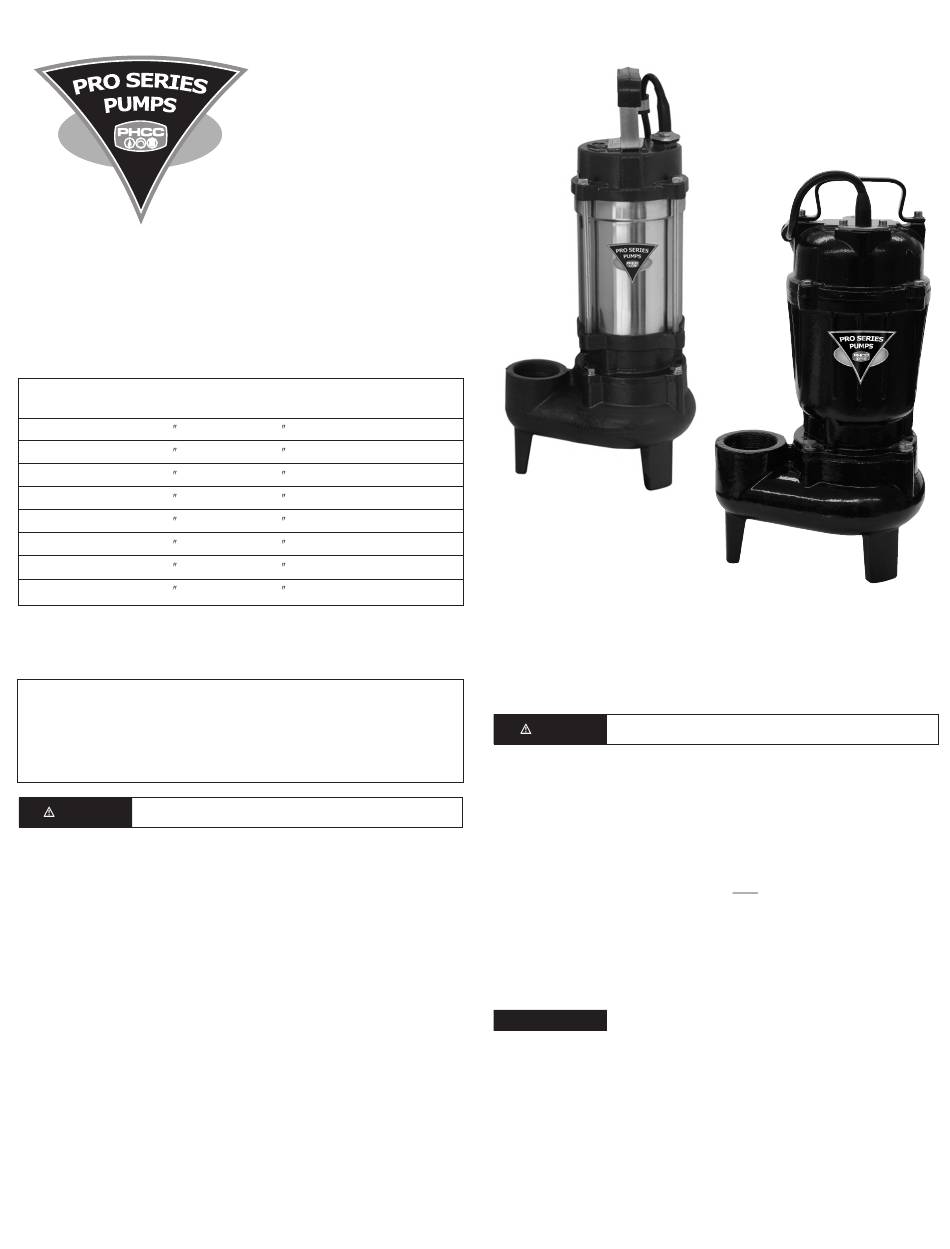

PHCC Pro Series
Sewage Pumps
Instruction Manual
& Safety Warnings
Solid
GPM / GPH
@ 10'
Handling
@ 10'
6.3
2
74 / 4440
6.3
2
74 / 4440
Vertical Switch
6.3
2
74 / 4440
Ultimate Sensor
7.0
2
89 / 5340
7.0
2
89 / 5340
Vertical Switch
7.0
2
89 / 5340
Ultimate Sensor
12.8
2
114 / 6840
12.8
2
114 / 6840
Vertical Switch
Switch
Included
No Switch
No Switch
E7040
No Switch
• DO NOT remove the power supply cord and strain relief or connect the pump directly to
the conduit.
• ALWAYS install the pump in accordance with the National Electric Code and all applicable
local codes and ordinances. All wiring should be performed by a licensed electrician.
CAUTION
• DO NOT use the power cord or strain relief to carry the pump. Use the pump handle.
• DO NOT expose the control unit to rain or snow.
• DO NOT operate the pump or control unit if it has been damaged in any way.
• DO drill an air bleed hole in the discharge pipe when a check valve is used. Drill
the hole at an upward angle from the bottom of the pit to avoid splashing water
outside the sump pit. If a hole is not drilled above the pump, an air lock may
prevent the pump from operating. The best location for the hole is about 3" above
the discharge outlet on the pump. The hole must be drilled below the check valve.
Drill a 3/16" (4.76mm) hole in the discharge pipe for the E7 Series pumps.
• DO NOT disassemble the pump or control unit. When service is required, contact
Glentronics technical support at 800-991-0466, option 3. Return the product to the
manufacturer for any repairs at the following address:
NOTICES
• Sewage pumps will not provide protection during a power outage.
• After the initial installation, be sure to check the operation by filling the pit with water
and observing the pump operation through one full cycle.
• For continuous duty operation, the pump must be submerged at least ¾ of the depth of
the pump at all times.
• In instances where the discharge line is exposed to freezing temperatures, the pipe
must be sloped downward so any remaining water will drain out. Failure to do so will
prevent water from exiting the pit and damage the pump if the line freezes.
1
To reduce the risk of hazards that can cause injury or
property damage, observe the following precautions.
Glentronics, Inc.
645 Heathrow Drive, Lincolnshire, IL 60069
E7055
