Glentronics Pro Series Operating Instructions Manual

Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.

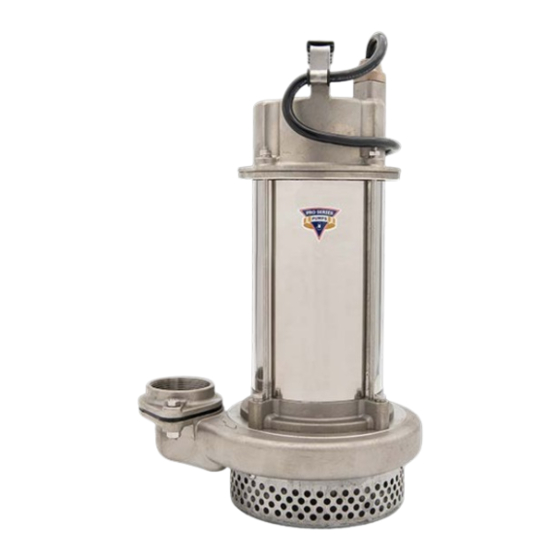

Pro Series Chemical
Resistant Pumps

Description

Pro Series submersible chemical resistant pumps are rated for continuous duty.
Pumps are strong and dependable, and when used intermittently in a sump
application, extends the life of the pump. PSC motor design saves energy,
reduces operation costs and provides better service. Intended for pumping
nonflammable fluids compatible with pump component materials.

Specifications

C8050
HP 1/2
Motor Type PSC
Voltage 60 Hz 115 V C
mps 4.7
Water Flow (GPM) at Total Feet of Head
5 Ft. 74
10 Ft. 64
15 Ft. 51
20 Ft. 40
25 Ft. 27
30 Ft. 13
35 Ft. --
40 Ft. --
Max Head 36 Ft.
Max Dia Solids 1/4"

General Safety Instructions

S VE THESE INSTRUCTIONS.
This manual contains important
S FETY W RNINGS and OPER TING
INSTRUCTIONS for the C8050 & C8100
pumps. You will need to refer to it
before attempting any installation or
maintenance.
LW YS keep these instructions with
the unit so that they will be easily
accessible.
Failure to read and follow these
warnings and instructions could result
in property damage, serious injury, or
death.
Dimensions
C8100
1 HP
PSC Pump Discharge
115 V C
Materials of Construction
Pump Housing
11.3
Impeller
90 Motor Casing
82 Inlet Screen
69 Motor Shaft
61 Mech. Seals (2)
53 Fasteners
45
Overall Dimensions
37 Length
24 Width
Height
49 Ft.
3/8" Weight (lbs.)
this risk, observe the following
precautions.
• LW YS disconnect the pump from
the power source before servicing or
making adjustments.
• NEVER handle the pump or motor
with wet hands or when standing on
a wet or damp surface while the
pump is plugged into the power
source.
• M KE SURE THERE IS
GROUNDED RECEPT CLE
V IL BLE. This pump is wired
with a 3-prong grounded plug. To
C8050 C8100
1/2 1
2" 2"
304 SS 304 SS
304 SS 304 SS
304 SS 304 SS
304 SS 304 SS
304 SS 304 SS
Carbon/Ceramic/Viton
304 SS 304 SS
9.1" 10.4"
6.3" 7.5"
16.3" 18.1"
23.0 46.0
Risk of electric
shock. To reduce
• NEVER bypass grounding wires or
PROPERLY
• DO NOT use an extension cord. The
C8050 & C8100
reduce the risk of electric shock, be
certain that it is only connected to a
properly grounded, 3-prong
receptacle (preferably with ground
fault circuit interrupt). If you have a
2-prong receptacle, have a licensed
electrician replace it with a 3-prong
receptacle according to local codes
and ordinances.
remove the ground prong from the
plug.
electrical outlet should be within the
length of the pump's power cord,
and at least 4 feet above the floor
