Glentronics Pro Series Instruction Manual & Safety Warnings

Pro Series High Cycle Float Controller
Instruction Manual & Safety Warnings
SAVE THESE INSTRUCTIONS. This manual contains important SAFETY
WARNINGS and OPERATING INSTRUCTIONS for the Pro Series High Cycle
Float Controller with dual float (DFC3) and vertical float (VSC3) switch.
You will need to refer to it before attempting any installation or
maintenance.
ALWAYS keep these instructions with the unit so that they will be
easily accessible. Failure to read and follow these warnings and
instructions could result in property damage, serious injury, or death.
Risk of electric shock. To reduce this risk,
WARNING
observe the following precautions
• ALWAYS disconnect the pump and float controller from the power
source before servicing or making adjustments.
• NEVER handle the controller, float switch, pump or motor with wet hands or
when standing on a wet or damp surface while the pump or controller is
plugged into the power source.
• MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE AVAILABLE.
This controller is wired with a 3-prong grounded plug. To reduce the risk of
electric shock, be certain that it is only connected to a properly grounded,
3-prong receptacle. If you have a 2-prong receptacle, have a licensed
electrician replace it with a 3-prong receptacle according to local codes
and ordinances.
• NEVER bypass grounding wires or remove the ground prong from the
controller.
• DO NOT use an extension cord. The electrical outlet should be within the
length of the pump's power cord, and at least 4 feet above the floor level to
minimize potential hazards from flood conditions.
• DO protect the electrical cord from sharp objects, hot surfaces, oil, and
chemicals. Avoid kinking the cord.
• MAKE SURE the supply circuit has a dedicated fuse or circuit breaker rated
to handle the power requirements noted on the nameplate of the pump.
• The maximum amperage for the High Cycle Controller is 12 Amps
To reduce the risk of hazards that can cause injury or
CAUTION
property damage, observe the following precautions
• DO NOT expose the control unit to any type of moisture, water, rain
or snow.
• DO NOT place the controller on the floor. The electrical outlet should be
within the length of the power cord and at least 4 ft above the floor
• DO NOT pull on the float switch cord
• DO NOT operate the pump, control unit or float switch if it has been
damaged in any way.
• DO NOT use the caged dual float switch with pumps in pits handling raw
sewage, salt water or hazardous liquids. This product is for ground water
applications only.
• DO NOT use the vertical float or tether float switch with pumps in pits
handling salt water or other hazardous liquids..
• DO NOT use in continuous duty applications such as fountains or ponds.
• DO NOT disassemble the pump or control unit. When service is required,
contact Glentronics technical support at 800-991-0466.
Return the product to the manufacturer for any repairs at the
following address:
Glentronics, Inc., 645 Heathrow Drive, Lincolnshire, IL 60069
• When installing or replacing a primary sump pump you should also install a
battery backup sump pump system.
NOTICES
• The control unit must receive 110-115-120V and 60 Hz from the AC outlet.
• The controller will not provide protection during a power outage. With the
risk of property damage from high water levels, the addition of a PHCC Pro
Series battery backup sump pump system is highly recommended.
• After the initial installation, be sure to check the operation by filling the sump
with water and observing the pump operation through several full cycles.

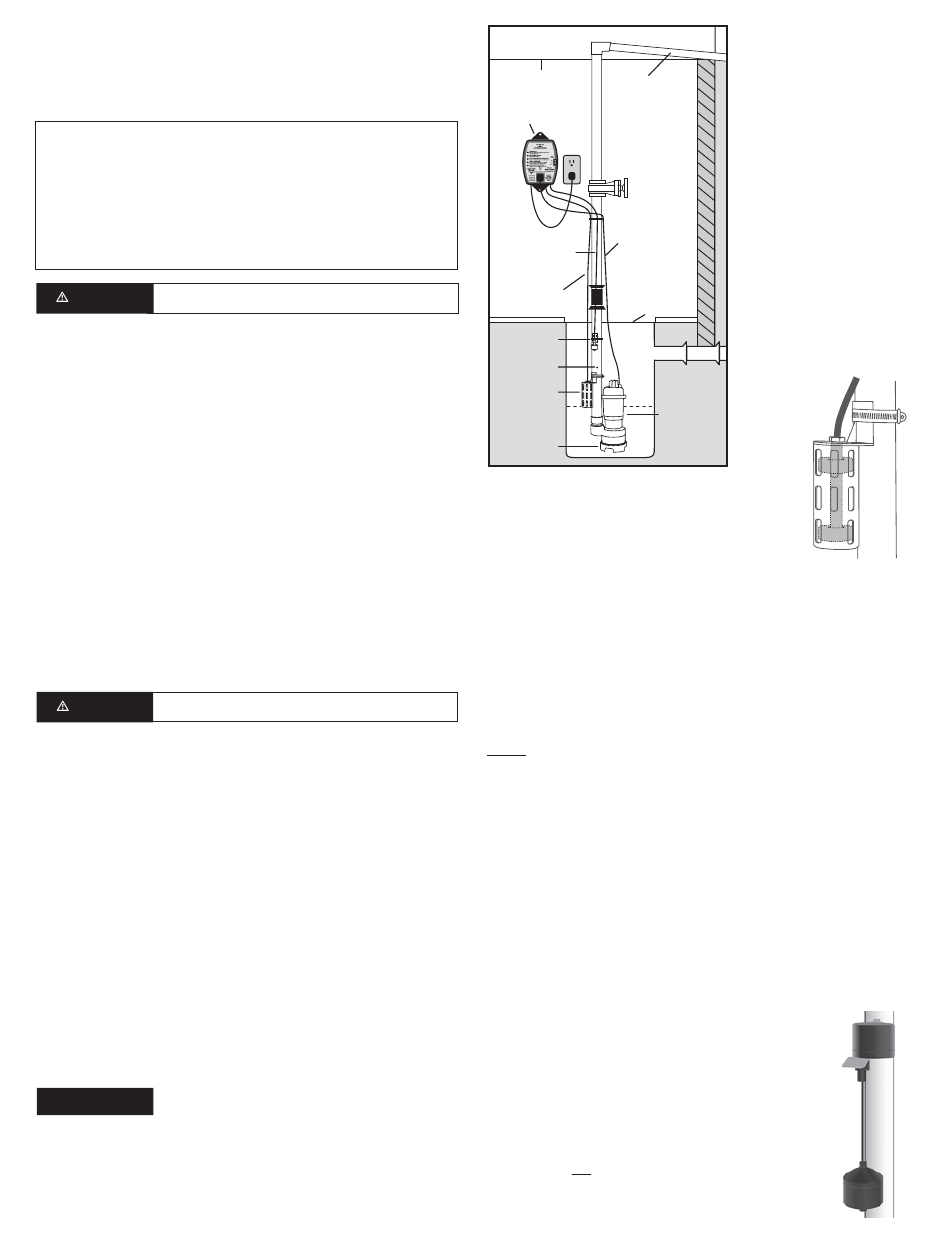

SLOPE
FLOOR JOIST
PIPE
MOUNTED HIGH CYCLE DOWN
FLOAT CONTROLLER
PLUGGED INTO
DISCHARGE
AC OUTLET
PIPE
GATE
VALVE
PUMP
WIRE
WATER SENSOR WIRE
UNION/CHECK
FLOAT WIRE
VALVE
PIT COVER
WATER SENSOR
AIR BLEED
HOLE
DUAL
FLOAT
SUMP FOOT
Dual Float Switch (Model DFC3)
The dual float switch contains two large floating rings
enclosed within a protective cage. Water will lift the
bottom float by a 1 ⁄ ", which will activate the pump.
4
If for any reason the lower float does not activate the
pump, the water will rise and activate the second switch. As the pump
evacuates the water from the pit, the floats will drop. The pump will run
for an additional 10 seconds to evacuate the pit completely after the float
drops. The float switch wire includes a connector that can be separated
from the controller when the wire needs to be threaded through small
openings. The float switch connector has a safety locking pin. This pin
will prevent the float switch from accidentally being disconnected from the
controller. To remove the pin, push the pointed end of the pin into the
float connector and pull it out from the other end. The float switch wire
can now be disconnected. Make sure to reinstall the pin after the float
switch is reconnected. Note: When mounting the float switch, position the
bottom of the cage at the height you want the pump to activate.
Installing the Dual Float
The Pro Series dual float switch is easy to install by using the enclosed
stainless steel hose clamp.
1. Hold the float switch to the discharge pipe so the cage is below the
bracket.
2. Secure the float to the pipe with the enclosed hose clamp, but do not
completely tighten the clamp at this time.
3. Position the float switch to a level where the bottom of the float cage
is no lower than 50% of the maximum height of the pump. To avoid
debris pouring onto the float, it should be positioned on the side of the
discharge pipe opposite the drain tile. Note: It is important to mount
the float below the drain tile that empties into the pit. Mounting it above
the drain tile would allow water to fill the drain tile before the pump is
activated to pump out the water.
4. Once the float switch is in the desired position, tighten
the clamp.
Vertical Float Switch (Model VSC3)
The vertical float switch contains a single large float.
Water will lift the float by a
1
pump. As the pump evacuates the water from the pit, the
float will drop. The pump will run for an additional 10
seconds to evacuate the pit completely after the float
drops. Note: There are two rubber stoppers on the float
switch rod. Do not remove or alter their position as it will
disrupt the timing of the controller and how long the pump
runs. The float switch wire includes a connector that can
be separated from the controller when the wire needs to be
1
Installation
Instructions
Prior to Installation
1. Visually inspect the
product. Products may be
damaged during shipping.
If the product has been
damaged, contact your
place of purchase or
Glentronics, Inc. before
installation.
2. Thoroughly read the
instructions provided to
learn specific details
regarding installation and
use. This manual should be
retained for future
reference.
DRAIN TILE
PRO SERIES
PUMP
⁄ ", which will activate the
2
