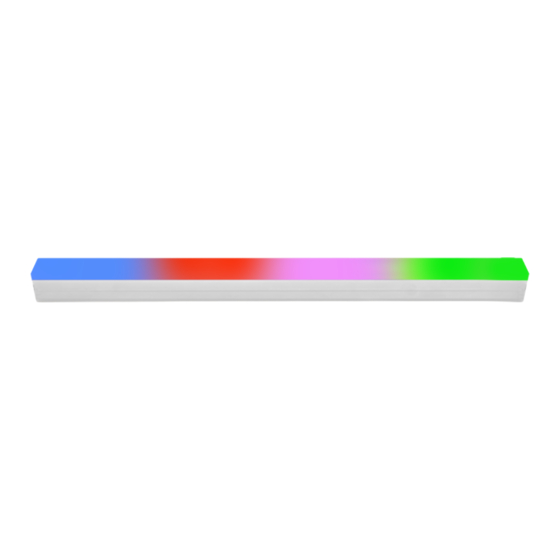

Griven Graph-i-Pix Opaline Series User Manual

Graph-i-Pix Opaline
AL6010 - AL6008 - AL6007
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Power / Potenza massima
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Led configuration / Configurazione dei led
Pixels / Pixel
Channels / Canali
Resolution / Risoluzione
Luminance / Luminanza
Optics/ Ottiche
Size / Dimensioni
200mm
7 7/8"
Graph-i-pix 30
Graph-i-pix 50
Graph-i-pix 100
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
550073 Rev.01
Date: 13/07/2023
AL6010
Graph-i-pix 30
0.22 Kg / 0,485 lb
4W RGB
5W RGBW / W / DW
RGB 3/6 channels
RGBW 4/8 channels
DW 2/4 channels
W 1/2 channels
299
11 3/4"
499
19 5/8"
999mm
39 3/8"
Tel. +39.0376.779483 © Copyright Griven 2020 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
Graph-i-pix 50
Alluminum, scratch resistant paint
-40°C to 60°C ( -40°F to 140°F)
+24 VDC ( from external PSU )
7.5W RGBW / W / DW
200 mm + 200 mm with connectors
DW FROM 1800K TO 6500K
W (2200K, 2700K, 3000K, 4000K)
1/2
RGB 3/6/12 channels
RGBW 4/8/16 channels
DW 2/4/8 channels
RGBW 1200 cd/m²
200mm
7 7/8"
.
AL6008
0.33 Kg / 0.75 lb
IK08
IP66
6W RGB
Electronic
III
USITT DMX-512
RGB
RGB+W 3000K
RGB+W 4000K
1/2/4
W 1/2/4 channels
960 Px/m2 (max)
RGB 840 cd/m²
DW 2000 cd/m²
W 2000 cd/m²
Opaline diffuser
AL6007
Graph-i-pix 100
0.65 Kg / 1.433 lb
12W RGB
15W RGBW / W / DW
1/2/4/8
RGB 3/6/12/24 channels
RGBW 4/8/16/32 channels
DW 2/4/8/16 channels
W 1/2/4/8 channels
30mm
1 1/8"
