Updated 7/24
643429.1

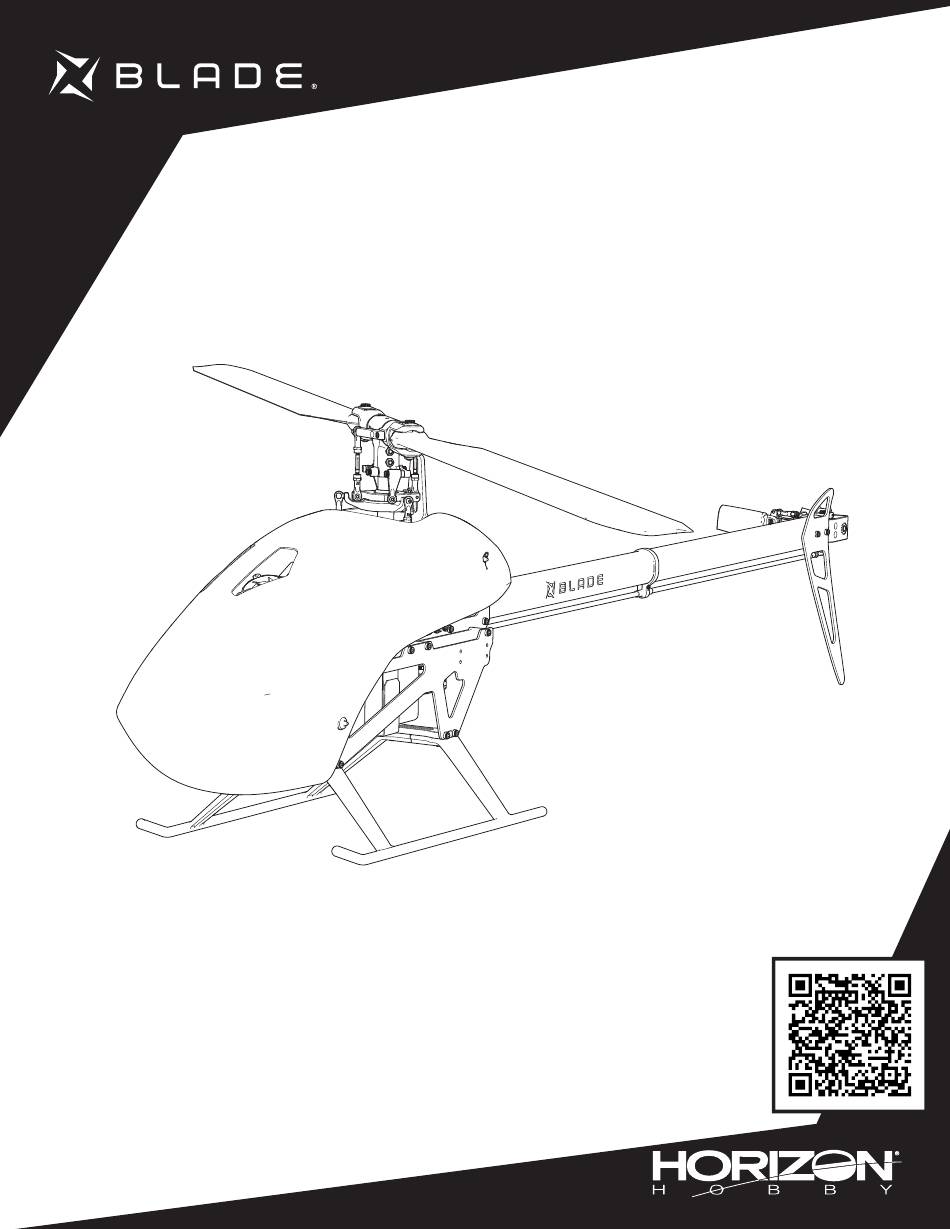

Fusion 700
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
BLH13075, BLH13075C,
BLH13075HPC
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby Blade Fusion 700
Summary of Contents for Horizon Hobby Blade Fusion 700
- Page 1 BLH13075, BLH13075C, BLH13075HPC Fusion 700 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
-
Page 2: Safety Precautions And Warnings
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. -
Page 3: Table Of Contents
Table of Contents Safety Precautions and Warnings ......2 Main Rotor (Bag H) ..........11 Postflight Checklist ..........24 Table of Contents ...........3 Tail Assembly (Bags B, M, T) ........12 Blade Tracking .............24 Components Needed to Complete ......3 Flight Controller Mounting Plate ......16 Post-Flight Inspection and Maintenance ....25 Assembly Guide Legend .........3 Main and Remote Receiver Mounting ....16... -
Page 4: Motor And Pinion Assembly (Bag M)
Motor and Pinion Assembly (Bag M) Bag M5 1. Loosely thread the M4 x 10mm motor mounting screws into place. 2. Select the pinion you want to use. Slide the pinion into place so the pinion helps align the motor on the mount. -
Page 5: Frame Bolt Locations
Frame Bolt Locations Right side; Servo mount, Upper bearing block assembly Left side; Upper bearing block assembly Inner frame brace, behind motor Canopy post Motor and pinion mount doubler Lower bearing block Motor and pinion brace assembly Holes for wire ties ESC tray Belt guide assembly Tail boom clamps... -
Page 6: Upper Frame (Bags M, H, T)
Upper Frame (Bags M, H, T) Bag M2, M7, M8 1. Install the rear canopy mounts with an M3 x 8mm screw to the left and right side of the upper frame panels. The rear canopy posts is longer than the front. -
Page 7: Upper Frame (Bags M, H, T)
Upper Frame (Bags M, H, T) Bag M1, M2 1. Install the frame braces into the ESC tray. 2. Install the motor mount assembly, ESC tray, and frame brace behind the motor. M3 x 10mm M3 x 12mm M3 x 10mm M3 x 8mm Servo Setup (Bag A,M) Bag A2, M9... -
Page 8: Servo Mounting (Bag A, M)
Servo Mounting (Bag A, M) Bag A2 Install the servos on the mounting brackets with M3 x 12 screws, M3 washer, and carbon servo mount plates. Bag M2, M9 Install the tail servo mount to the lower frame with M3 x 8mm screws and front canopy mounts to the lower frame panels. -
Page 9: Landing Gear (Bag M)
Bags M6 Mount the lower frame panels to the upper frame assembly with M3 x 30mm screws and frame washers. Landing Gear (Bag M) Bags M9 Install the landing gear mounting brackets with M3 x 8mm screws and frame washers into the lower frame. -
Page 10: Main Gear Installation (Bag M)
Bags M10 Mount the landing gear onto the landing gear mounting brackets with M3 x 12mm screws. Main Gear Installation (Bag M) Bags H2, H4, T1 1. Insert the belt through the tail boom clamps and pull the belt out through one side. 2. -
Page 11: Install Esc
Install ESC Attach the ESC to the ESC tray. Main Rotor (Bag H) 60mm Bag H1, H3 1. Secure the main rotor head to the main shaft with two M4 x 26mm main shaft bolts and nuts WITHOUT thread lock. 2. -
Page 12: Tail Assembly (Bags B, M, T)
Bag A1 1. Install the swashplate to main blade grip linkages. These should be 60mm center to center 60mm 67mm Tail Assembly (Bags B, M, T) Bag A3, B, B1 1. Slide the pushrod supports onto the boom and secure each in place with an M2 x 10mm screw. 3. - Page 13 Bag T2 M3 x 6mm 1. Install the pivot block for the tail pitch slider. The mounting screws insert from the left side of the tail case and pass through the case to install the block on the right side of the tail case. Install the tail fin and mounting screws for the tail case to secure the tail case in place.
- Page 14 Bag T3 1. Slide the tail pitch slider onto the tail shaft and align the slot for engagement with the threaded holes in the bellcrank. 2. Install the threaded pins into the bellcrank so they engage with the tail pitch slider. Bag T4 Install the tail hub on the tail shaft be securing the M4 x 4mm set screws with thread lock.
- Page 15 Belt Tension 1. Check the belt tension just behind the main gear at the rear of the side plate opening. Push inward on the belt from the side with moderate pressure. The belt should not deflect more 4mm. 2. Set the tail belt tension by pulling the boom away from the main frame, and tighten the two M3 x 8mm screws in the boom clamps.
-
Page 16: Flight Controller Mounting Plate
Flight Controller Mounting Plate Bag M7 Top view 1. Route the servo and throttle wires to the flight Install the FC6350HX controller mounting area of the frame. Small holes are with the servo ports provided in the frame side plates to allow for securing facing forward the servo wires with small plastic cable ties. -
Page 17: Battery Installation
Battery Installation 1. Apply the loop side of adhesive backed hook and loop material to the flight battery. 2. Apply the hook side to the battery plate on the side opposite the plastic battery latch. 3. Attach the flight battery to the battery plate. 4. - Page 18 2. Connect your ESC to the Flight Controller. For a Spektrum Avian Smart ESC, the throttle connector goes ino the number 2 port, and the 2-wire servo lead goes into the number 6 port on the FC6350HX as shown. IMPORTANT: If you are using an ESC without Spektrum Smart technology, 4651T referece the FC6350HX manual for the proper ESC and servo ports.
- Page 19 8. Select the Type menu. Select the 3 servo 120° swashplate option that shows the B servo connection in the Servo C Servo A rear of the swashplate. connect to the connect to the number 4 port number 1 port 9.
- Page 20 13. The AFR values provided in the previous step should be a good starting point, but we recommend verifying with a digital pitch guage on your helicopter. Place a pitch gauge on a main rotor blade, ensure the throttle stick is exactly centered and the blades are at 0°. The throttle stick needs to remain centered when setting AFR values.
-
Page 21: Control Tests
Control Tests CAUTION: You must complete the Rudder and Cyclic tests prior to attempting flight. Failure to ensure the sensor directions are not reversed can cause the helicopter to crash, resulting in property damage and injury. Rudder 1. Power on the transmitter. 2. -
Page 22: Tail Rotor Blade Installation
Tail Rotor Blade Installation Install the tail blades in the orientation shown using a 2.5mm hex driver and M3x12mm bolts and locknuts. Do not apply thread lock compound to the bolt and lock nut. Main Rotor Blade Installation Install the main rotor blades in the orientation shown using a 4mm hex driver to install the M4x30mm bolts and locknuts. -
Page 23: Settings For Avian Esc
Settings for Avian ESC We recommend the Avian 120HV or 200A ESC for your Fusion 700. The Avian may be programmed directly The cooling fan port is used to program through your transmitter or through a programming box (SPMXCA200). the ESC with the optional SPMXCA200 ESC programming box. -
Page 24: Flight Guidelines And Warnings
Consult local laws and ordinances before choosing a location to fly your aircraft. blades. Do not use wooden main blades with the Blade Fusion 700. Using wooden main blades may cause injury or property damage. Select a large, open area away from people and objects. Your first flights should CAUTION: The Blade Fusion 550 is intended for pilots with experience be outdoors in low-wind conditions. -
Page 25: Post-Flight Inspection And Maintenance
Post-Flight Inspection and Maintenance WARNING: Disconnect and remove the flight battery prior to performing any troubleshooting or maintenance. Failure to do so may cause serious injury if the motor starts unexpetedly or if the battery or ESC connections are shorted. Make sure the plastic ball link holds the control ball, but is not tight (binding) on the ball. -
Page 26: Troubleshooting Guide
Your local hobby store and/or place of purchase cannot provide warranty support any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby or service. Once assembly, setup or use of the Product has been started, you authorized service center, (v) Product not purchased from an authorized Horizon must contact your local distributor or Horizon directly. -
Page 27: Important Federal Aviation Administration (Faa) Information
Horizon Product Support productsupport@horizonhobby.com 1608 Interstate Drive United States of America (Product Technical Assistance) 800-338-4639 Champaign, IL 61822 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 D 22885 Barsbüttel, Germany... -
Page 28: Fcc Compliance Information
Compliance Information for the European Union EU Compliance Statement: EU Manufacturer of Record: Horizon Hobby, LLC Blade Fusion 700 (BLH13075): Hereby, Horizon Hobby, LLC 2904 Research Road declares that the device is in compliance with the following: EU Champaign, IL 61822 USA Radio Equipment Directive 2014/53/EU;... - Page 29 Exploded View / Explosionszeichnung / Vue éclatée / Vista esplosa...
- Page 30 Exploded View / Explosionszeichnung / Vue éclatée / Vista esplosa...
-
Page 31: Exploded View
Exploded View / Explosionszeichnung / Vue éclatée / Vista esplosa... -
Page 32: Parts List
Parts List / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # English Deutsch Français Italiano H6350 Servo mit Ultra-Drehmo- Servo cyclique HV à couple et H6350 Ultra Torque High Speed H6350 Servo HV ciclico heli ultra SPMSH6350 ment, Hochgeschwindigkeits- vitesse élevés pour hélicoptère Heli Cyclic HV Servo... - Page 33 Part # English Deutsch Français Italiano Heckrotor-Riemenscheibe 88t: Poulie de rotor d’empennage 88 Puleggia rotore di coda 88T: Fusion BLH-1691 Tail Rotor Pulley 88t: Fusion 700 Fusion 700 dents : Fusion 700 Heckrotor-Antriebsriemen: Courroie d’entraînement de rotor Cinghia di trasmissione coda: BLH-1722 Tail rotor drive belt: Fusion 700 Fusion 700...
-
Page 34: Recommended Components Raccomandati
Part # English Deutsch Français Italiano BLH-1674 Foam Blade Holder Schaumstoff-Blatthalter Porte-pales en mousse Supporto pale in schiuma Auto rotation clutch sleeve: Fusion Automatisch drehende Kupp- Manchon d’embrayage à rotation Manicotto frizione autorotazione: BLH-1681 lungsmuffe: Fusion 700 automatique : Fusion 700 Fusion 700 Schubstangenhalterung: Fusi- Support de la barre de liaison :... - Page 35 ©2024 Horizon Hobby, LLC. Blade, the Blade logo, Avian, IC5, EC5, DSM, DSM2, DSMX and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Updated 7/24 643429.1...
