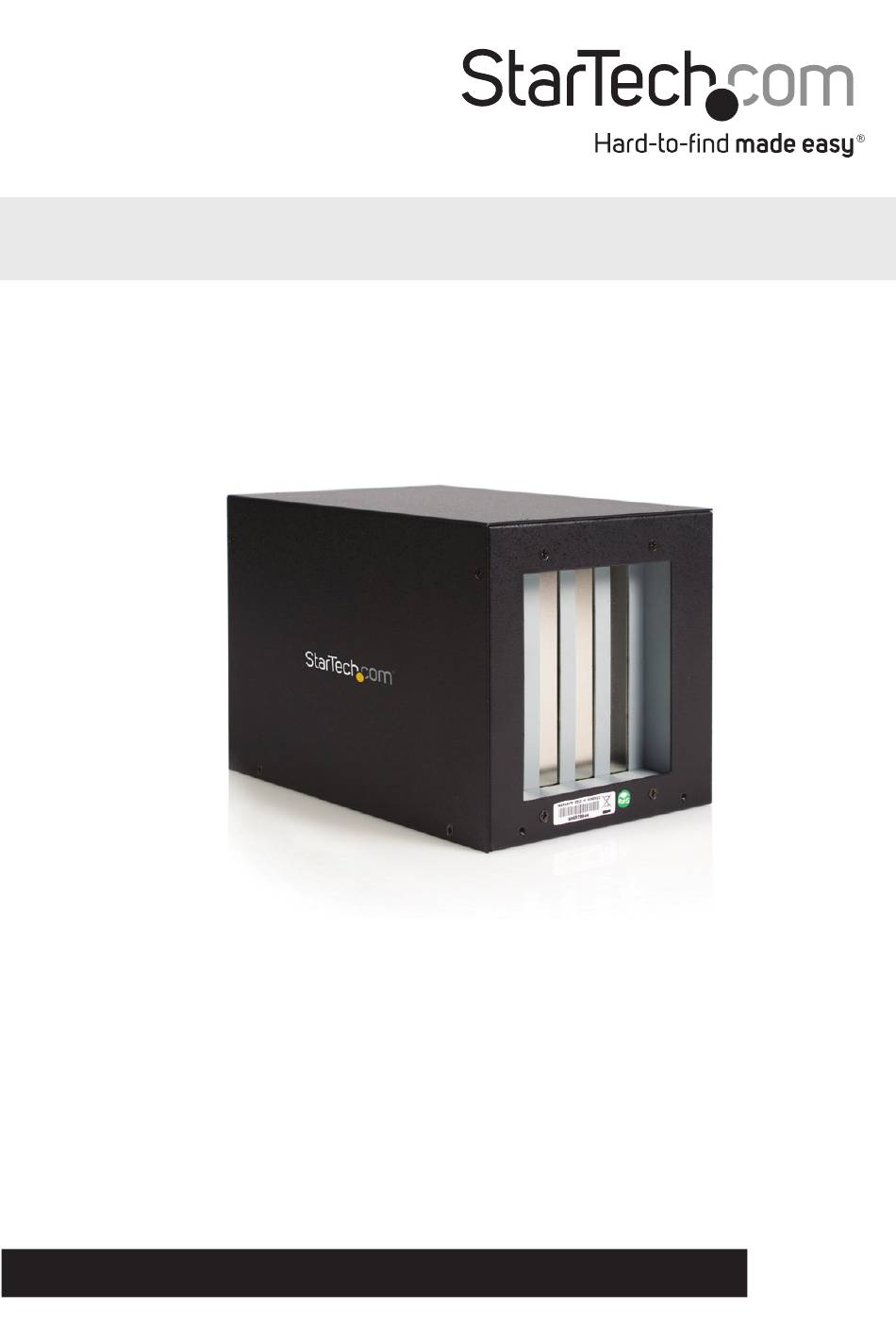

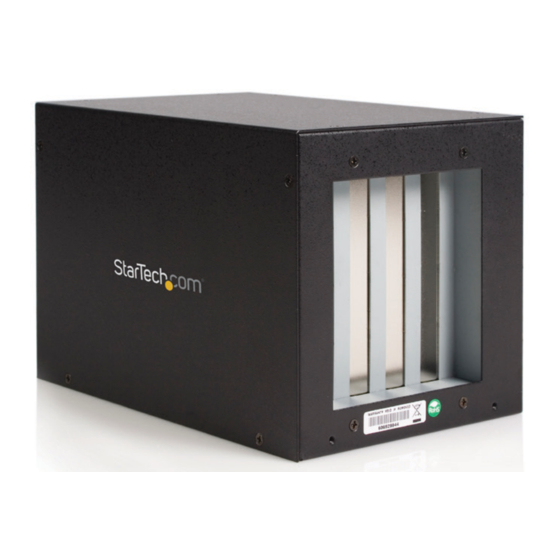

PCI Express to 4 Slot PCI Expansion System
PEX2PCI4
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/26/2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com STCPEX2PCI4
Summary of Contents for StarTech.com STCPEX2PCI4
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/26/2018...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Package Contents ......................1 Installation ..........................2 Using the PCI Express Adapter (typical) ..............2 Using the ExpressCard Host Adapter Card ..............4 Software Installation ......................5 Specifications ..........................6 EC2PCI (optional) .......................6 Accessory Products from StarTech.com ................7 Technical Support ........................8 Warranty Information ......................8 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com PCI Express to Four Slot PCI Expansion Bay. This product allows you to add PCI expandability to your computer, using an available PCI Express or ExpressCard* slot, helping to bridge the gap between older PCI expansion cards and motherboards with newer interface capabilities. -
Page 5: Installation
Installation WARNING: PEX2PCI4 uses a DVI interface to connect the the PCI Express and PCI components. When connecting the PCI expansion board to the PCI Express card, please ensure that the DVI port provided by PEX2PCI4 is not confused with a DVI port provided by the computer video card, as this could damage the video card, as well as the PCI Express expansion card and PCI expansion slot board. - Page 6 1. Turn OFF the computer power before installation, and remove the chassis cover from the computer. Similarly, ensure the PEX2PCI4 is not powered at this time. Since both the PC system and the Expansion Box are self-powered, you need to follow the correct ON/OFF sequence as follows: Power Off Sequence: Power off your PC system, then the Expansion Box Power On Sequence: Power on the Expansion Box first, then power on your PC system.
-
Page 7: Using The Expresscard Host Adapter Card
Using the ExpressCard Host Adapter Card The following diagram is a visual depiction of the instructions on the following page, which account for installation of the PEX2PCI4 using the (accessory) EC2PCI ExpressCard Adapter (must be purchased separately). 1. Turn OFF the computer power before installation. Since both the PC system and the Expansion Box are self-powered, you need to follow the correct ON/OFF sequence as follows: Power Off Sequence: Power off your PC system, then the Expansion Box... - Page 8 2. Open the top cover of the PEX2PCI4 Expansion Box by removing the screws. There are four PCI slots in the Expansion Box. Find an unused slot, remove the “blank” PCI card bracket that was pre-installed from the factory. Insert the PCI card(s) you wish to install, into the available PCI slots, then replace the top cover of the Expansion Box.
-
Page 9: Ec2Pci (Optional)
System requirements Bus Type PCI Expansion Box: Connectors 1 x DVI D (dual link) Female Connector PCI Express Card: 1 x DVI D (dual link) female connector Form Factor PCI Express (x1) Power Adapter 1 x 12V DC, 3 Amp OS Support Windows 2000/2003/XP/ Vista/7/ Mac OS X Regulatory Certifications... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
